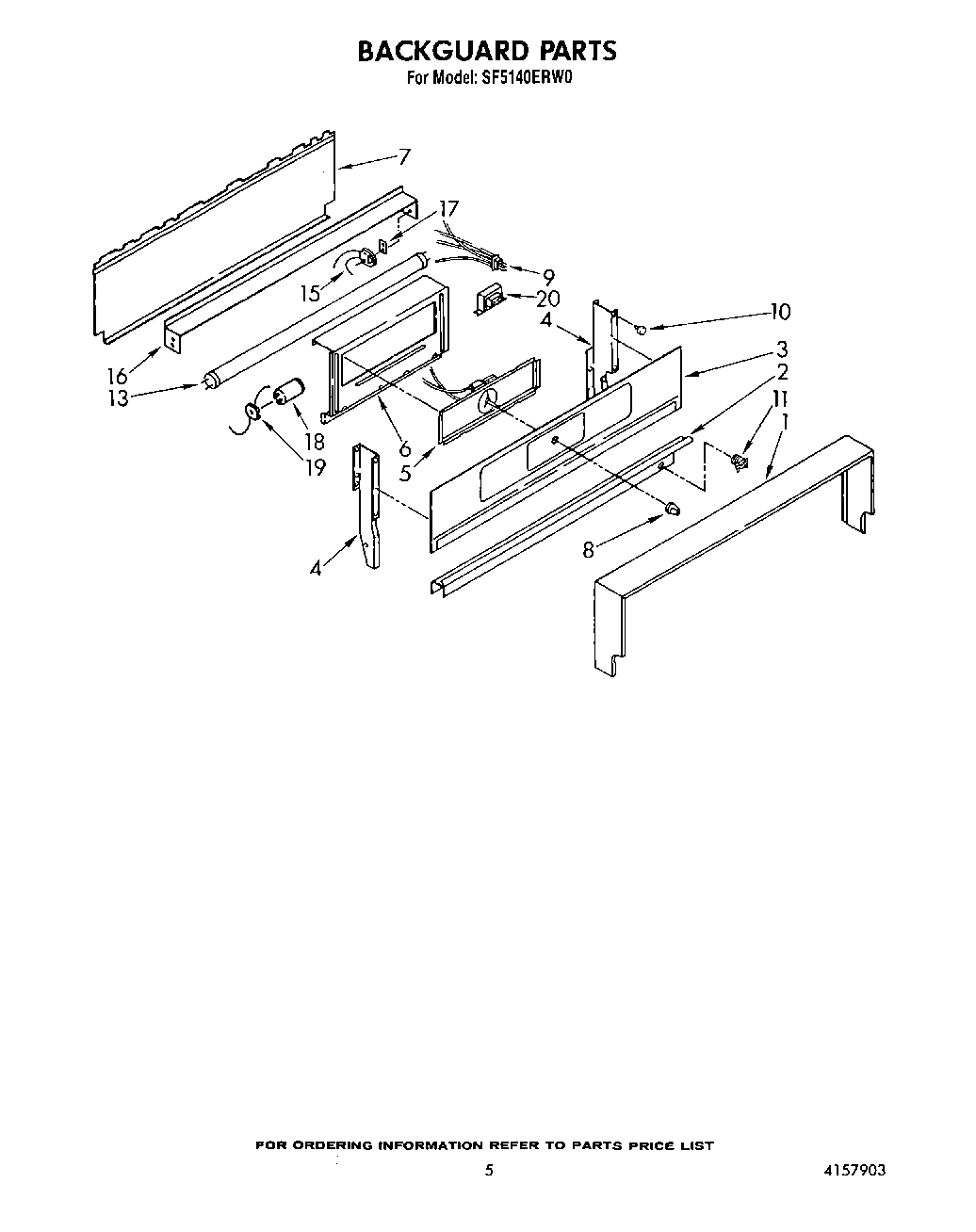

SF5140ERW0 04 – BACKGUARD

Products

Position	Product
1	Frame
2	Screw, 10-12 X 1/2 (4)
2	Bottom, Backguard
3	Glass
4	Support, Backguard (Left Hand)
4	Support, Backguard (Right Hand)
4	Screw, 10-32 X 1/2 (1)
5	Clock
6	Bracket, Clock
7	Screw, 10-12 X 3/8 (2)
7	Panel, Rear
8	Knob, Clock
9	Block, Disconnect
10	Bumper, Rubber (6)
11	Strain Relief
13	Lamp, Fluorescent
15	Socket, Light (2)
16	Bracket, Support
17	Spacer, Light (4)
18	Starter, Light
19	Base, Light
20	Ballast
