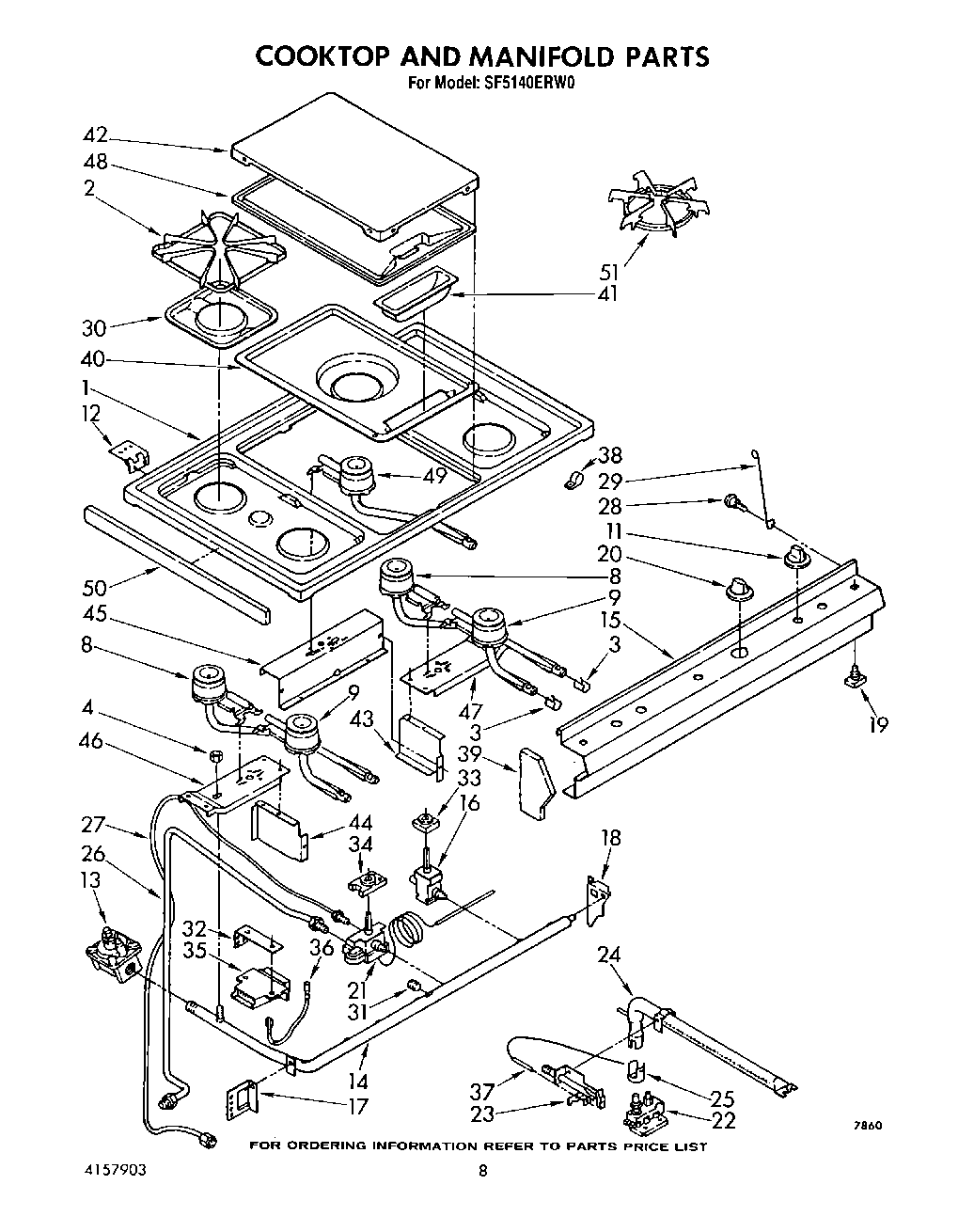

SF5140ERW0 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Guide, Cooking
	WPL LIT4157903
	WPL LIT786738
	WPL LIT786775
1	Cooktop (Toast)
1	Cooktop (Platinum)
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
11	WP4179282 Whirlpool Knob
12	Speed Clip (4)
12	Hinge, Maintop (2)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	WP786333 Whirlpool Drip Bowl
31	W10295523 Whirlpool Plug
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
34	WP878009 Whirlpool Igniter Switch
35	Module, Spark
36	Ignitor (R.H.)
36	Ignitor (R.H.)
36	Ignitor (L.H.)
37	Ignitor, Oven
38	Strain Relief
39	Endcap (L.H.)
39	Endcap (R.H.)
40	WPL 4157780
40	WPL 4157845
40	WPL 4157846
40	WPL 4157847
41	WPL 4157781
42	WPL 4157783
42	WPL 4157784
42	C
42	WPL 4157785
43	Support, Center (R.H.)
44	Support, Center (L.H.)
45	Support, Center
46	Support, Burner (L.H.)
47	Support, Burner (R.H.)
48	WPL 4157790
49	Burner, Griddle
50	WPL 4157189
51	WPW10208653 Whirlpool Insulation
51	FOIL, ALUMINUM OVEN (18“ X 25 )
51	Grate (4)
