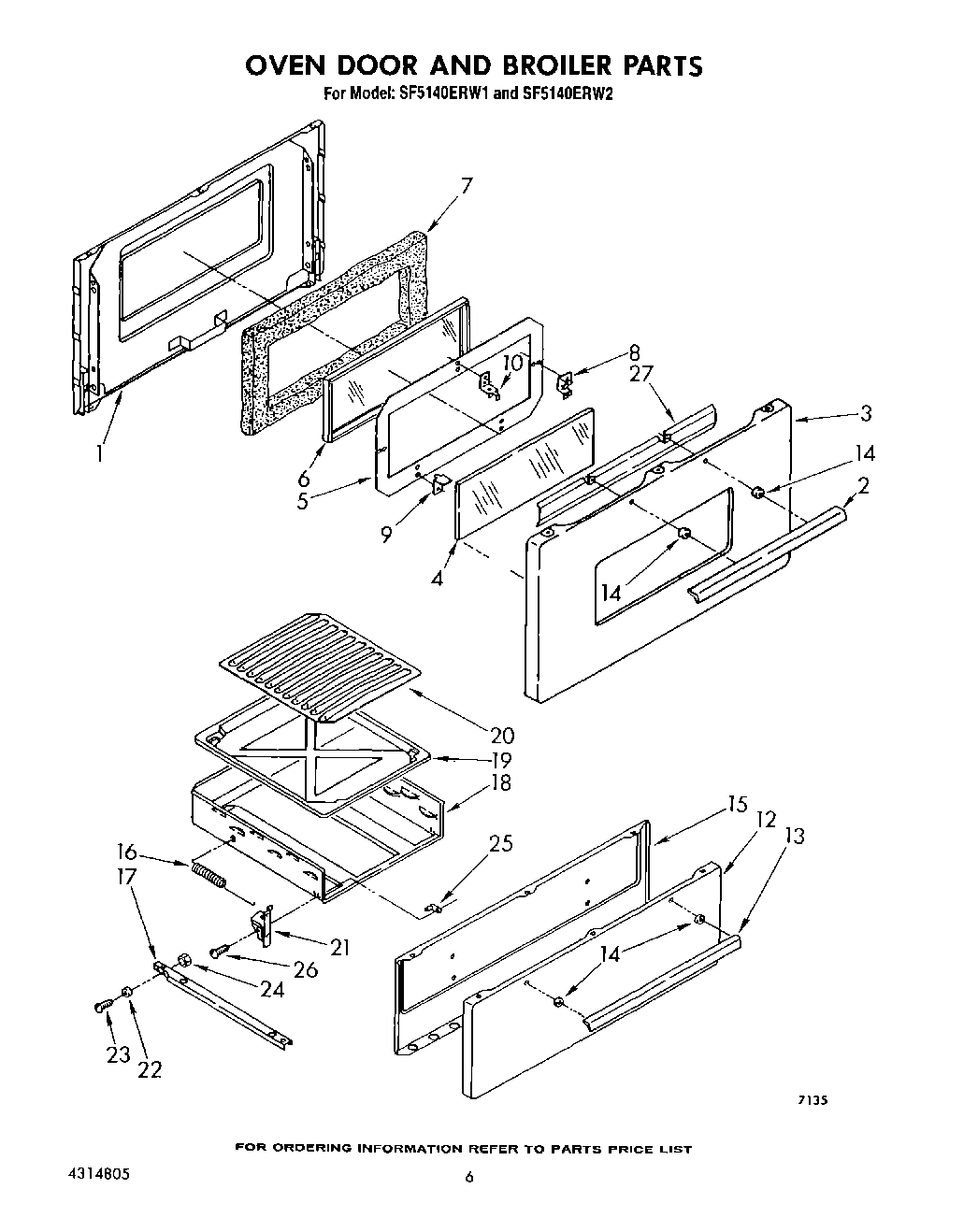

SF5140ERW1 06 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
2	Screw, 8-18 X 3/8 (4)
3	Panel, Door (Almond)
3	Panel, Door (Platinum)
3	Panel, Door (Toast)
3	Panel, Door (White)
4	Glass
5	SCREW
5	Baffle
6	Window
7	Insulation
8	Clip, Side (2)
9	Clip, Bottom (2)
10	Clip, Top
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
13	Washer (2)
13	Screw, 10-12 X 5/8 (2)
13	Handle, Door (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Liner, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door (R.H.)
21	W10080180 Whirlpool Nut
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door (L.H.)
22	Roller (2)
23	Pin, Roller (2)
25	Plate (2)
26	Screw (2)
27	Shield, Heat
