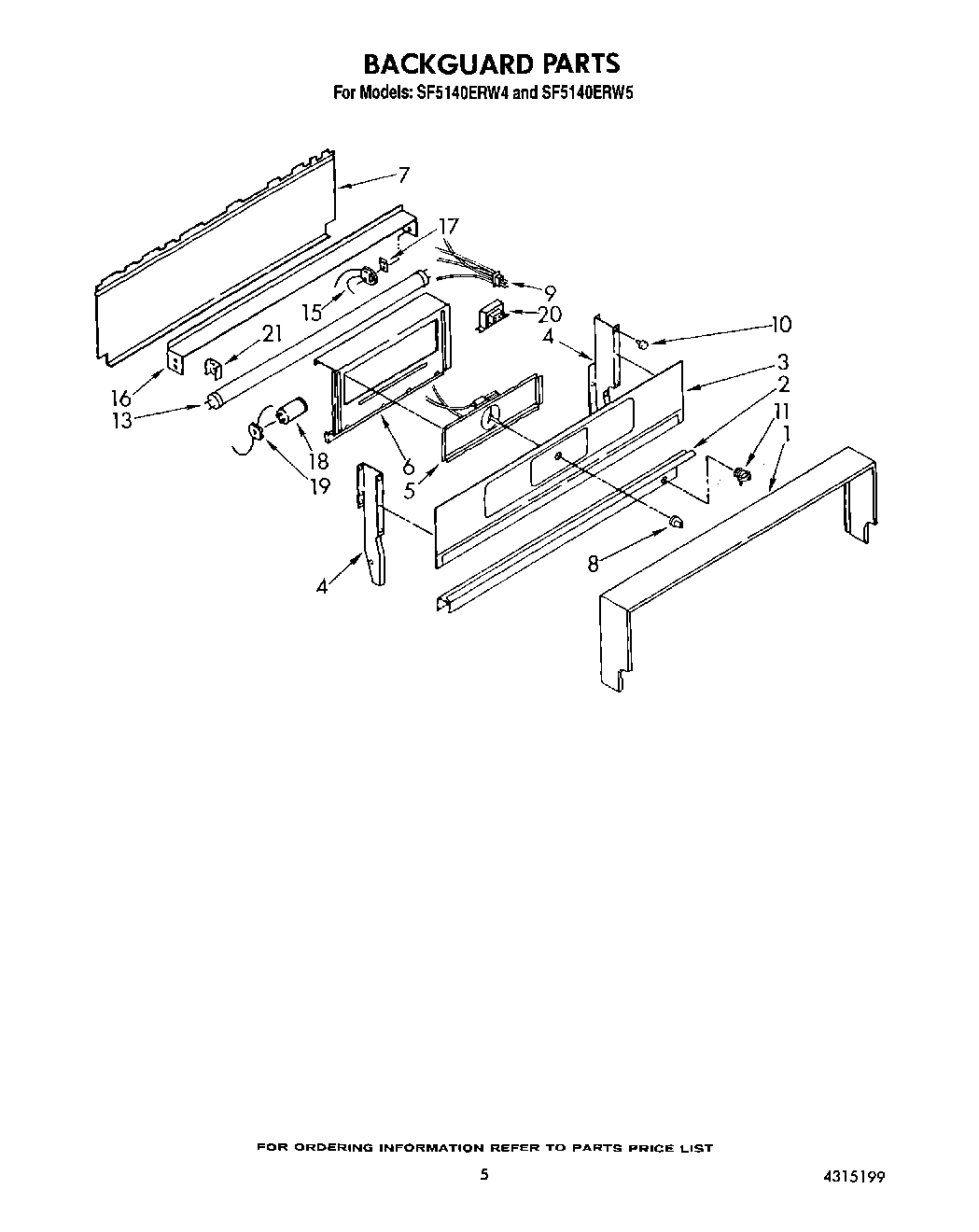

SF5140ERW4 05 – BACKGUARD

Products

Position	Product
1	Frame
2	Screw, 10-12 X 1/2 (4)
2	Bottom, Backguard
3	Glass
4	Support, Backguard (Left Hand)
4	Support, Backguard (Right Hand)
4	Screw, 10-32 X 1/2 (1)
5	Clock
6	Bracket, Clock
7	Screw, 10-12 X 3/8 (2)
7	Panel, Rear
8	Knob, Clock
9	Block, Disconnect
10	Bumper, Rubber (6)
11	Strain Relief
13	Lamp, Fluorescent
15	Socket, Light (2)
16	Bracket, Support
17	Spacer, Light (4)
18	Starter, Light
19	Base, Light
20	Ballast
21	Spacer, Light (4)
