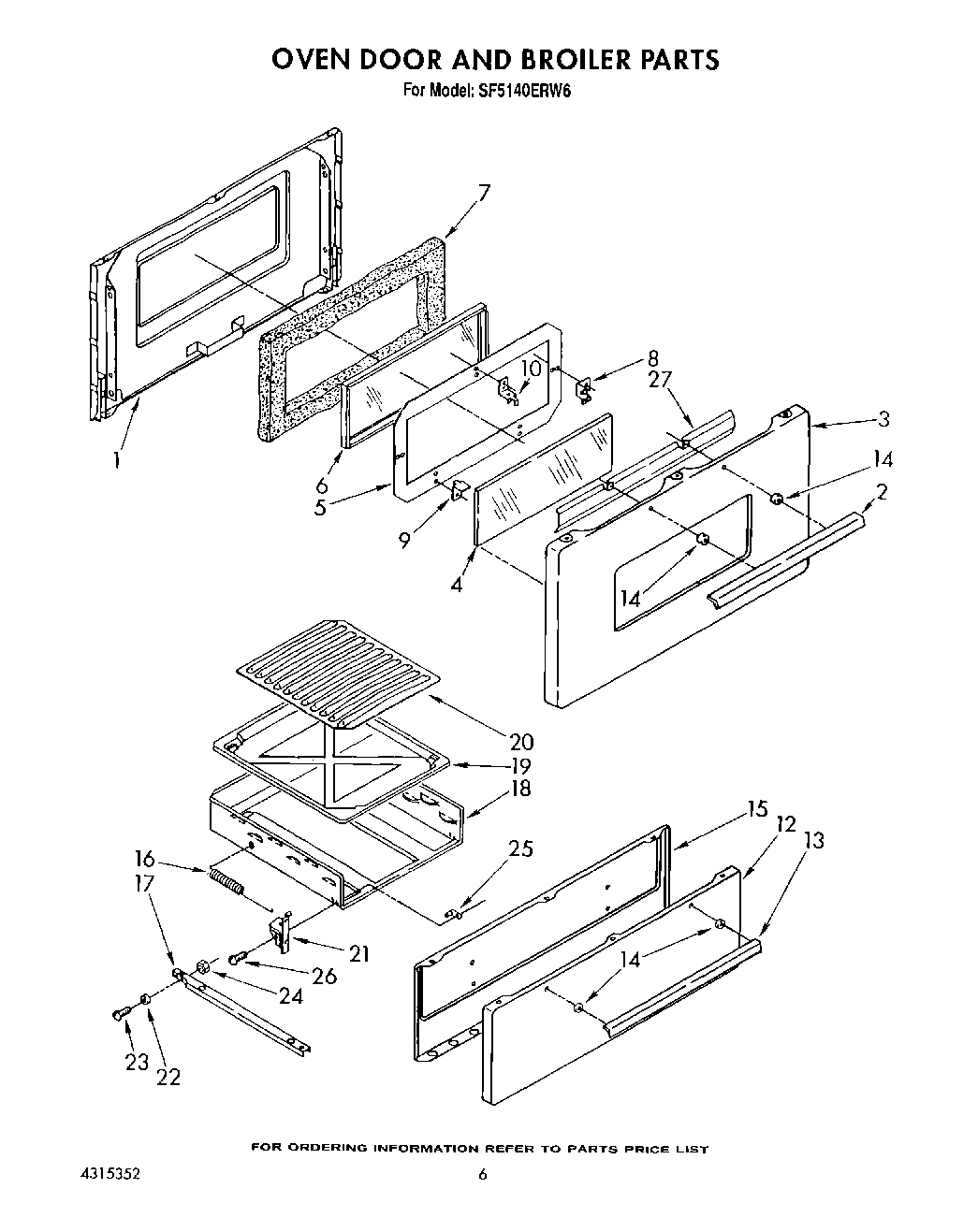

SF5140ERW6 06 – OVEN DOOR AND BROILER

SF5140ERW6 06 – OVEN DOOR AND BROILER

Written by

in

SF5140ERW6 06 – OVEN DOOR AND BROILER

Products

PositionProduct
1Liner, Door
2Screw, 8-18 X 3/8 (4)
3Panel, Door (Almond)
3Panel, Door (Platinum)
3Panel, Door (Toast)
3Panel, Door (White)
4Glass
5Baffle
5SCREW
6Window
7Insulation
8Clip, Side (2)
9Clip, Bottom (2)
10Clip, Top
12Panel, Broiler (White)
12Panel, Broiler (Almond)
13Screw, 10-12 X 5/8 (2)
13Washer (2)
13Handle, Door (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21Hinge, Door (L.H.)
21WP308685 Whirlpool Microwave Screw
21W10080180 Whirlpool Nut
21Hinge, Door (R.H.)
22Roller (2)
23Pin, Roller (2)
25Plate (2)
26Screw (2)
27Shield, Heat
