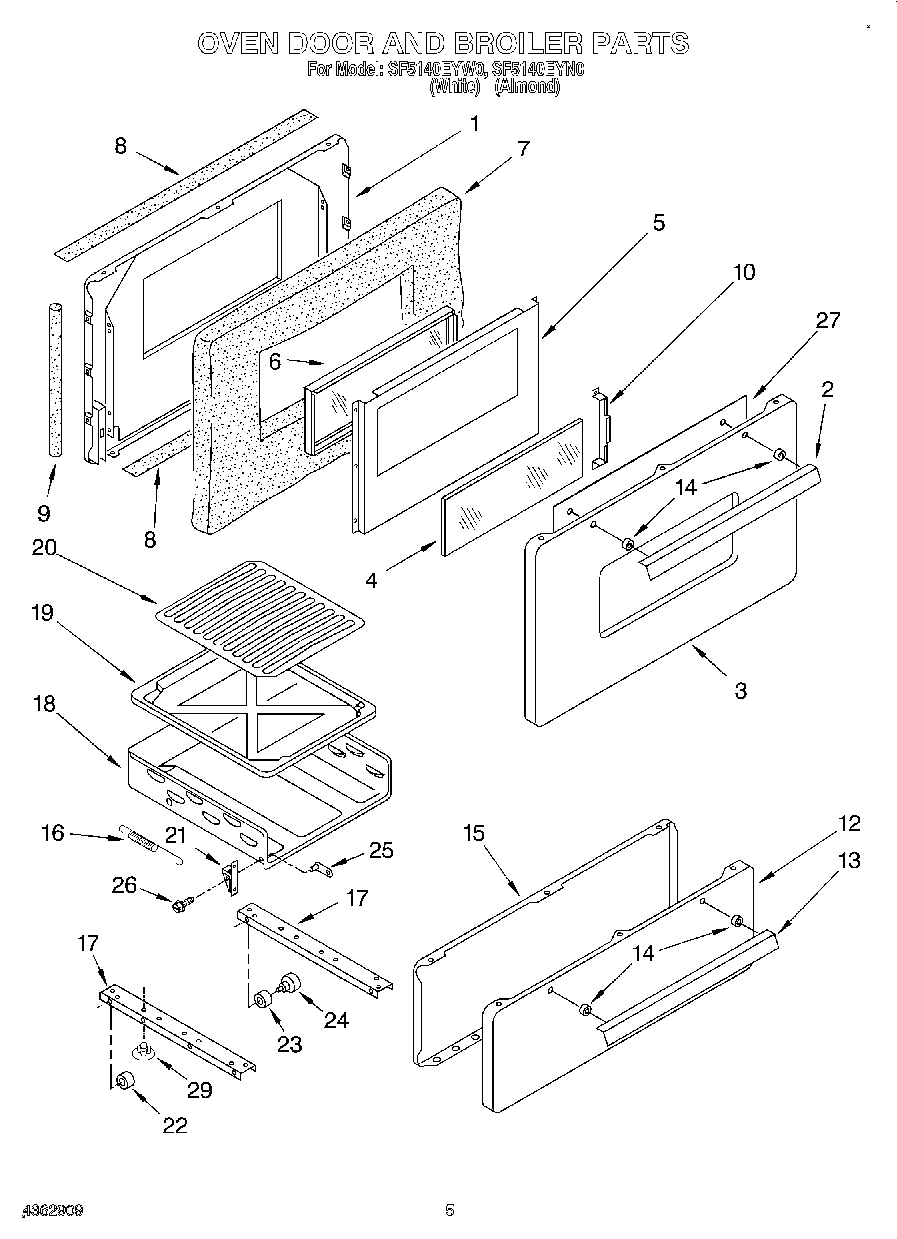

SF5140EYN0 04 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
2	Screw, 8-18 X 3/8 (4)
3	Panel, Door (White)
3	Panel, Door (Almond)
4	Window, Outer
5	SCREW
5	Baffle, Door
6	Window
7	Insulation
8	Seal, Door (Top)
9	Seal, Door (2) (Side)
10	Bracket, Window
12	Panel, Broiler (White)
12	Panel, Broiler (Almond)
13	Handle, Door (2)
13	Screw, 10-12 X 5/8 (2)
13	Washer (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Broiler (Left Hand)
17	Track, Broiler (Right Hand)
18	Liner, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door (L.H.)
21	W10080180 Whirlpool Nut
21	Hinge, Door (R.H.)
22	Bumper, Nylon (4)
23	Roller (2)
24	Pin, Roller (2)
25	Plate (2)
26	Screw (2)
27	Shield, Heat
29	Hole Plug (2)
