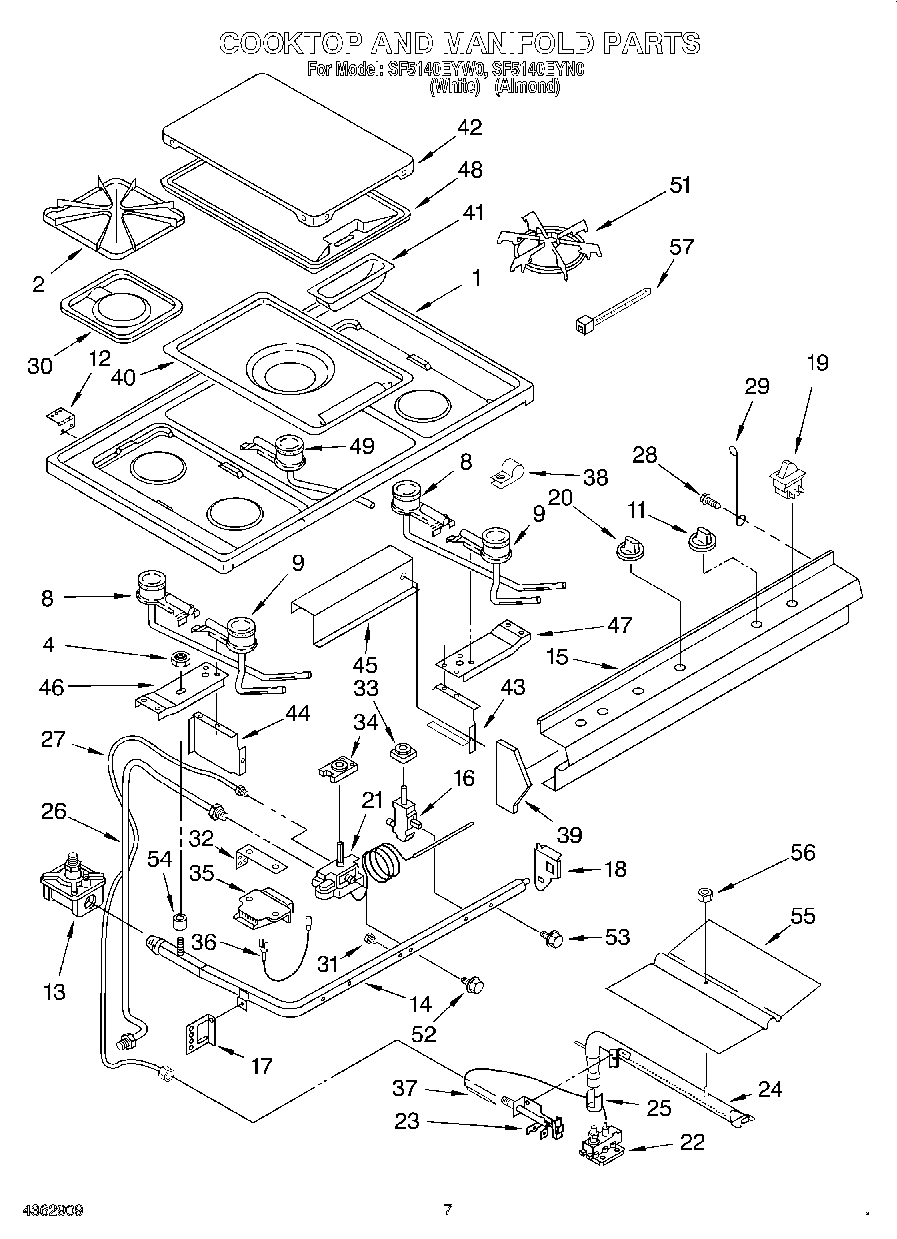

SF5140EYN0 05 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	WPL LIT4362522
	WPL LIT4362909
	WPL LIT786738
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	WP4320580 Whirlpool Knob Assembly
12	Speed Clip (4)
12	Hinge, Maintop (2)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 45)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	WPY0060872 Whirlpool Drip Pan
31	W10295523 Whirlpool Plug
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
34	WP878009 Whirlpool Igniter Switch
35	Module, Spark
36	Ignitor (L.H.)
36	Ignitor (R.H.)
36	Ignitor (L.H.)
37	Ignitor, Oven
38	Strain Relief
39	Endcap (R.H.)
39	Endcap (L.H.)
40	WPL 4157845
40	WPL 4157780
41	WPL 4157781
42	C
42	WPL 4157783
43	Support, Center (R.H.)
44	Support, Center (L.H.)
45	Support, Center
46	Support, Burner (L.H.)
47	Support, Burner (R.H.)
48	WPL 4157790
49	Burner, Griddle
51	Grate (4)
52	Bolt, Thermostat Mounting (2)
53	Bolt, Valve Mounting
54	Spacer, Manifold
55	Spreader, Flame
56	W10080180 Whirlpool Nut
57	Wire, Tie
57	WPW10208653 Whirlpool Insulation
57	FOIL, ALUMINUM OVEN (18“ X 25 )
