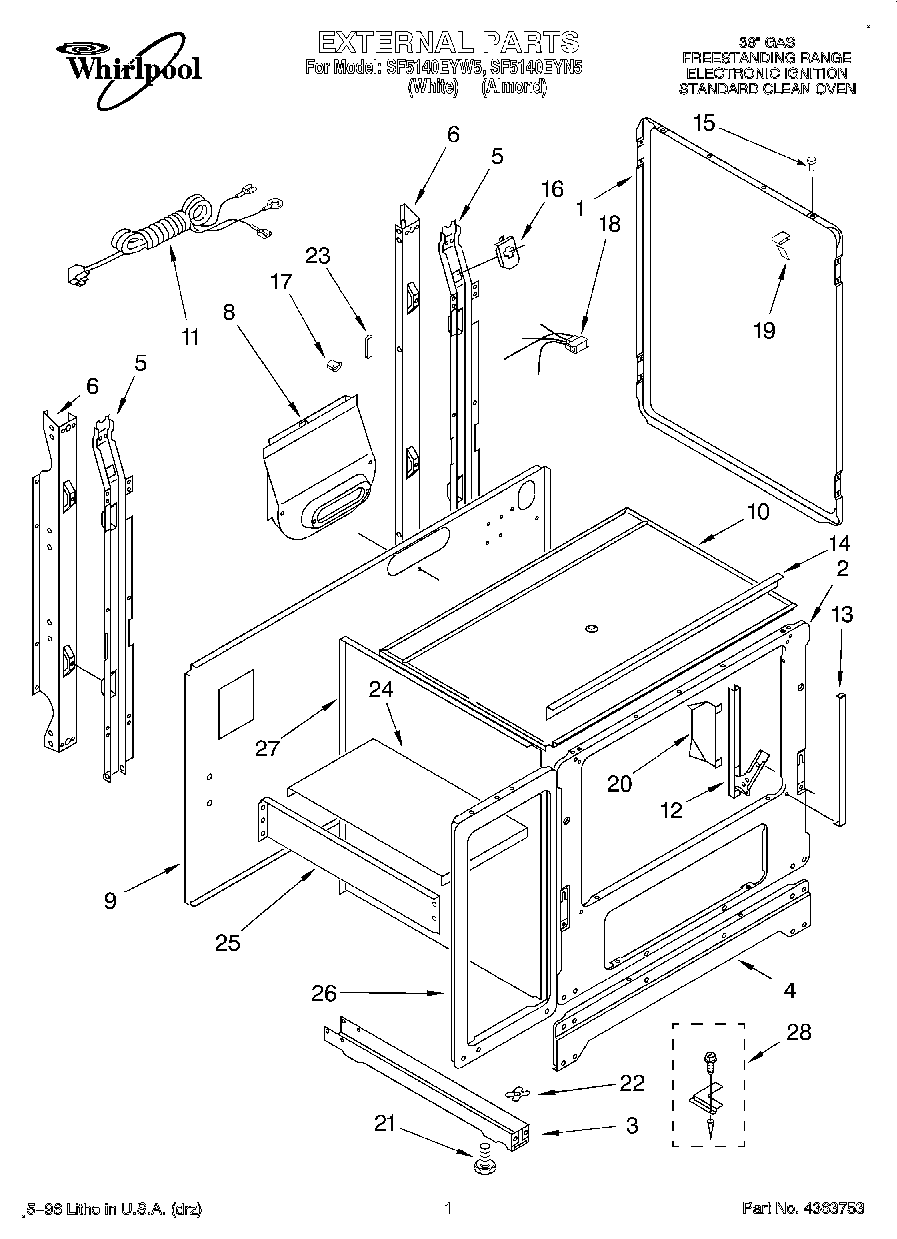

SF5140EYN5 01 – EXTERNAL

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	Support, Rear (2)
8	Box, Flue
8	SCREW
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
11	WP9757891 Whirlpool Power Cord
12	Screw, 10-24 X 3/8 (2)
12	Hinge, Door (2)
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
16	Bracket, Receptable
17	Strain Relief
18	Block, Disconnect
19	Clip, Wire
20	Shield, Insulation
21	Leg, Leveler
22	Nut (4)
23	Safe Edge
24	Shelf
25	Support, Shelf
26	Frame, Front (Compartment)
27	Panel (Compartment)
28	Anti-Tip Kit
