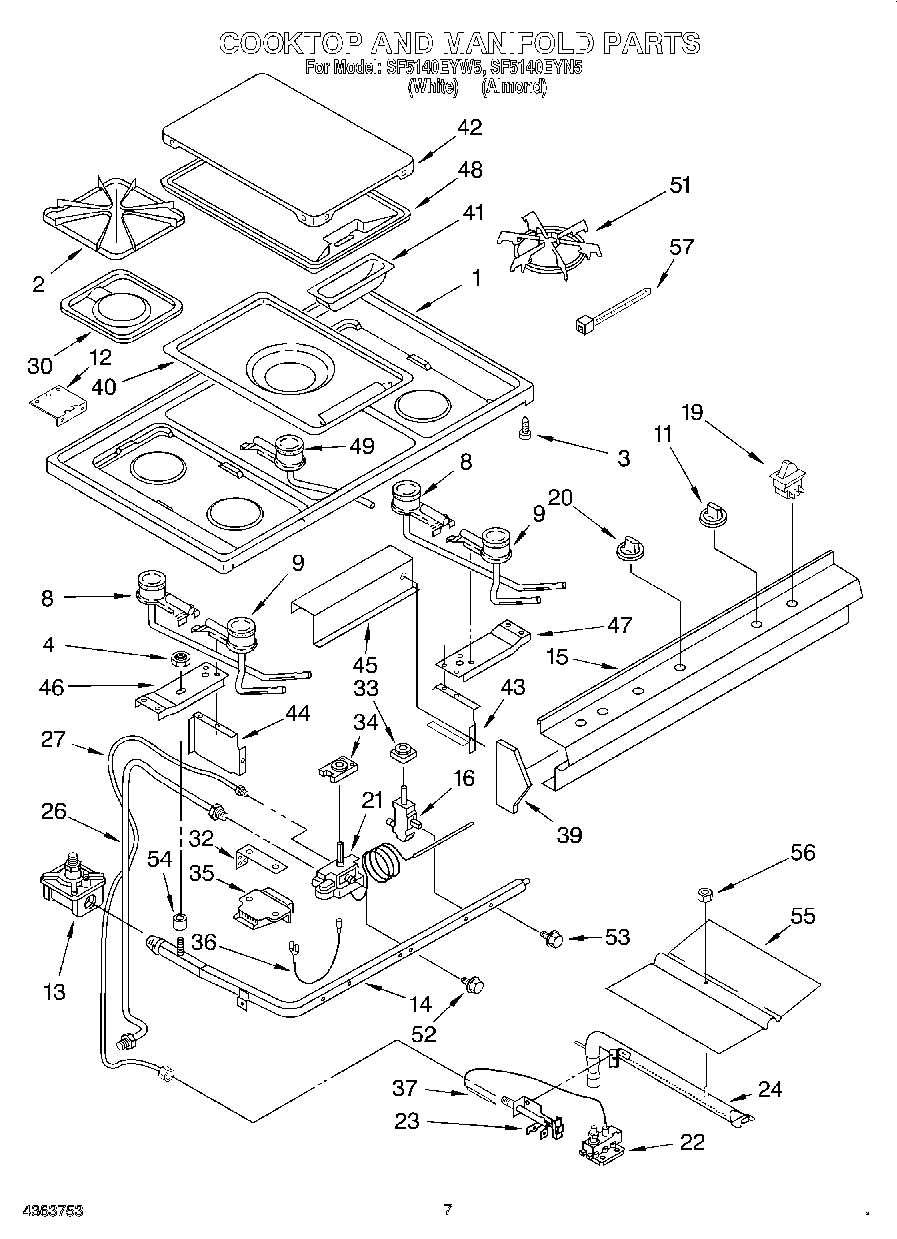

SF5140EYN5 05 – COOKTOP AND MANIFOLD

Products

Position	Product
	WPL LIT4362951
	WPL LIT786738
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Locator stud (2)
3	Stud Screw (2)
4	Nut, Hex
8	Burner, Rear (2)
8	Screw, 10-12 X 3/8 (2)
9	Screw
9	Burner, Front (2)
11	WP4320580 Whirlpool Knob Assembly
12	Hinge, Cooktop
13	Regulator, Pressure
14	WP308685 Whirlpool Microwave Screw
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
19	Switch, Oven Light
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
30	WPY0060872 Whirlpool Drip Pan
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
34	WP878009 Whirlpool Igniter Switch
35	Module, Spark
36	Ignitor (R.H.)
36	Ignitor (L.H.)
36	Ignitor (L.H.)
37	Ignitor, Oven
39	Endcap (Screw)
39	Endcap (L.H.)
39	Endcap (R.H.)
40	WPL 4157845
40	WPL 4157780
41	Cup, Grease
42	C
42	WPL 4157783
43	Support, Center (R.H.)
44	Support, Center (L.H.
45	Support, Center
46	Support, Burner (L.H.)
47	Support, Burner (R.H.)
48	WPL 4157790
49	WPL 4363109
51	Grate (4)
52	Bolt, Thermostat Mounting (2)
53	Bolt, Valve Mounting
54	Spacer, Manifold
55	Spreader, Flame
56	W10080180 Whirlpool Nut
57	FOIL, ALUMINUM OVEN (18“ X 25 )
57	WPW10208653 Whirlpool Insulation
57	Wire, Tie
