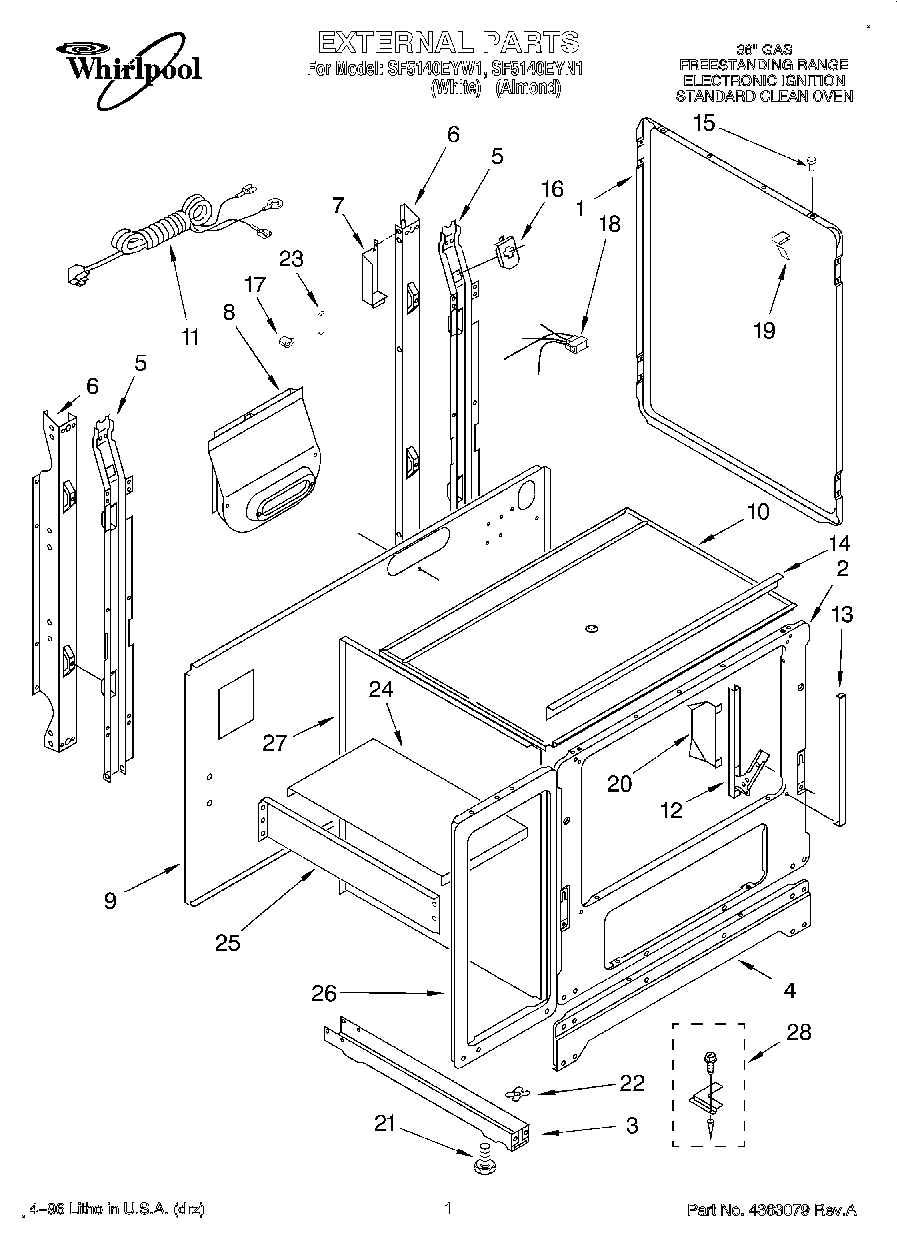

SF5140EYW1 01 – EXTERNAL

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
7	Cover, Wire
7	Screw, 10-12 X 3/8 (2)
8	Box, Flue
8	SCREW
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
11	WP9757891 Whirlpool Power Cord
12	Hinge, Door (2)
12	Screw, 10-24 X 3/8 (2)
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
16	Bracket, Receptable
17	Strain Relief
18	Block, Disconnect
19	Clip, Wire
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Shelf
25	Support, Shelf
26	Frame, Front (Compartment)
27	Panel (Compartment)
28	Anti-Tip Kit
