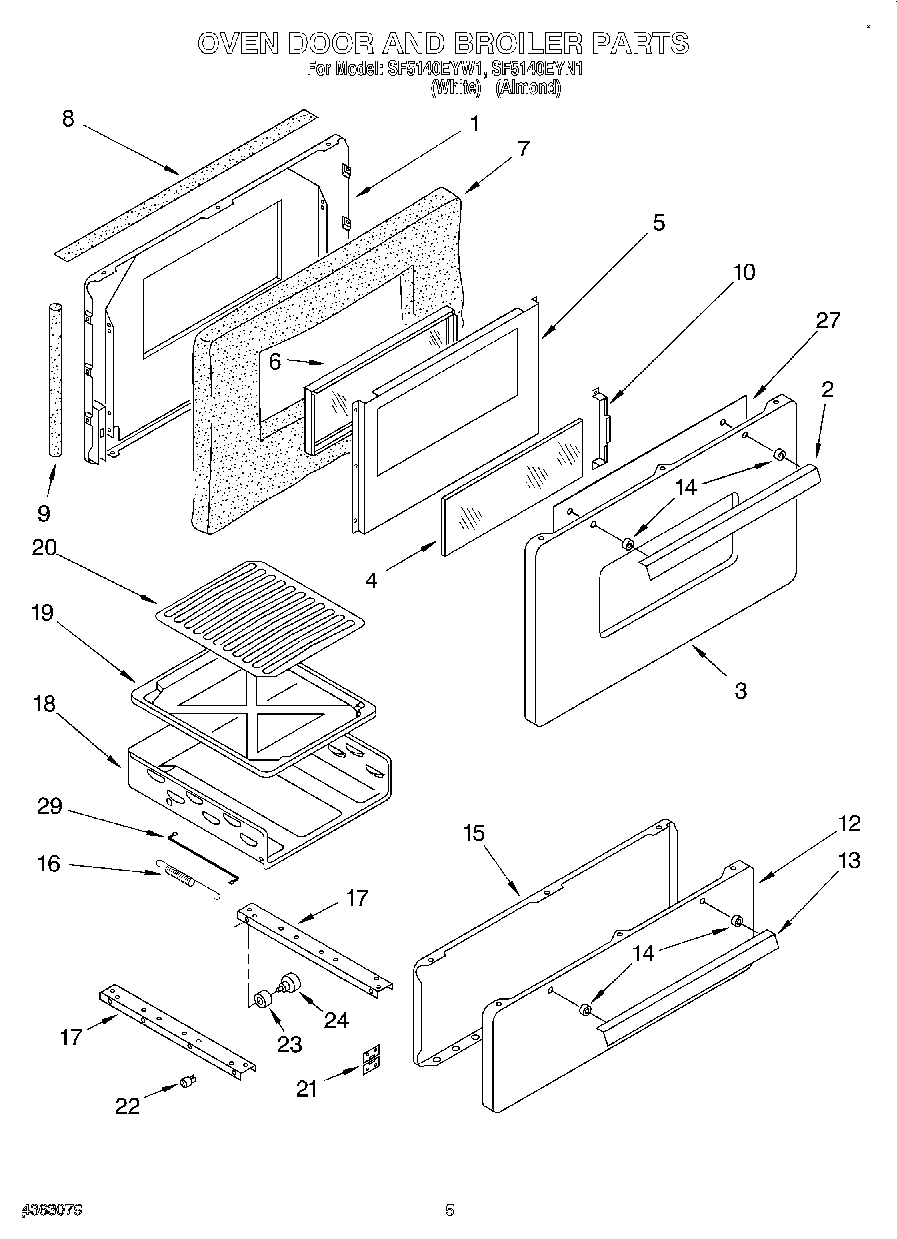

SF5140EYW1 04 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
2	Handle, Door (2)
2	Screw, 8-18 X 3/8 (4)
3	Panel, Door (White)
3	Panel, Door (Almond)
4	Window, Outer
5	SCREW
5	Baffle, Door
6	Window
7	WPW10208653 Whirlpool Insulation
8	Seal, Door (Top)
9	Seal, Door (2) (Side)
10	Bracket, Window
12	Panel, Broiler (White)
12	Panel, Broiler (Almond)
13	Washer (2)
13	Screw, 10-12 X 5/8 (2)
13	Handle, Broiler Door
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Broiler (Right Hand)
17	Track, Broiler (Left Hand)
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	W10080180 Whirlpool Nut
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door
22	W10709871 Whirlpool Drawer Glide
23	Roller (2)
24	Roller Pin (2)
27	Shield, Heat
29	Rod, Push-Pull
