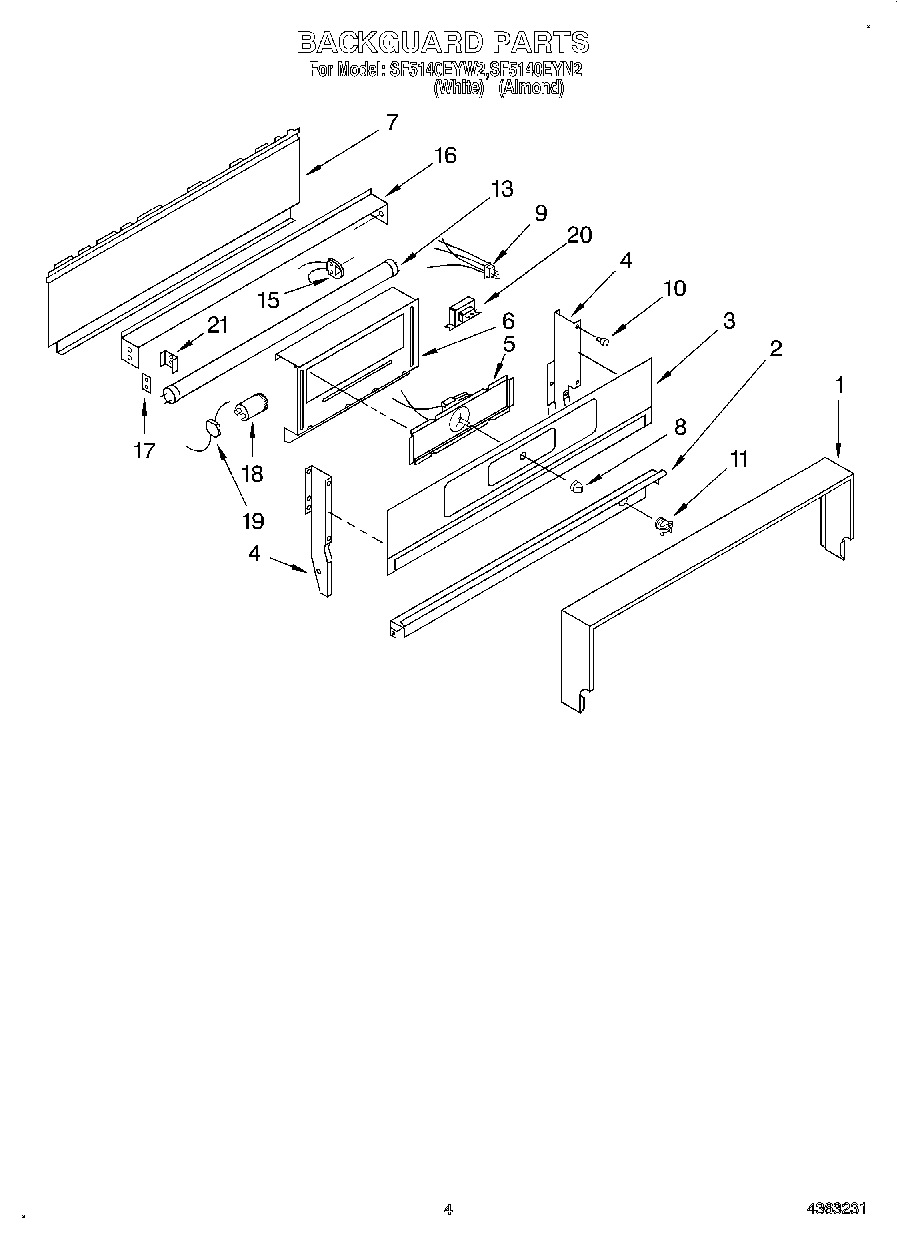

SF5140EYW2 03 – BACKGUARD

Products

Position	Product
1	Screw, 10-12 X 3/8 (2)
1	Frame
2	Bottom, Backguard
2	Screw, 10-12 x 1/2 (4)
3	Glass
4	Screw, 10-32 X 1/2 (1)
4	Support, Backguard (Right Hand)
4	Support, Backguard (Left Hand)
5	Clock
6	Bracket, Clock
7	Panel, Rear
8	Knob, Clock
9	Block, Disconnect
10	Bumper, Rubber (6)
11	Strain Relief
13	Lamp, Fluorescent
15	Socket, Light (2)
16	Bracket, Support
16	Screw
17	Spacer, Light (4)
18	Starter, Light
19	Base, Light
20	Ballast
21	Spacer, Light (4)
