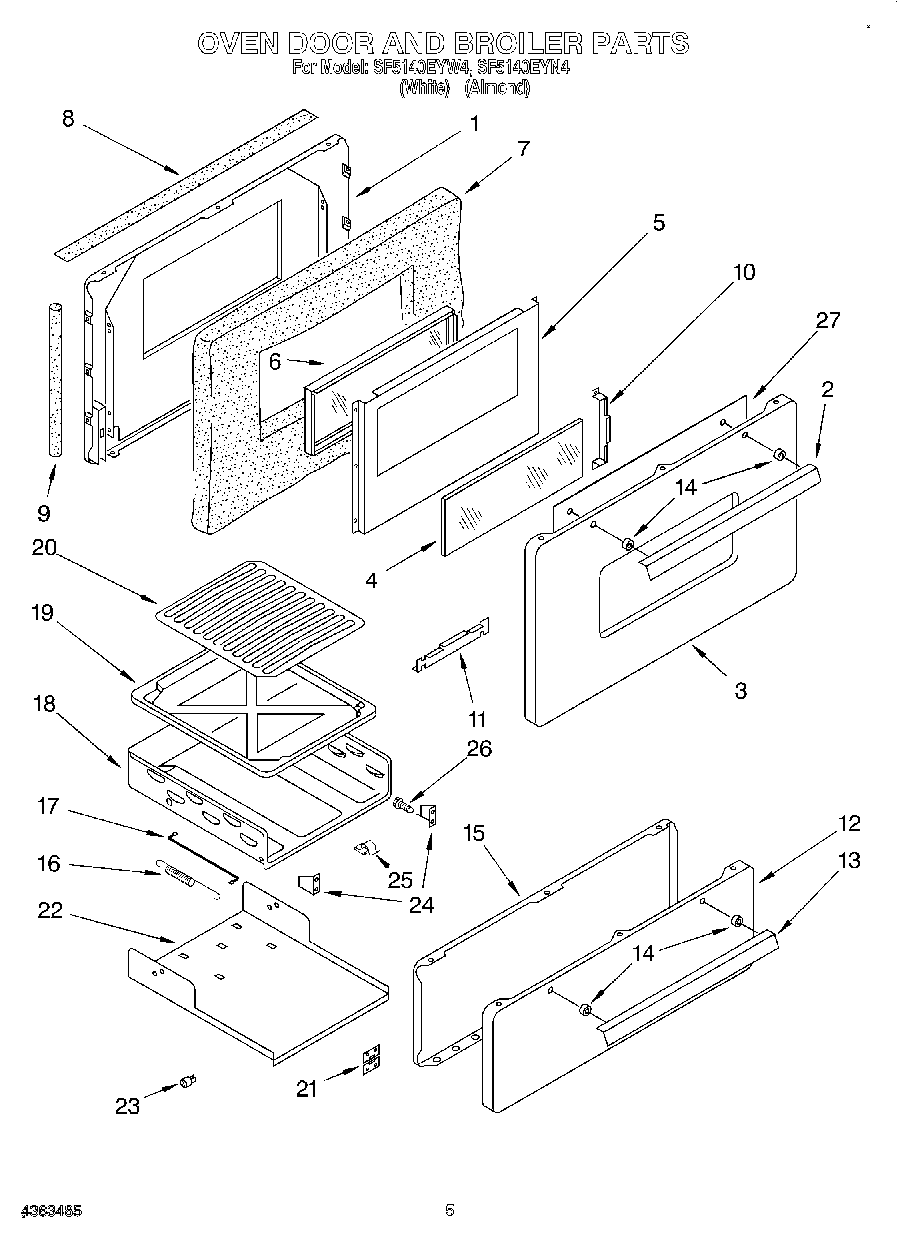

SF5140EYW4 04 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
3	Panel, Door (White)
3	Panel, Door (Almond)
4	Window, Outer
5	SCREW
5	Baffle, Door
6	Window
7	WPW10208653 Whirlpool Insulation
8	Seal, Door (Top)
9	Seal, Door (2) (Side)
10	Bracket, Window
11	Support, Window
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
12	Panel, Broiler (Screw)
13	Handle, Door (2)
13	Screw
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Rod, Push-Pull
18	Body, Brolier
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door
22	Carriage Broiler
23	W10709871 Whirlpool Drawer Glide
24	Bracket
25	Clip, Broiler
26	Screw, 10-12 x 1/2 (4)
27	Shield, Heat
