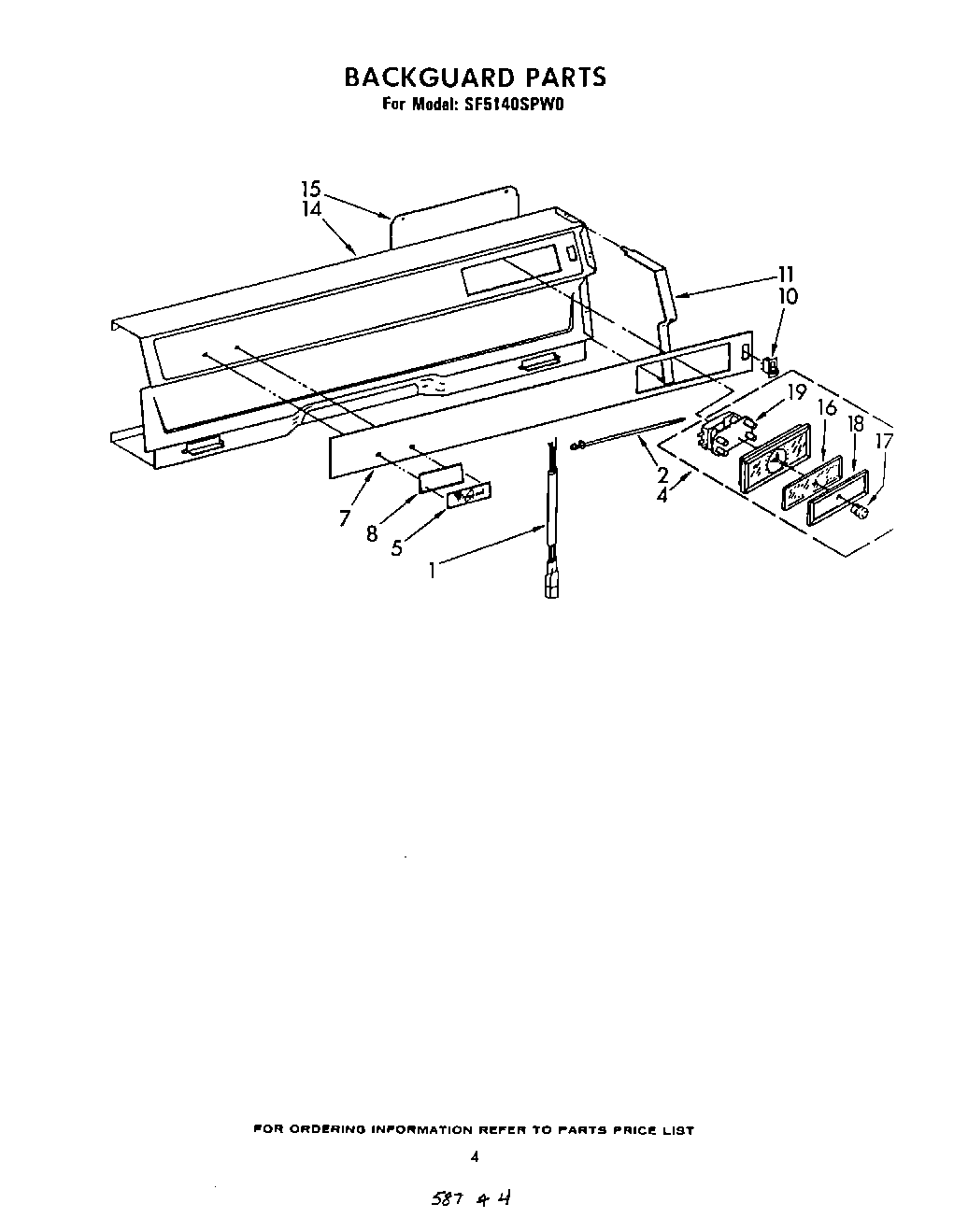

SF5140SPW0 03 – BACKGUARD

SF5140SPW0 03 – BACKGUARD

Written by

in

SF5140SPW0 03 – BACKGUARD

Products

Position	Product
1	Block, Disconnect Pin
2	Clamp, Wire
2	Clamp, Wire
4	Clock, Regular
5	Inlay, Nameplate
7	Inlay, Backguard Panel
8	Plate, Name
10	Switch, Rocker
11	End Cap, Backguard (Right Side)
11	End Cap, Backguard (Left Side)
14	panel, backguard (white)
14	Panel, Backguard (Almond)
14	Panel, Backguard (Toast)
15	Cover, Clock
16	Glass, Timer
17	WP3169181 Whirlpool Knob
18	Bezel
19	Motor
