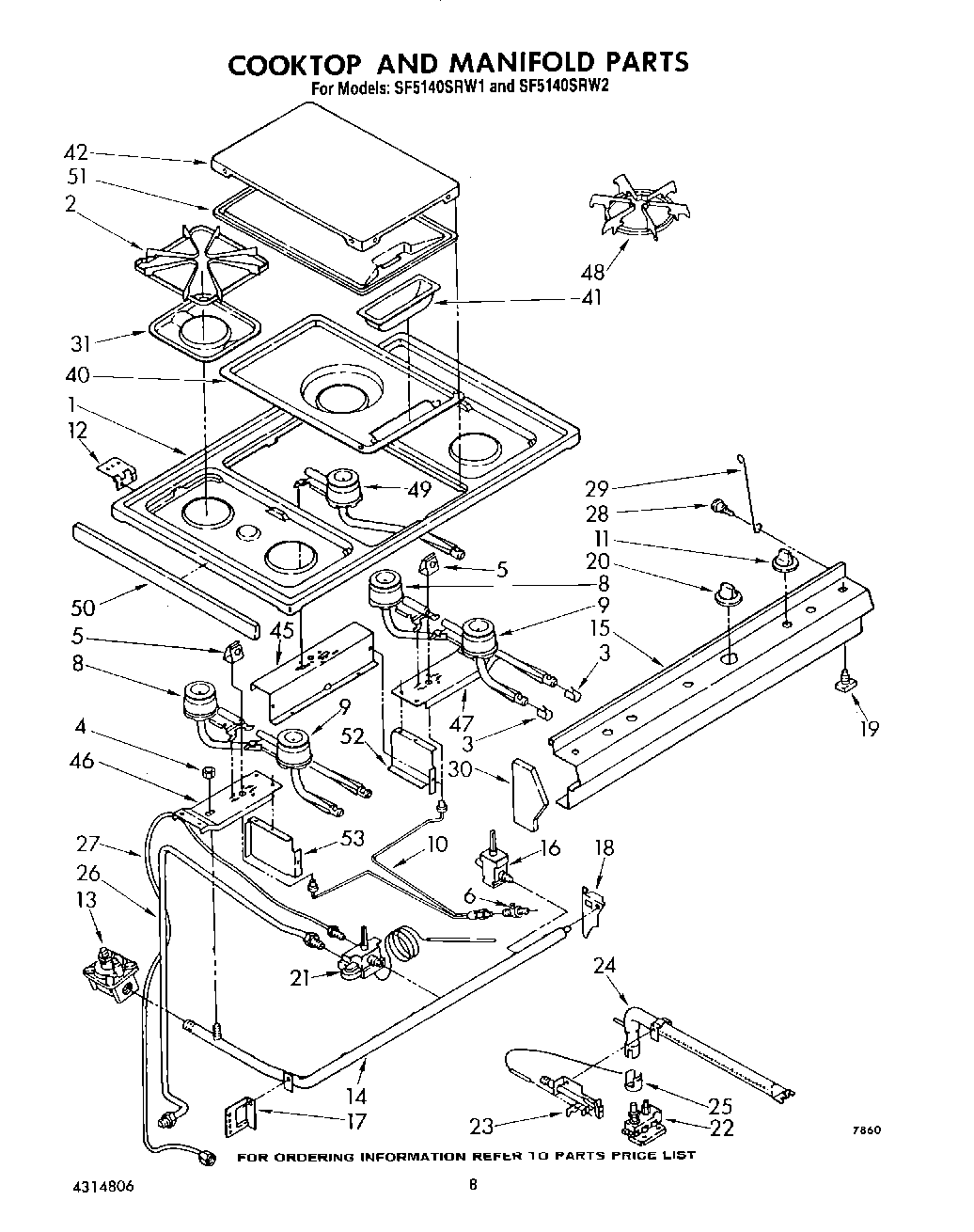

SF5140SRN1 07 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4314806
	WPL LIT786775
	WPL LIT786738
	Guide, Cooking
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
8	Burner, Rear (2)
9	Burner, Front (2)
10	Tubing, Pilot
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	SCREW
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 31)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Endcap (L.H.)
30	Endcap (R.H.)
31	WP786333 Whirlpool Drip Bowl
40	WPL 4157780
40	WPL 4157845
41	WPL 4157781
42	C
42	WPL 4157783
45	Support, Center
46	Support, Burner (L.H.)
47	Support, Burner (R.H.)
48	Grate (4)
49	Screw, 10-12 X 3/8 (2)
49	Burner, Griddle
50	WPL 4157189
51	WPL 4157790
52	Support, Center (R.H.)
53	FOIL, ALUMINUM OVEN (18“ X 25 )
53	WPW10208653 Whirlpool Insulation
53	Support, Center (L.H.)
