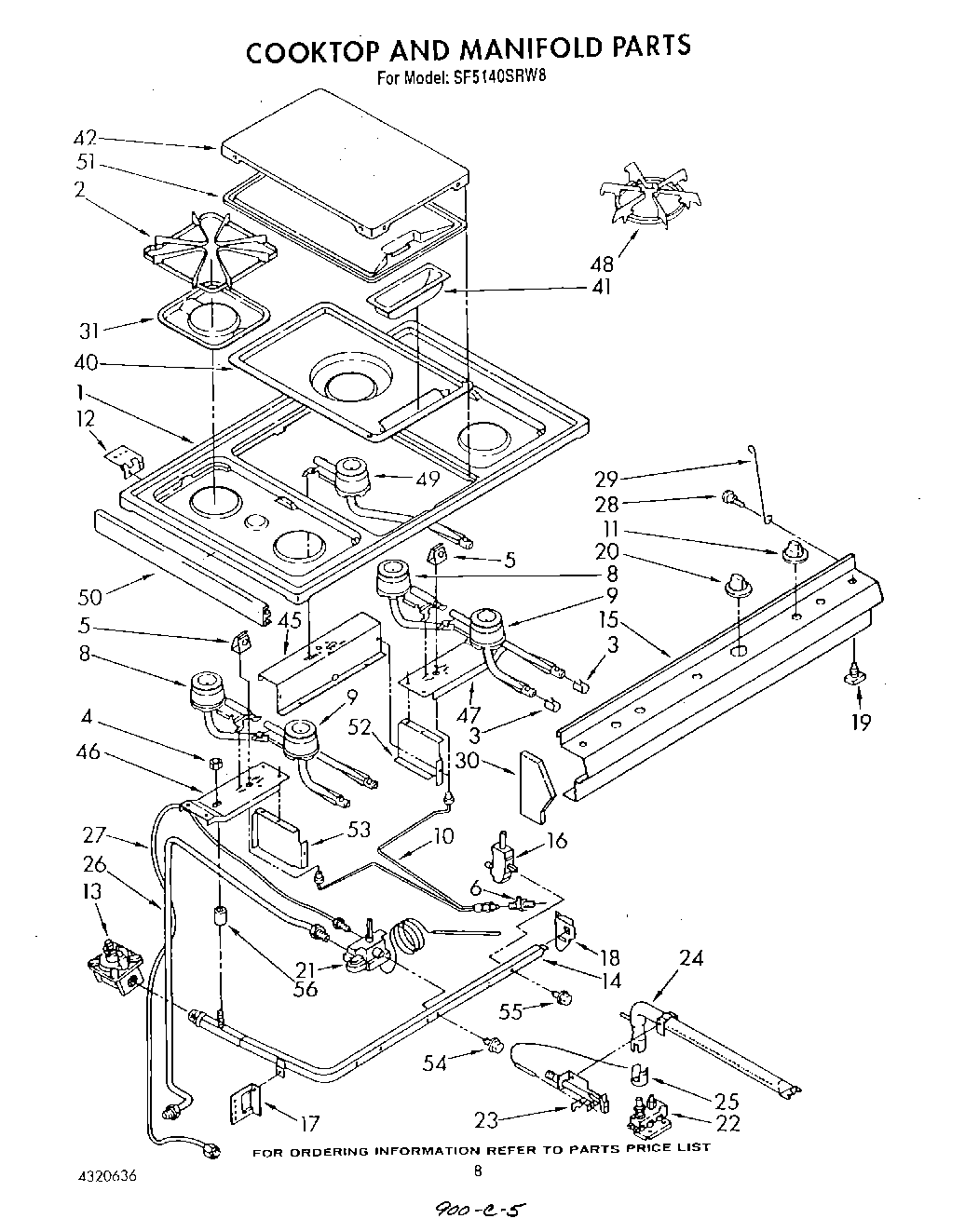

SF5140SRN8 07 – COOKTOP AND MANIFOLD , LIT/OPTIONAL

Products

Position	Product
	WPL LIT4320636
	Guide, Cooking
	WPL LIT786775
	WPL LIT786738
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
8	Burner, Rear (2)
9	Burner, Front (2)
10	Tubing, Pilot
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	Speed Clip (4)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4) (Includes Ill. No. 46)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 31)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Endcap (L.H.)
30	Endcap (R.H.)
31	WP786333 Whirlpool Drip Bowl
40	WPL 4157845
40	WPL 4157780
41	WPL 4157781
42	WPL 4157783
42	C
45	Support, Center
46	Support, Burner (L.H.)
47	Support, Burner (R.H.)
48	Grate (4)
49	Burner, Griddle
49	Screw, 10-12 X 3/8 (2)
50	Trim, Cooktop (2)
51	WPL 4157790
52	Support, Center (R.H.)
53	Support, Center (L.H.)
54	Bolt, Thermostat Mounting (2)
55	Bolt, Valve Mounting
56	FOIL, ALUMINUM OVEN (18“ X 25 )
56	WPW10208653 Whirlpool Insulation
56	Spacer, Manifold
