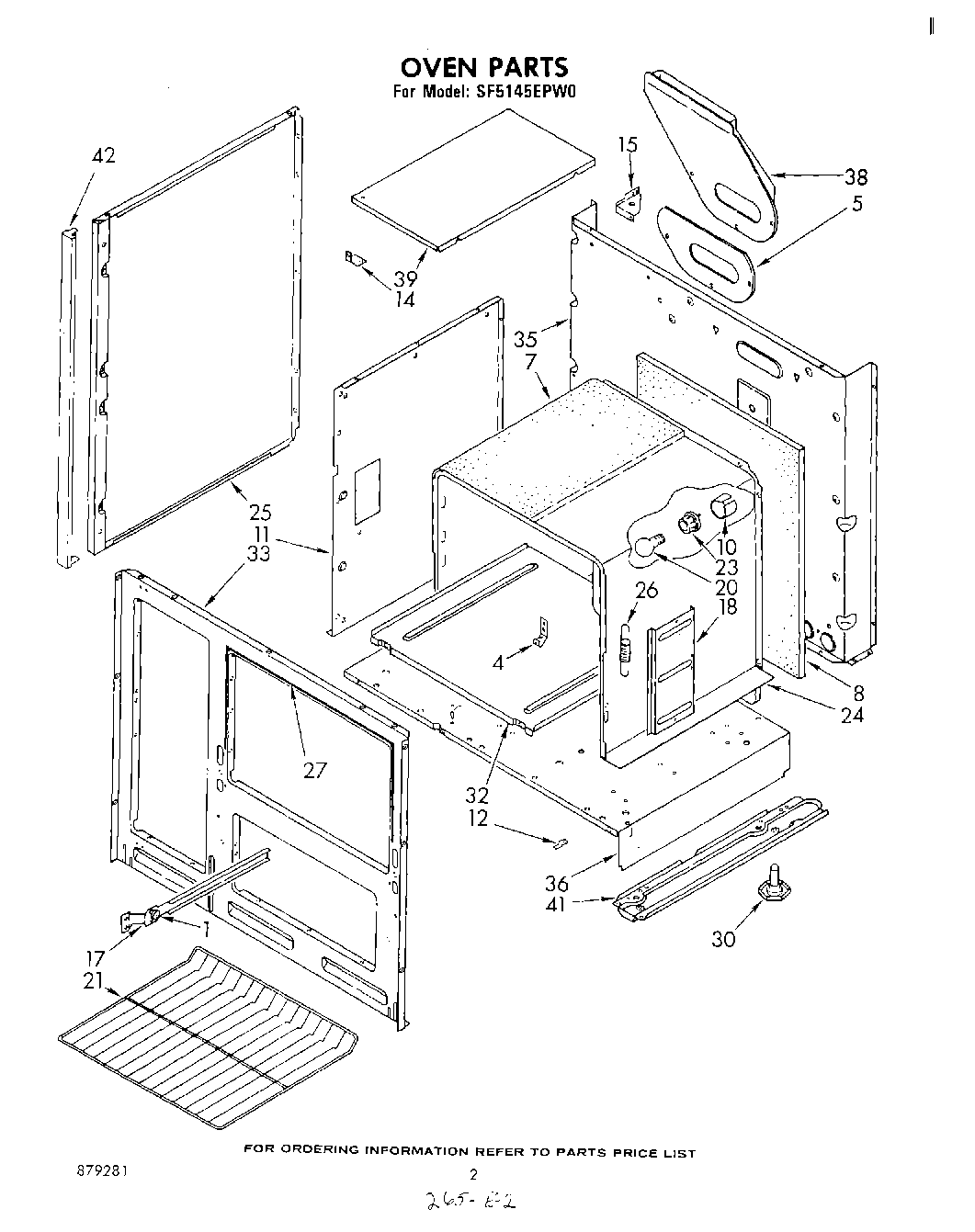

SF5145EPW0 02 – OVEN , LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	List, Repair Parts
	Diagram, Wiring
	Instructions, Installation
	Diagram, Installation Instructions
1	Bearing, Roller (4)
4	98005642 Whirlpool Clip
5	Gasket, Vent Deflector
7	WPW10208653 Whirlpool Insulation
10	Sleeve, Light Hole
11	side, compartment
12	Clip, Oven Bottom Plate (2)
14	Support, Compartment Shelf
15	Bracket, Corner Support (Left Side)
15	Bracket, Corner Support (Right Side)
17	Track, Broiler (Left Side)
17	Track, Broiler (Right Side)
18	Cover, Hinge (2)
20	RANGE ONLY 40W 120V APPL BULB
21	Rack, Oven (2)
23	Socket, Oven Light
24	Oven, 30“ Standard Clean (Not Serviceable)
25	Panel, End (2) (White)
25	Panel, End (2) (Platinum)
25	Panel, End (2) (Toast)
25	Panel, End (2) (Almond)
26	Spring, Oven Door
27	Seal, Oven Door (Side (2))
27	Seal, Oven Door (Top (1))
30	Screw, Leveling (4)
32	Plate, Oven Bottom
33	Front, Main
35	Back, Main
36	Bottom, Main
38	Deflector, Vent
39	Shelf, Compartment
41	Runner, Base (Left Side)
41	Runner, Base (Right Side)
42	Trim, End Panel (2)
