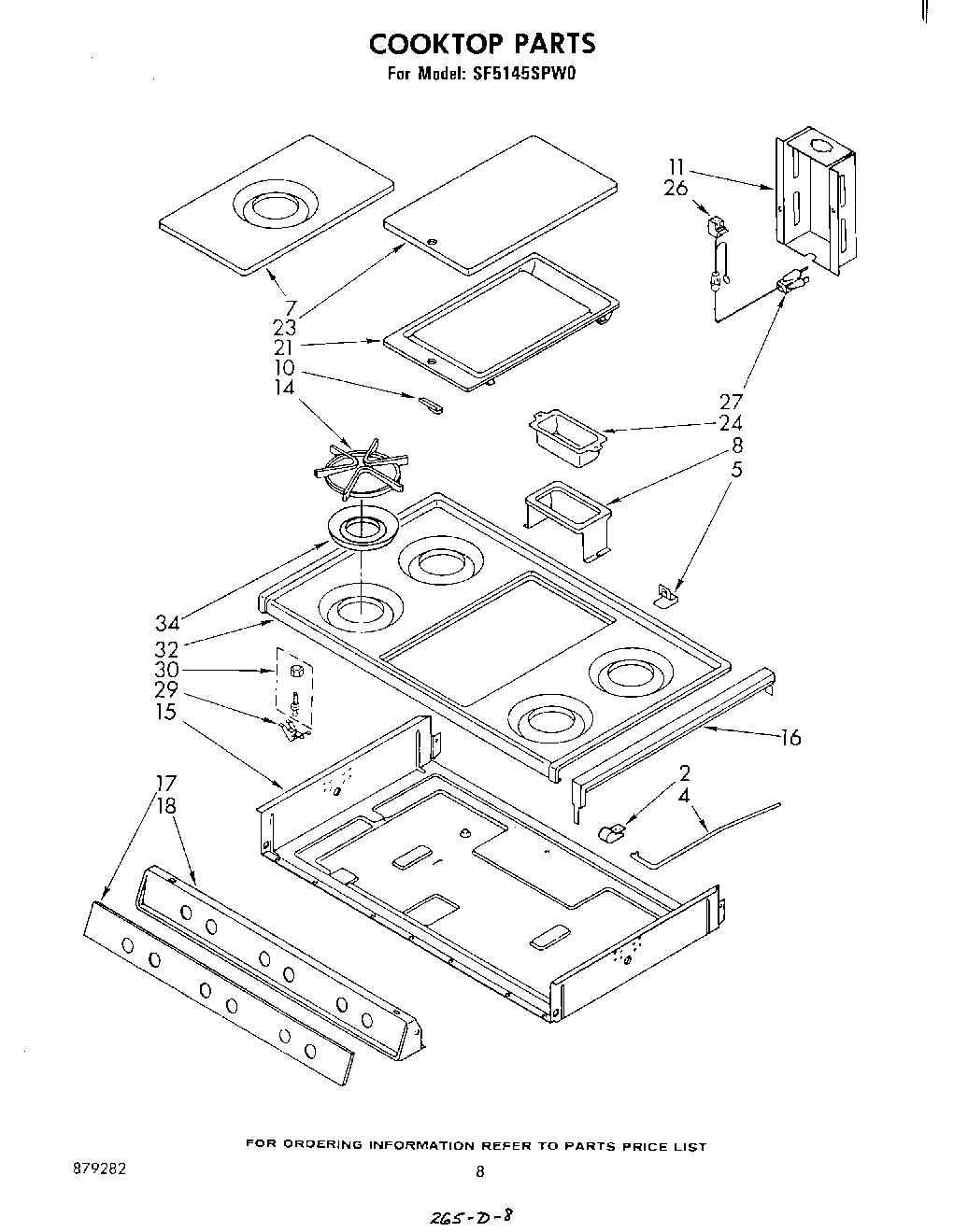

SF5145SPW0 05 – COOKTOP

SF5145SPW0 05 – COOKTOP

Written by

in

SF5145SPW0 05 – COOKTOP

Products

PositionProduct
2Clamp, Top Stop
4Stop, Cook Top
5Spacer, Main Top
7Center, Cooktop (Almond)
7top, center cook (platinum)
7Top, Center Cook (Toast)
7Center, Cooktop (White)
8Hanger, Grease Cup
10Reflector, Grid Lighter
11Cover, Wire
14Grate, Burner (4)
15Bottom, Burner Box
16Trim, Main Top (Left Side)
16Trim, Main Top (Right Side)
17Inlay, Manifold Panel
18Panel, Manifold (Toast)
18Panel, Manifold (Platinum)
18panel, manifold (white)
18Panel, Manifold (Almond)
21Griddle
23Cover, Griddle (Toast)
23Cover, Griddle (Platinum)
23cover, griddle (white)
23Cover, Griddle (Almond)
24Cup, Grease
26Block, Disconnect Socket
27Cord, Extension
29Catch, Main Top (2)
30Strike, Main Top (2)
32top, main (platinum)
32top, main (toast)
32top, main (white)
32top, main (almond)
34Bowl, Drip (4
