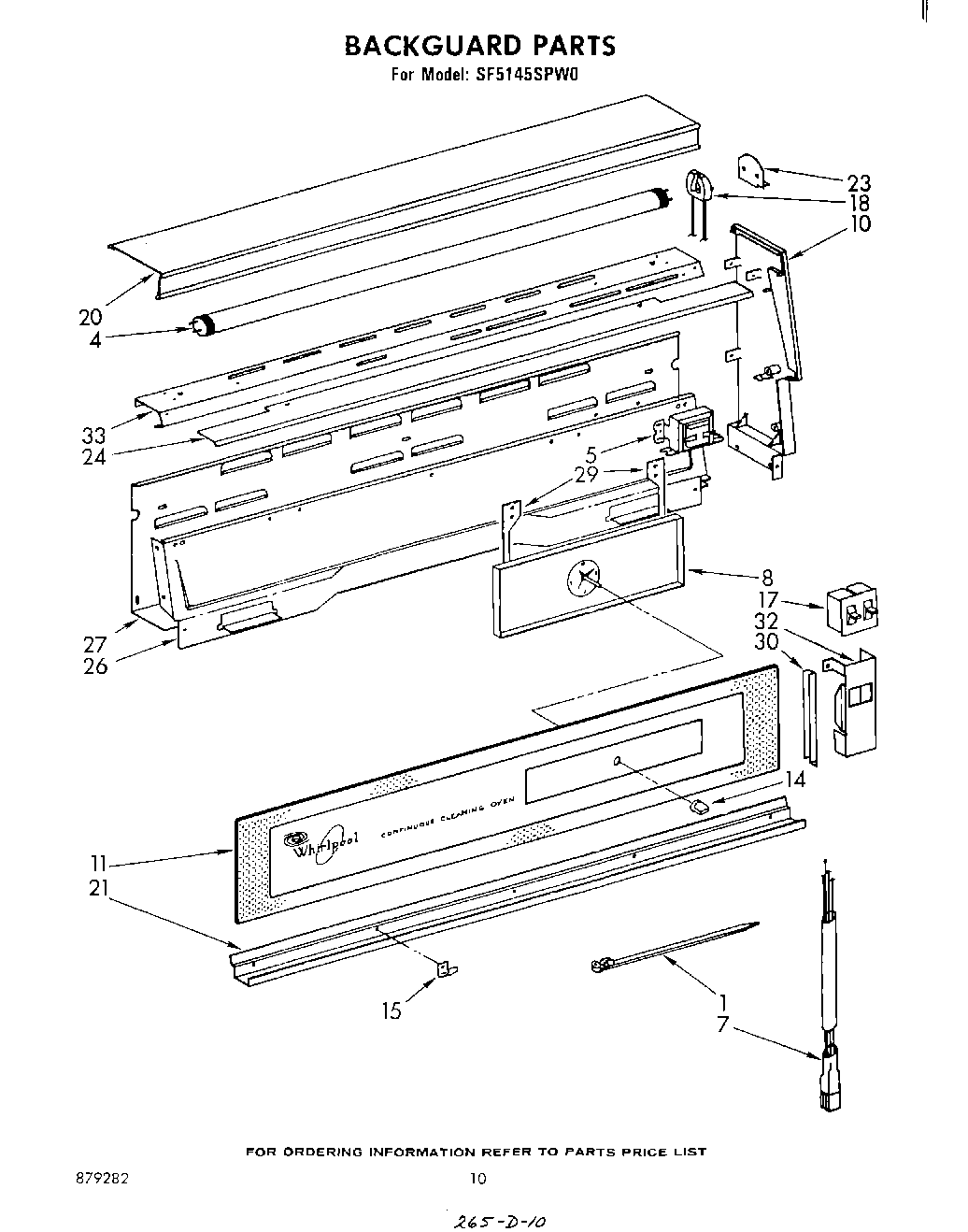

SF5145SPW0 06 – BACKGUARDadmin2025-04-26T13:09:17+00:00SF5145SPW0 06 – BACKGUARD
Products
| Position | Product |
|---|
| 1 | Clamp, Wire |
| 4 | WP95292 Whirlpool Fluorescent Light Bulb |
| 5 | Ballast, Fluorescent Light |
| 7 | Block, Disconnect Pin |
| 8 | Clock, Automatic |
| 10 | Cap, End (Right Side) |
| 10 | Cap, End (Left Side) |
| 11 | Glass, Backguard |
| 14 | WP3169181 Whirlpool Knob |
| 15 | Spacer, Backguard Glass (2) |
| 17 | Switch, Combination |
| 18 | Socket, Fluorescent Light (Right Side) |
| 18 | Socket, Fluorescent Light (Left Side) |
| 20 | Trim, Backguard Top |
| 21 | Trim, Backguard Bottom |
| 23 | Bracket, Brackguard Lampholder (Right Side) |
| 23 | Bracket, Brackguard Lampholder (Left Side) |
| 24 | Retainer, Glass |
| 26 | Panel, Backguard (Platinum) |
| 26 | Panel, Backguard (Toast) |
| 26 | Panel, Backguard (Almond) |
| 26 | Panel, Backguard (White) |
| 27 | Cover, Backguard Wire |
| 29 | Support, Clock (Left Side) |
| 29 | Support, Clock (Right Side) |
| 30 | Trim, Backguard Glass (2) |
| 32 | Plate, Switch |
| 33 | Brace, Backguard |
