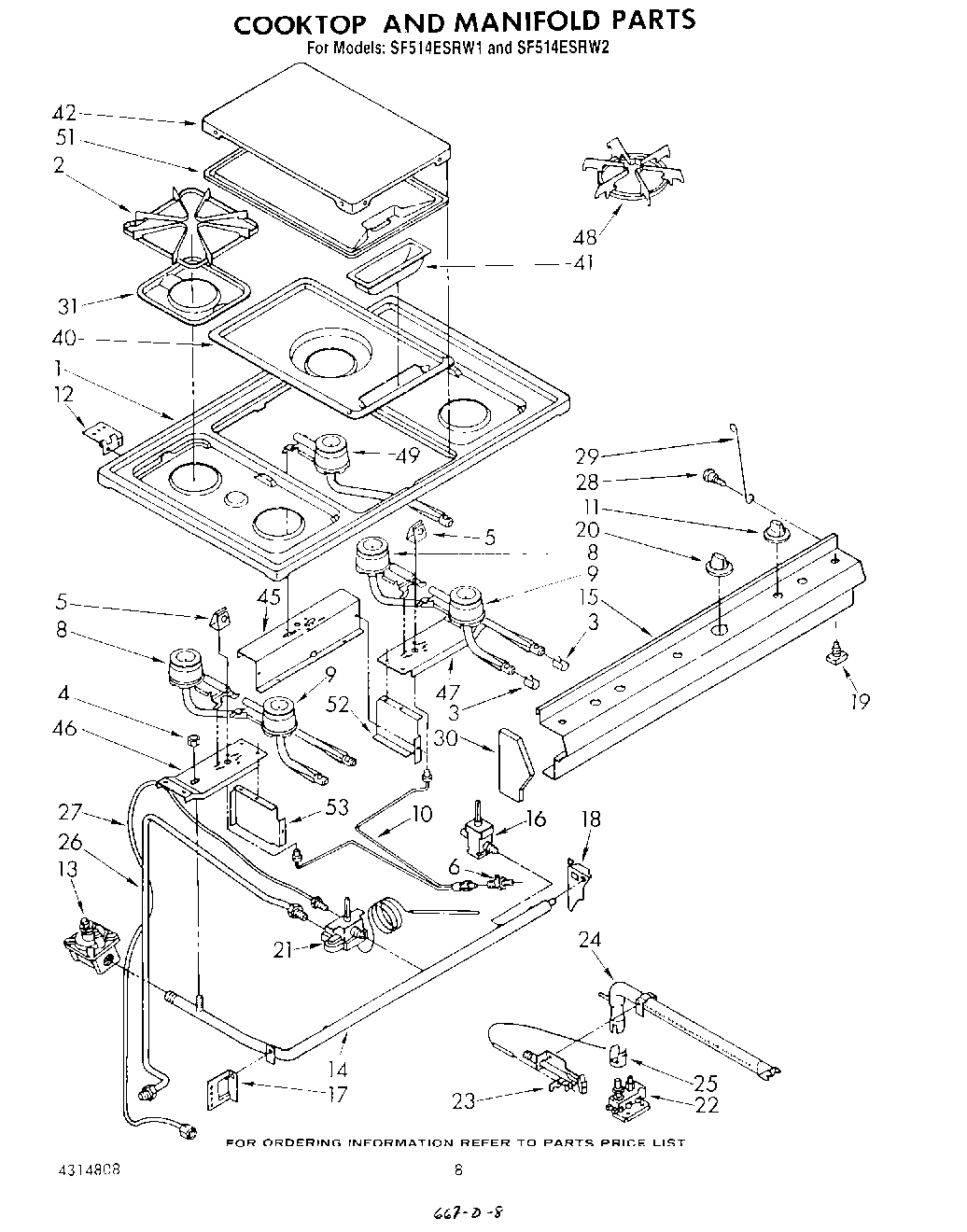

SF514ESRN2 07 – COOKTOP AND MANIFOLD , LIT/OPTIONAL

Products

Position	Product
	WPL LIT786738
	WPL LIT4314808
	WPL LIT4157069
	Guide, Cooking
1	Cooktop (Platinum)
1	Cooktop (Toast)
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
8	Burner, Rear (2)
9	Burner, Front (2)
10	Tubing, Pilot
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	SCREW
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
15	Nameplate
16	Valve, 180~ (4)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Endcap (R.H.)
30	Endcap (L.H.)
31	WP786333 Whirlpool Drip Bowl
40	WPL 4157847
40	WPL 4157846
40	WPL 4157845
40	WPL 4157780
41	WPL 4157781
42	C
42	WPL 4157783
42	WPL 4157785
42	WPL 4157784
45	Support, Center
46	Support, Burner (L.H.)
47	Support, Burner (R.H.)
48	Grate (4)
49	Burner, Griddle
49	Screw, 10-12 X 3/8 (2)
51	WPL 4157790
52	Support, Center (R.H.)
53	Support, Center (L.H.)
53	FOIL, ALUMINUM OVEN (18“ X 25 )
53	WPW10208653 Whirlpool Insulation
