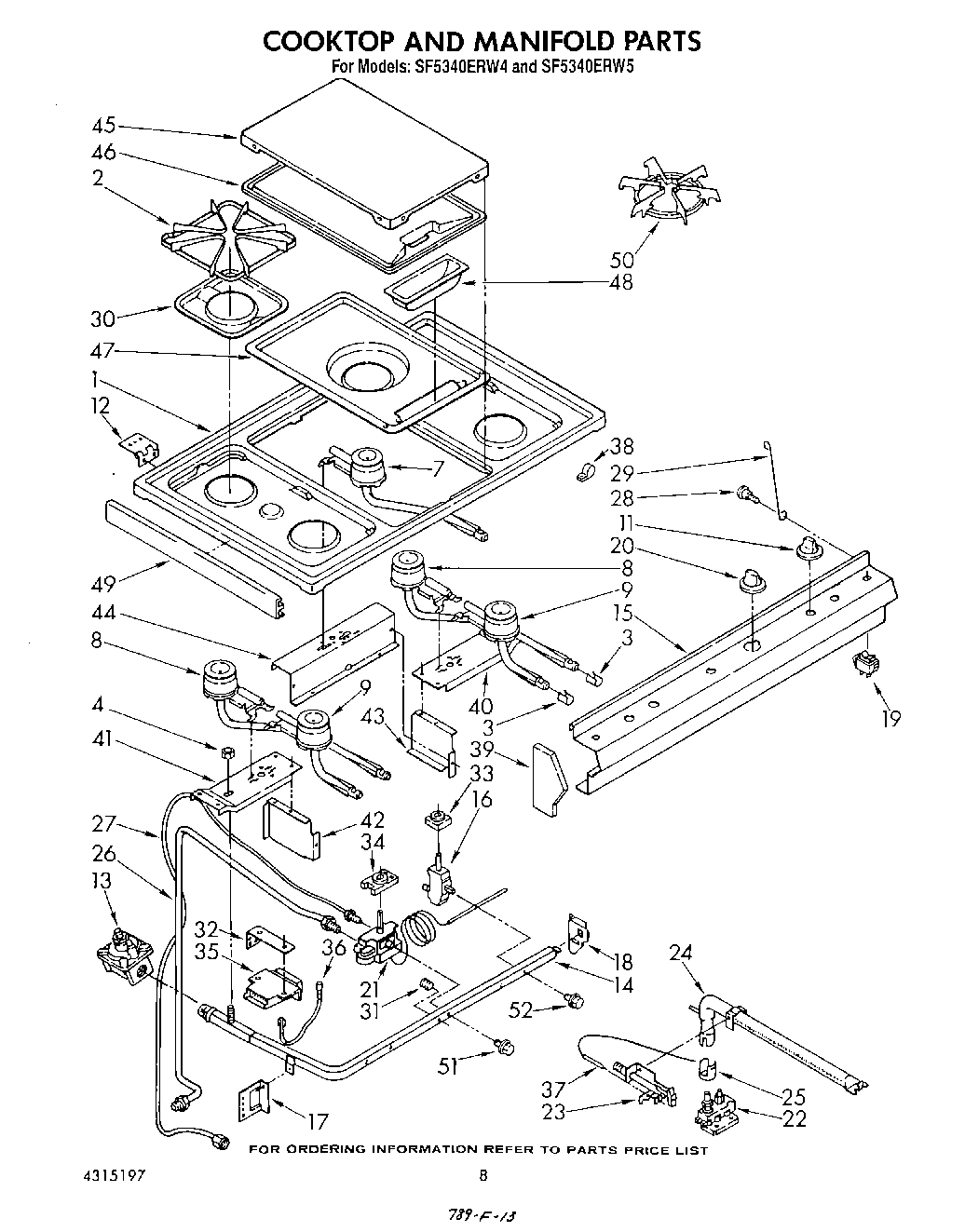

SF5340ERN4 07 – COOKTOP AND MANIFOLD , LIT/OPTIONAL

Products

Position	Product
	Guide, Cooking
	WPL LIT4315197
	WPL LIT786738
	WPL LIT786775
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Burner, Griddle
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
11	WP4179282 Whirlpool Knob
12	SCREW
12	Speed Clip (4)
12	Hinge, Maintop (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4) (Includes Ill. No. 46)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	WP786333 Whirlpool Drip Bowl
31	W10295523 Whirlpool Plug
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
34	WP878009 Whirlpool Igniter Switch
35	Module, Spark
36	Ignitor (L.H.)
36	Ignitor (R.H.)
36	Ignitor (R.H.)
37	Ignitor, Oven
38	Strain Relief
39	Endcap (R.H.)
39	Endcap (L.H.)
40	Support, Burner (R.H.)
41	Support, Burner (L.H.)
42	Support, Center (L.H.)
43	Support, Center (R.H.)
44	Support, Center
45	C
45	WPL 4157783
46	WPL 4157790
47	WPL 4157845
47	WPL 4157780
48	WPL 4157781
49	Trim, Cooktop (2)
50	Grate (4)
51	Bolt, Thermostat Mounting (2)
52	FOIL, ALUMINUM OVEN (18“ X 25 )
52	WPW10208653 Whirlpool Insulation
52	Bolt, Valve Mounting
