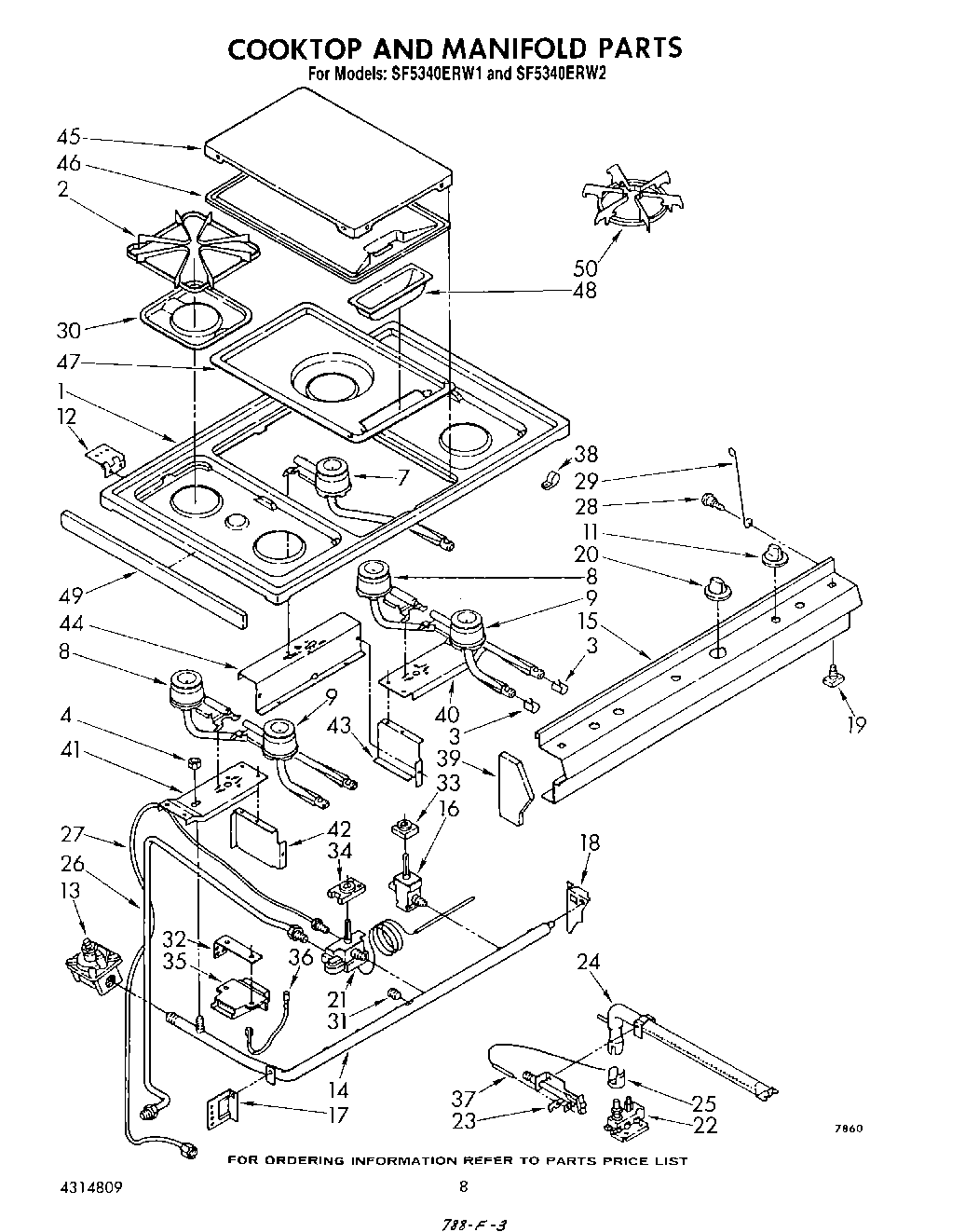

SF5340ERW2 07 – COOKTOP AND MANIFOLD , LIT/OPTIONAL

Products

Position	Product
	WPL LIT786775
	WPL LIT786738
	WPL LIT4314809
	Guide, Cooking
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Burner, Griddle
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	Speed Clip (4)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	WP786333 Whirlpool Drip Bowl
31	W10295523 Whirlpool Plug
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
34	WP878009 Whirlpool Igniter Switch
35	Module, Spark
36	Ignitor (L.H.)
36	Ignitor (R.H.)
36	Ignitor (R.H.)
37	Ignitor, Oven
38	Strain Relief
39	Endcap (R.H.)
39	Endcap (L.H.)
40	Support, Burner (R.H.)
41	Support, Burner (L.H.)
42	Support, Center (L.H.)
43	Support, Center (R.H.)
44	Support, Center
45	WPL 4157783
45	C
46	WPL 4157790
47	WPL 4157845
47	WPL 4157780
48	WPL 4157781
49	WPL 4157189
50	WPW10208653 Whirlpool Insulation
50	FOIL, ALUMINUM OVEN (18“ X 25 )
50	Grate (4)
