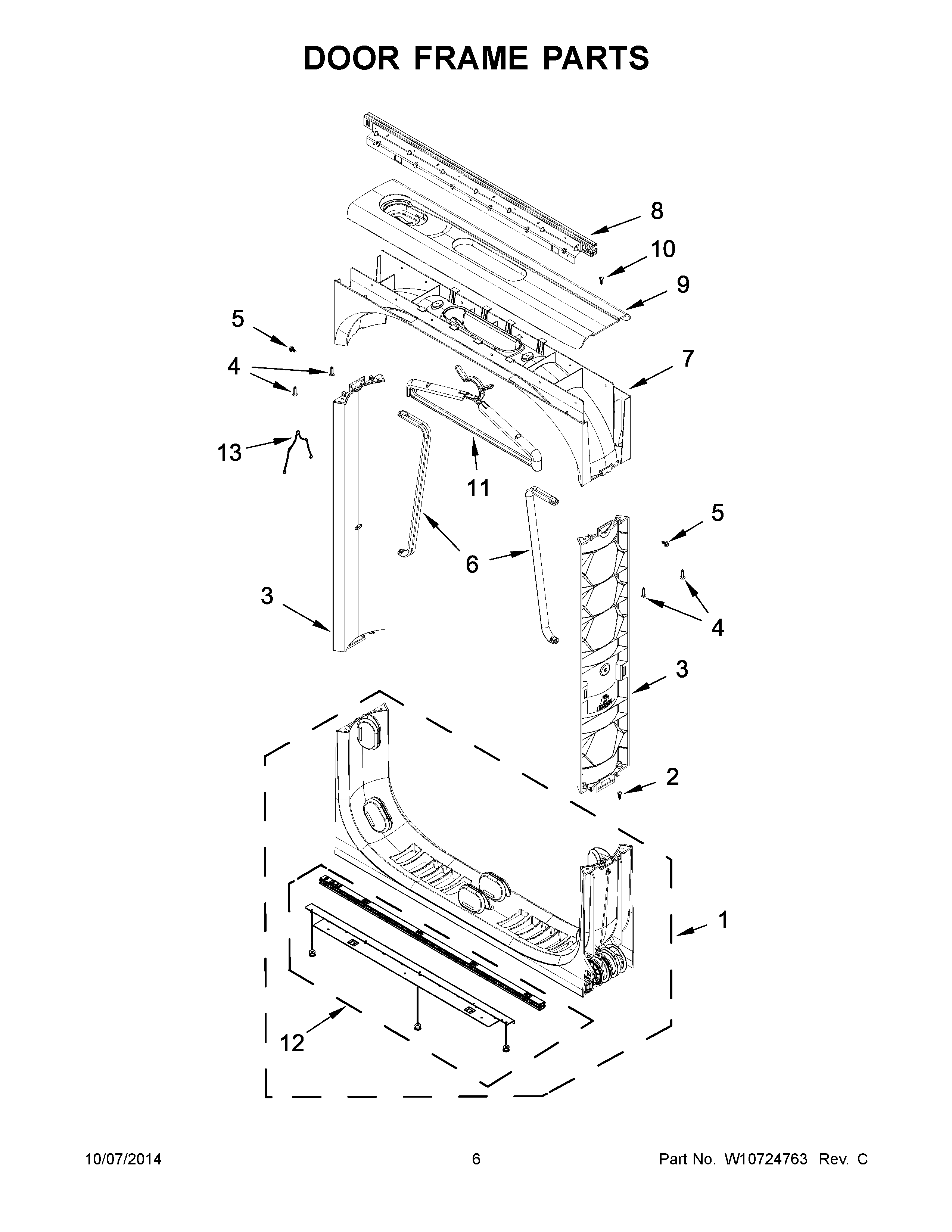

SFF1000CLN0 04 – DOOR FRAME PARTS

Products

Position	Product
1	W10579398 Whirlpool Panel
2	SCREW
3	FRAME, SIDE
4	SCREW
5	WP489069 Whirlpool Compactor Screw
6	SLEEVE WRAP
7	FRAME, TOP LOWER
8	RAIL ASSEMBLY, UPPER
9	W10526546 Whirlpool Panel
10	SCREW
11	HANGER
12	RAIL ASSEMBLY, LOWER
13	POCKET TENSIONER
