SFF1000CSA0 05 – CONTROL AND DISPENSING PARTS

SFF1000CSA0 05 – CONTROL AND DISPENSING PARTS

Written by

in

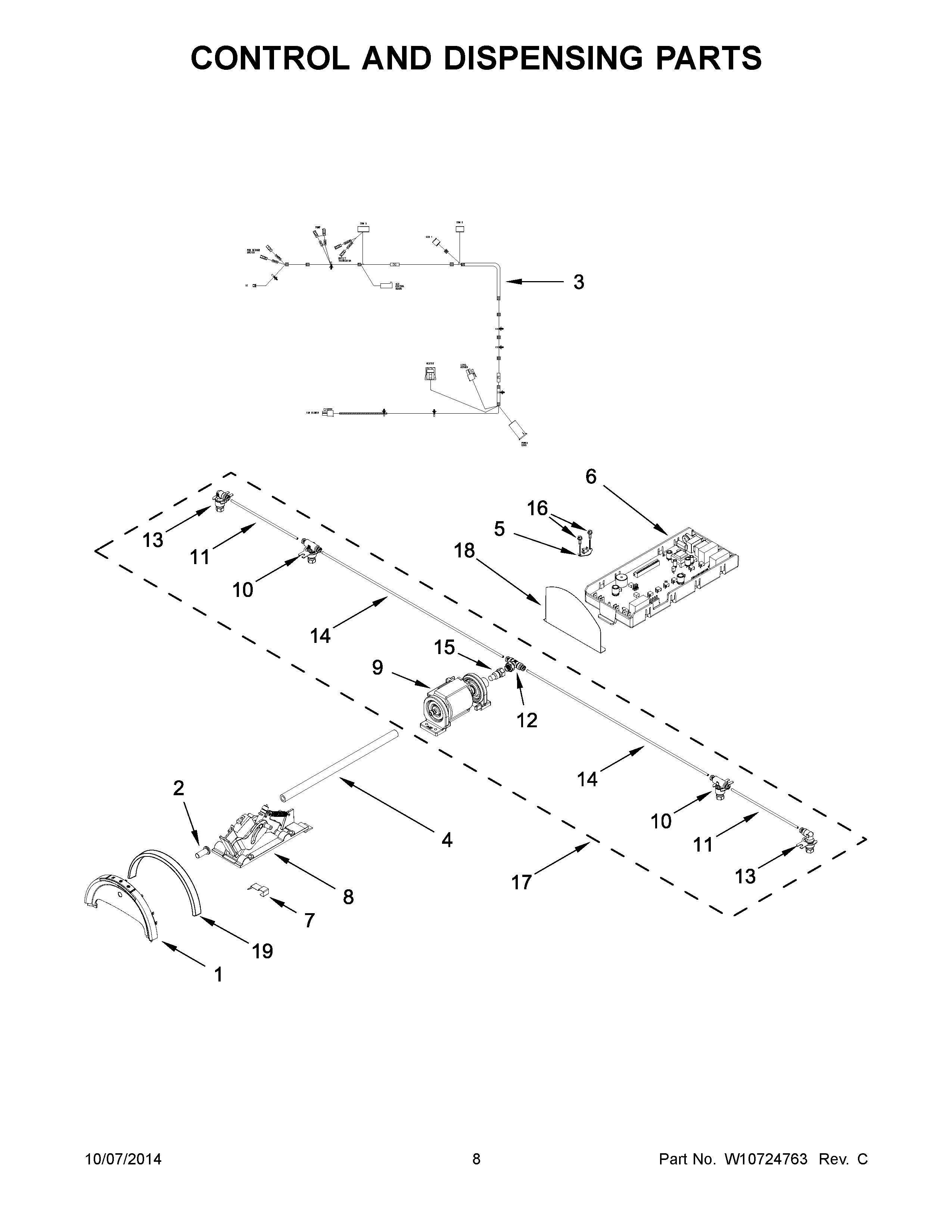

SFF1000CSA0 05 – CONTROL AND DISPENSING PARTS

Products

PositionProduct
1WPW10718139 Whirlpool Electronic Control Board + Core
1AW10718140 Whirlpool Display
2PLUNGER
3WIRING HARNESS, MAIN
4HOSE
5WP8577274 Whirlpool Dryer Thermistor
6WPW10556685-includeCORE Whirlpool WPW10556685 Refrigerator Electronic Control Board + Core
7SHIELD, FRONT
8W10570153 Whirlpool Dispenser
9PUMP
10NOZZLE, T BODY
11NOZZLE HOSE
12W10526570 Whirlpool T-Fitting
13NOZZLE BODY
14W10526572 Whirlpool Hose
15NOZZLE
16WP489069 Whirlpool Compactor Screw
17W10621655 Whirlpool Hose Assembly
18SHIELD, CCU
19GASKET
