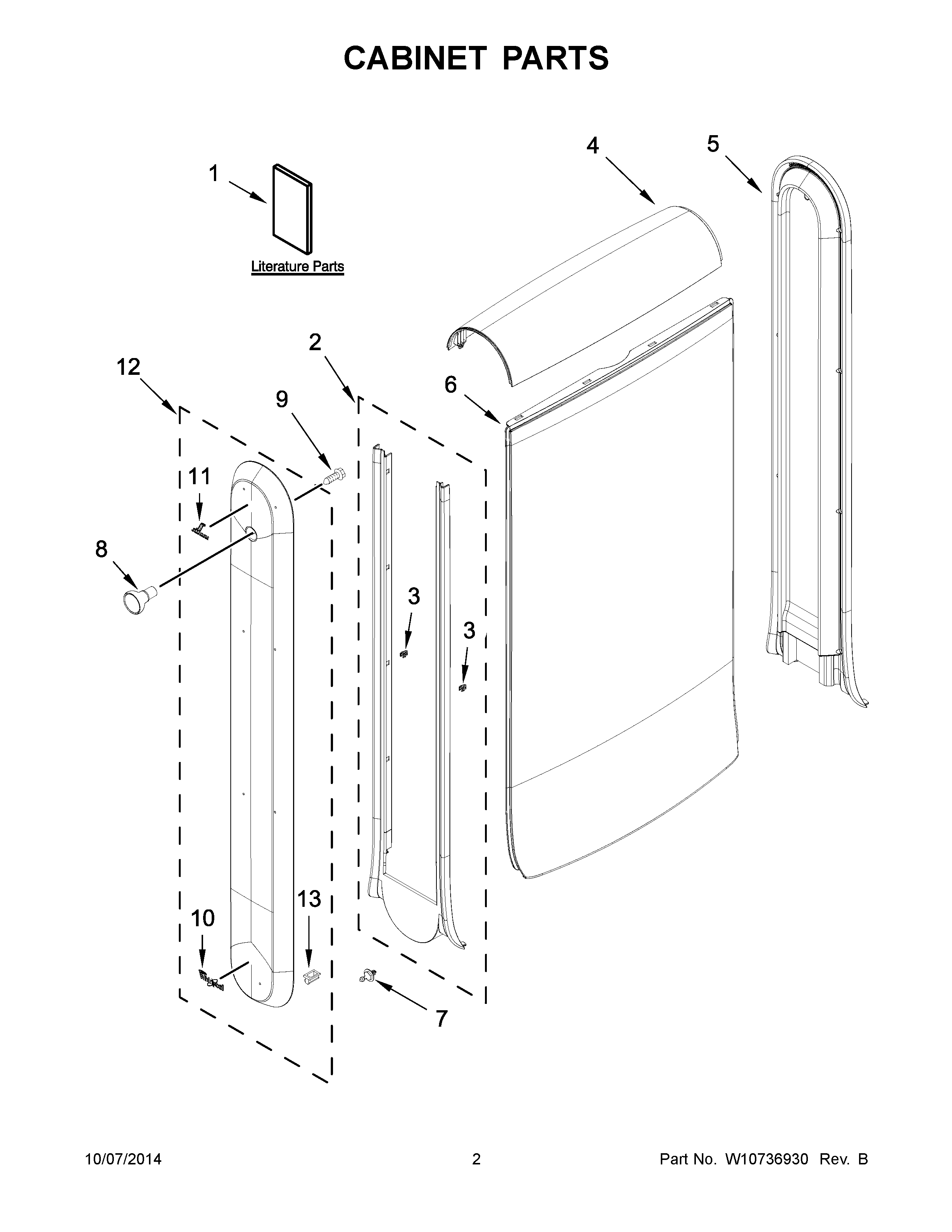

SFF1001CSA0 02 – CABINET PARTS

Products

Position	Product
1	QUICK START GUIDE
1A	TECH SHEET
2A	END CAP, FRONT (GRAPHITE)
2	END CAP, FRONT (LINEN)
3	CLIP
4A	W10641004 Whirlpool Panel Assembly
4	PANEL, TOP (LINEN)
5	END CAP, REAR (LINEN)
5A	END CAP, REAR (GRAPHITE)
6A	PANEL, SIDE (GRAPHITE)
6	PANEL, SIDE (LINEN)
7	W10295405 Whirlpool Strike
8	W10556684 Whirlpool Knob
9	W10582604 Whirlpool Compactor Screw
10	W11178521 Whirlpool Dishwasher Nameplate
11	BADGE, SWASH
12	DOOR, FRONT
13	WP3389441 Whirlpool Door Catch
