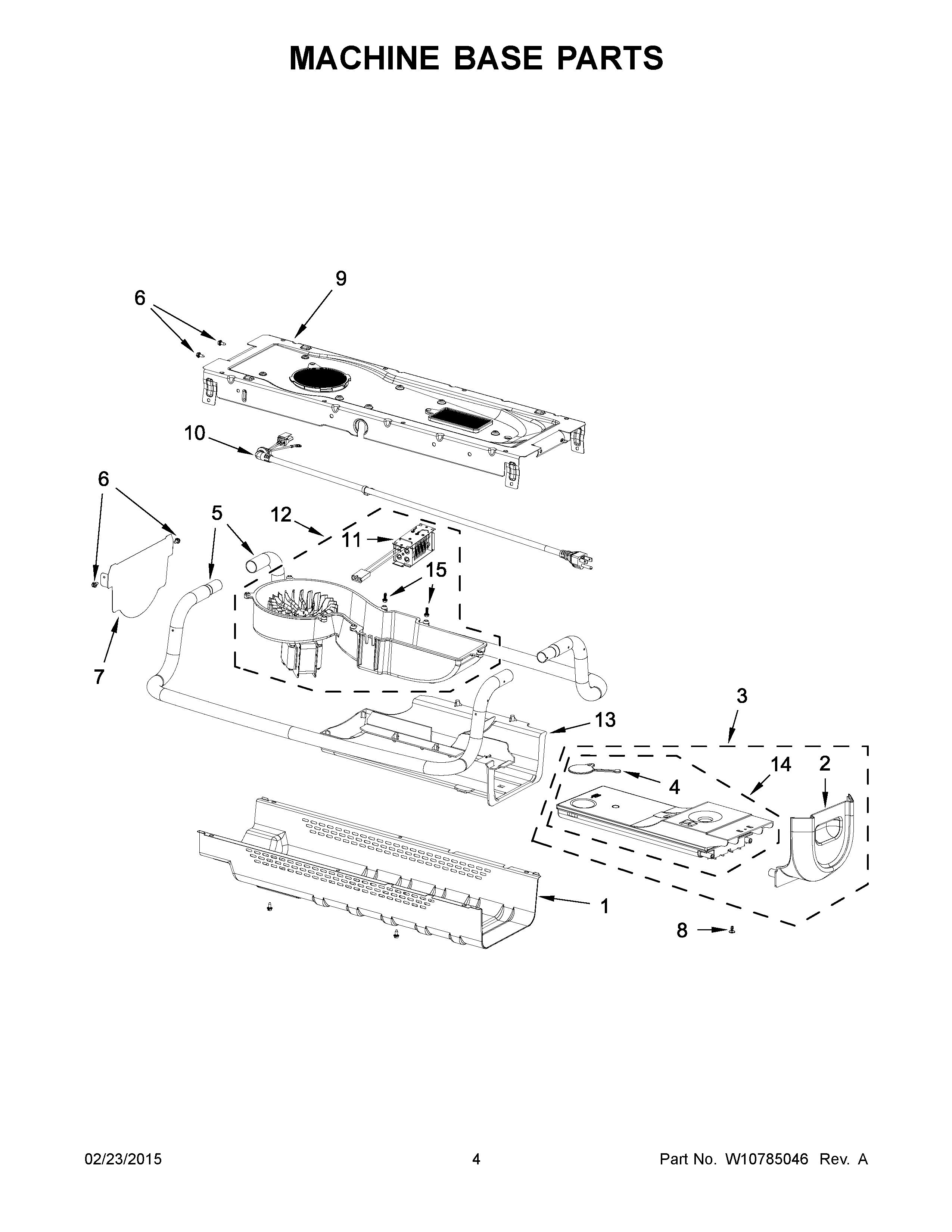

SFF1002CSA0 03 – MACHINE BASE PARTS

Products

Position	Product
1	W10526508 Whirlpool Cover Assembly
2	HANDLE, DRAWER (LINEN)
2A	HANDLE, DRAWER (GRAPHITE)
3	W10649746 Whirlpool Drawer Assembly
3A	W10692647 Whirlpool Drawer
4	RESERVOIR CAP
5	W10526577 Whirlpool Bracket
6	WP489069 Whirlpool Compactor Screw
7	W10570166 Whirlpool Panel Assembly
8	W11230114 Whirlpool Screw Assembly
9	W10652713 Whirlpool Air Duct
10	W10673485 Whirlpool Power Cord
11	HEATER
12	W10526515 Whirlpool Heater
13	W10694236 Whirlpool Drawer Assembly
14	W10649747 Whirlpool Reservoir
