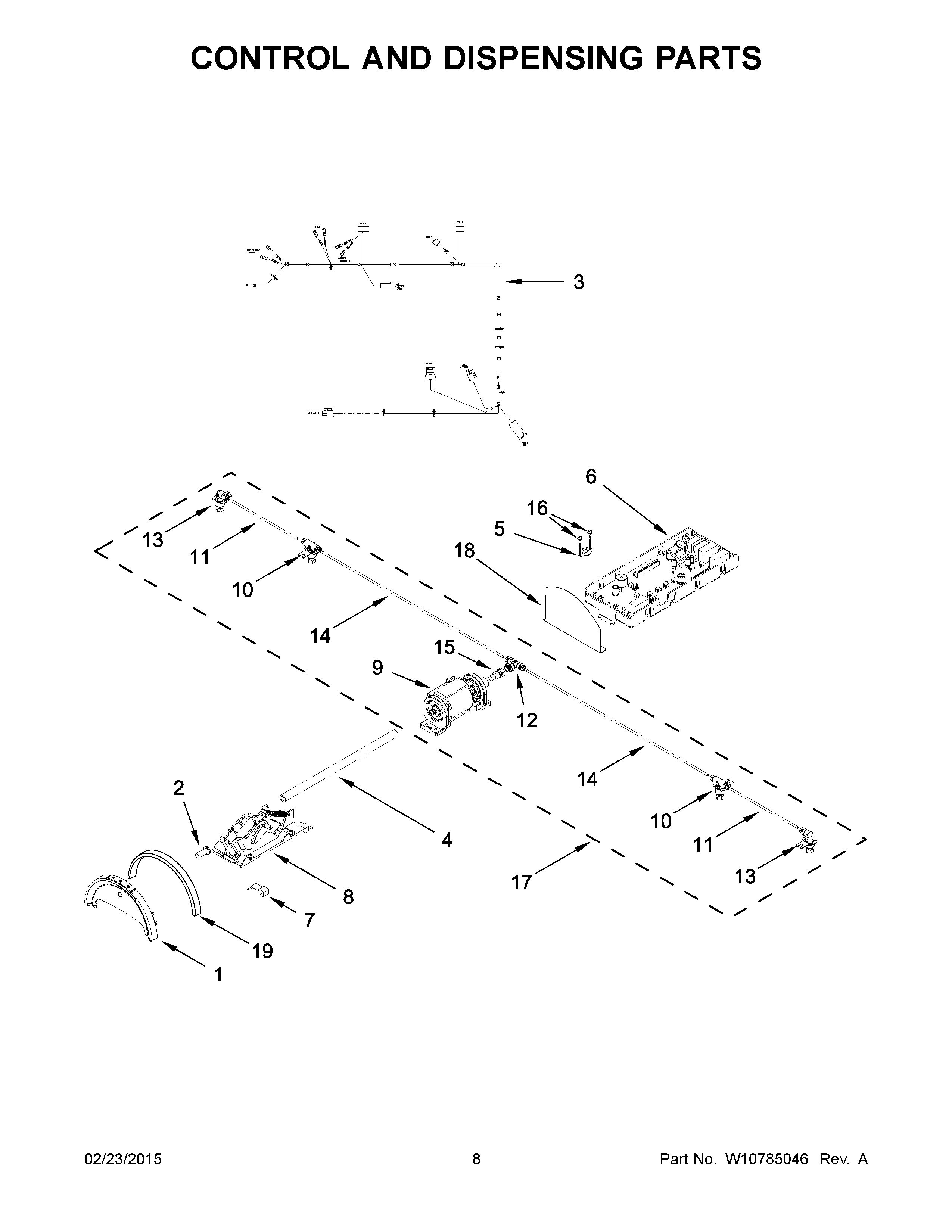

SFF1002CSA0 05 – CONTROL AND DISPENSING PARTS

Products

Position	Product
1	WPW10718139 Whirlpool Electronic Control Board + Core
1A	W10718140 Whirlpool Display
2	PLUNGER
3	WIRING HARNESS, MAIN
4	HOSE
5	WP8577274 Whirlpool Dryer Thermistor
6	WPW10556685-includeCORE Whirlpool WPW10556685 Refrigerator Electronic Control Board + Core
7	SHIELD, FRONT
8	W10570153 Whirlpool Dispenser
9	PUMP
10	NOZZLE, T BODY
11	NOZZLE HOSE
12	W10526570 Whirlpool T-Fitting
13	NOZZLE BODY
14	W10526572 Whirlpool Hose
15	NOZZLE
16	WP489069 Whirlpool Compactor Screw
17	W10621655 Whirlpool Hose Assembly
18	SHIELD, CCU
19	GASKET
