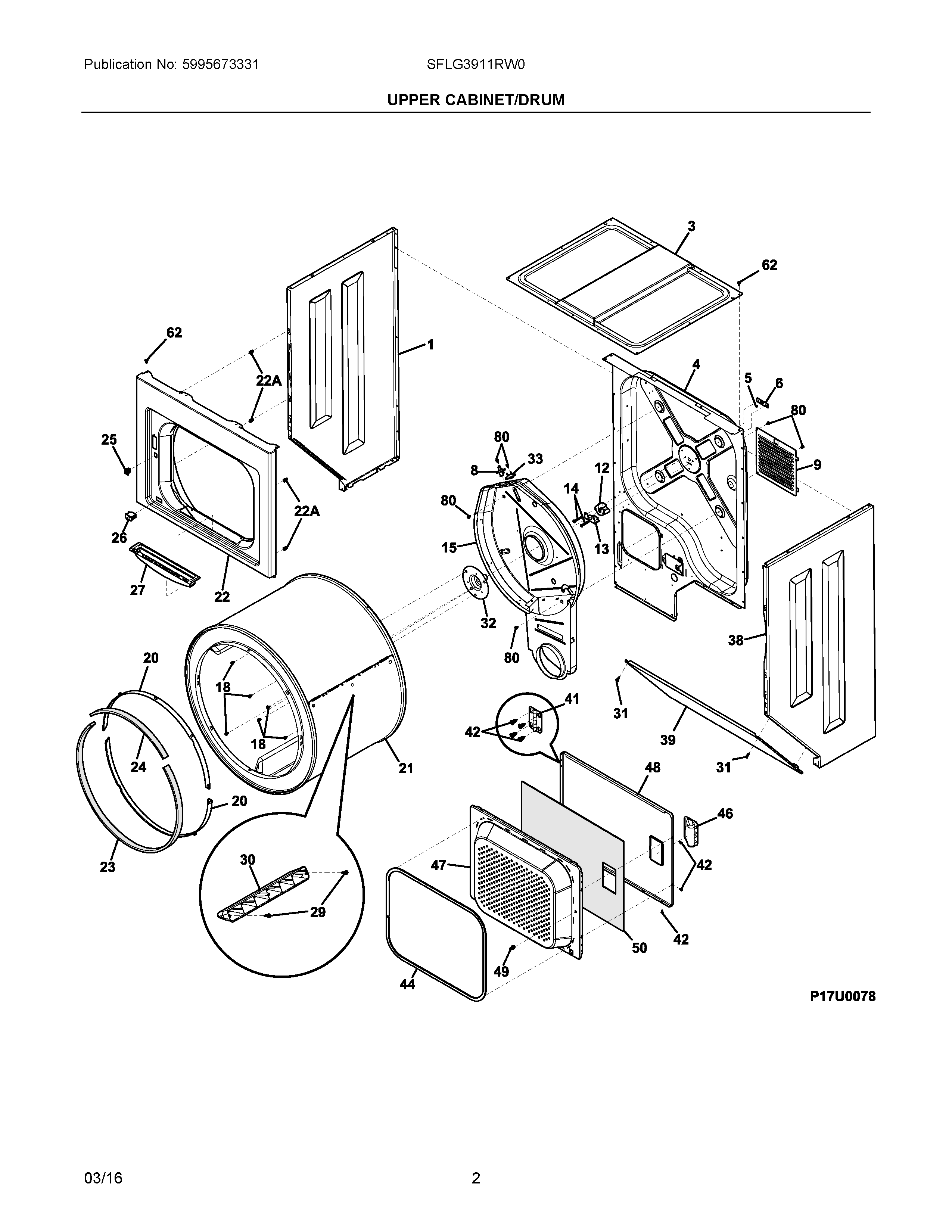

SFLG3911RW0 02 – UPPER CABINET/DRUM

SFLG3911RW0 02 – UPPER CABINET/DRUM

Written by

in

SFLG3911RW0 02 – UPPER CABINET/DRUM

Products

PositionProduct
NIA137576600 Frigidaire Dryer Hole Plug Light
NIA137328900 Frigidaire Wiring Harness
1137510410 Frigidaire Panel
3131883301 Frigidaire Panel
45304500431 Frigidaire Panel
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
8THERMAL LIMITER – GAS
95304488480 Frigidaire Panel
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15137470801 Frigidaire Heater Housing
18131168200 Frigidaire Dryer Screw
20137513300 Frigidaire Dryer Drum Glide
21WCI 134122546
22A137362600 Frigidaire Pin
22WCI 137511810
235303937183 Frigidaire Dryer Lower Front Felt Seal
245303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25131658800 Frigidaire Dryer Door Catch Repair Kit
26134813600 Frigidaire Dryer Door Switch
27LINT FILTER
29131382300 Frigidaire Screw-VANE
30137552902 Frigidaire Vane
31131202300 Frigidaire Screw
32131777700 Frigidaire Dryer Bearing Drum
335304406099 Frigidaire Safety Thermostat
38137510510 Frigidaire Panel
39137546910 Frigidaire Panel
41134222900 Frigidaire Dryer Door Hinge
42134156200 Frigidaire Screw
44137551901 Frigidaire Gasket
46131789400 Frigidaire Handle
47137365110 Frigidaire Panel
48137408403 Frigidaire Panel Assembly
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
62131302800 Frigidaire Drum Vane Screw
