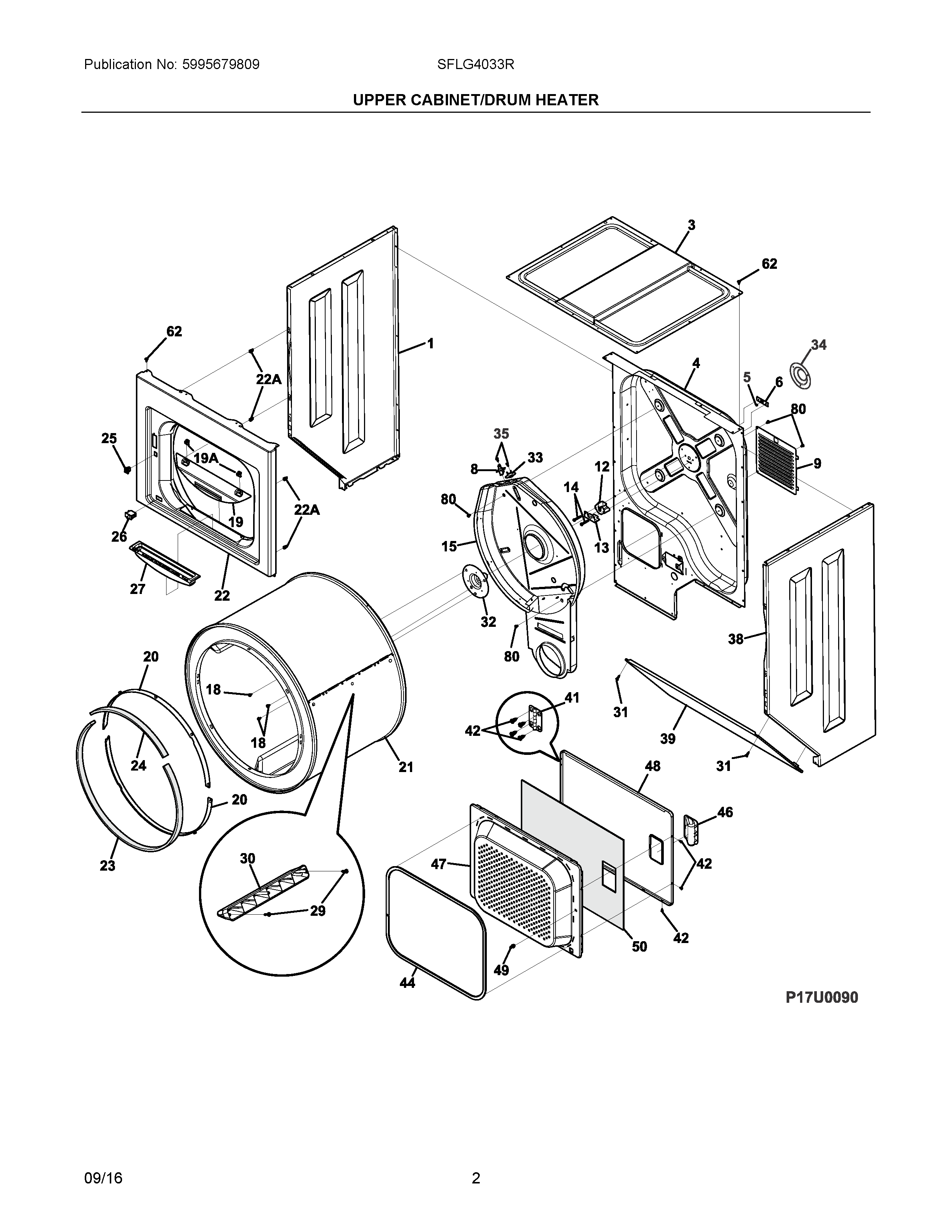

SFLG4033RW1 02 – UPPER CABINET/DRUM HEATER

Products

Position	Product
NI	137352600 Frigidaire Harness
NIA	SEAL, EXHAUST TUBE
1	137510410 Frigidaire Panel
3	131883301 Frigidaire Panel
4	5304500431 Frigidaire Panel
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
8	THERMAL LIMITER – GAS
9	5304488480 Frigidaire Panel
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	137470801 Frigidaire Heater Housing
18	5304502598 Frigidaire Screw
19A	CLIP (8)
19	131729301 Frigidaire Cover
20	137513300 Frigidaire Dryer Drum Glide
21	134122545 Frigidaire Drum
22	137552110 Frigidaire Panel
22A	137362600 Frigidaire Pin
23	5303937183 Frigidaire Dryer Lower Front Felt Seal
24	5303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813600 Frigidaire Dryer Door Switch
27	LINT FILTER
29	131382300 Frigidaire Screw-VANE
30	137552902 Frigidaire Vane
31	131202300 Frigidaire Screw
32	131777700 Frigidaire Dryer Bearing Drum
33	5304406099 Frigidaire Safety Thermostat
34	5304506372 Frigidaire Cover Plate
35	131243700 Frigidaire Screw
38	137510510 Frigidaire Panel
39	137546910 Frigidaire Panel
41	134222900 Frigidaire Dryer Door Hinge
42	134156200 Frigidaire Screw
44	137551901 Frigidaire Gasket
46	131789400 Frigidaire Handle
47	137365110 Frigidaire Panel
48	137408403 Frigidaire Panel Assembly
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
62	131302800 Frigidaire Drum Vane Screw
80	131168200 Frigidaire Dryer Screw
