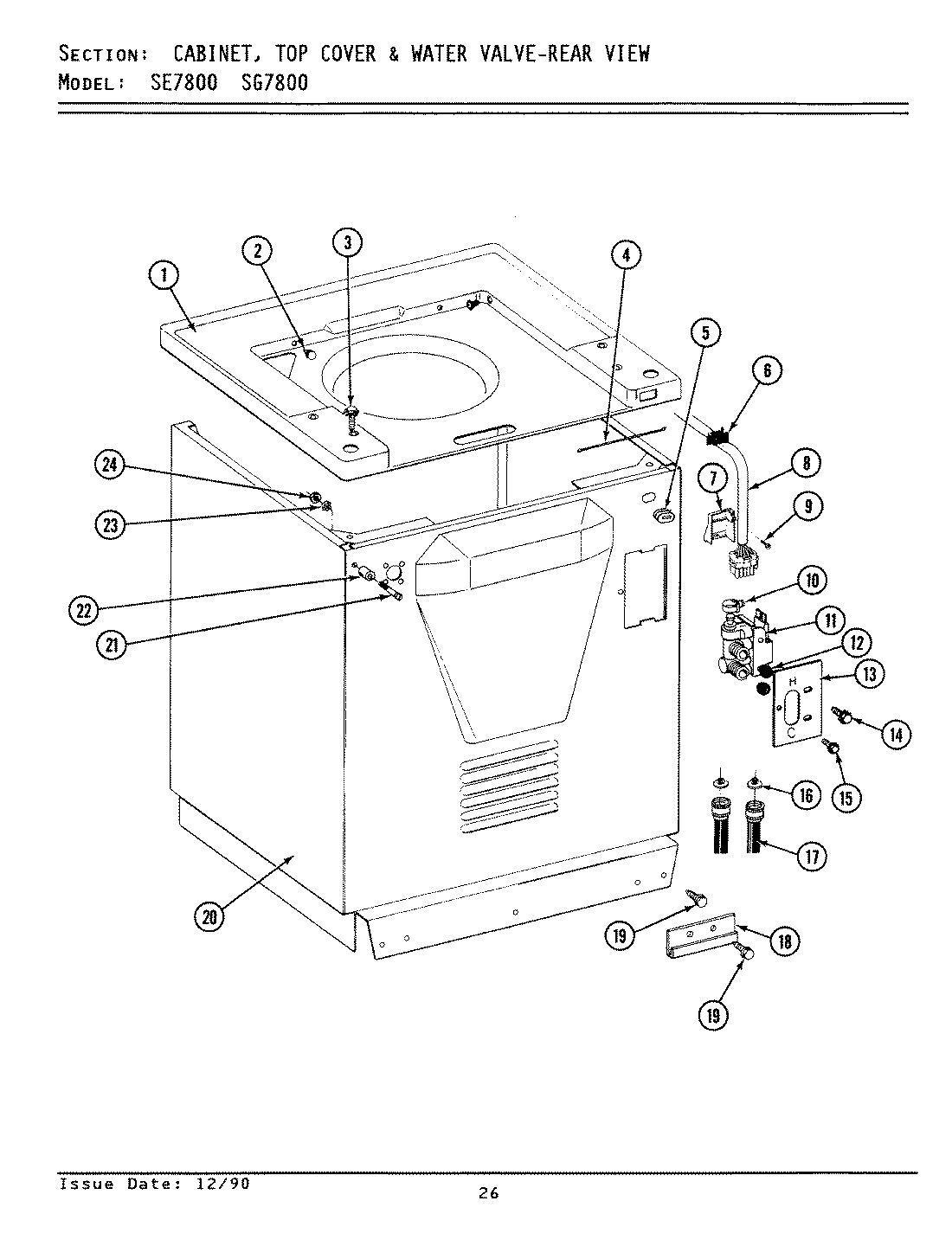

SG7800 05 – CABINET, TOP COVER & WATER VALVE (REAR)

SG7800 05 – CABINET, TOP COVER & WATER VALVE (REAR)

Written by

in

SG7800 05 – CABINET, TOP COVER & WATER VALVE (REAR)

Products

PositionProduct
1MAY 207579
2MAY 215247
3MAY 22001402
4MAY 215274
5MAY 215950
6MAY 215948
7MAY 215960
7MAY Y216003
8MAY 207784
9MAY 215953
10WP596669 Whirlpool Hose Clamp
11205613 Whirlpool Washer Water Inlet Valve
12WP96160 Whirlpool Washer Inlet Valve Screen
13MAY 215264
14MAY Y313561
15MAY 212276
16MAY 200961
17WP76314 Whirlpool Fill Hose
18MAY 215278
19WPW10346892 Whirlpool Screw
20MAY 207207
21MAY 215277
22MAY 215276
23MAY 310557
24MAY Y052659
