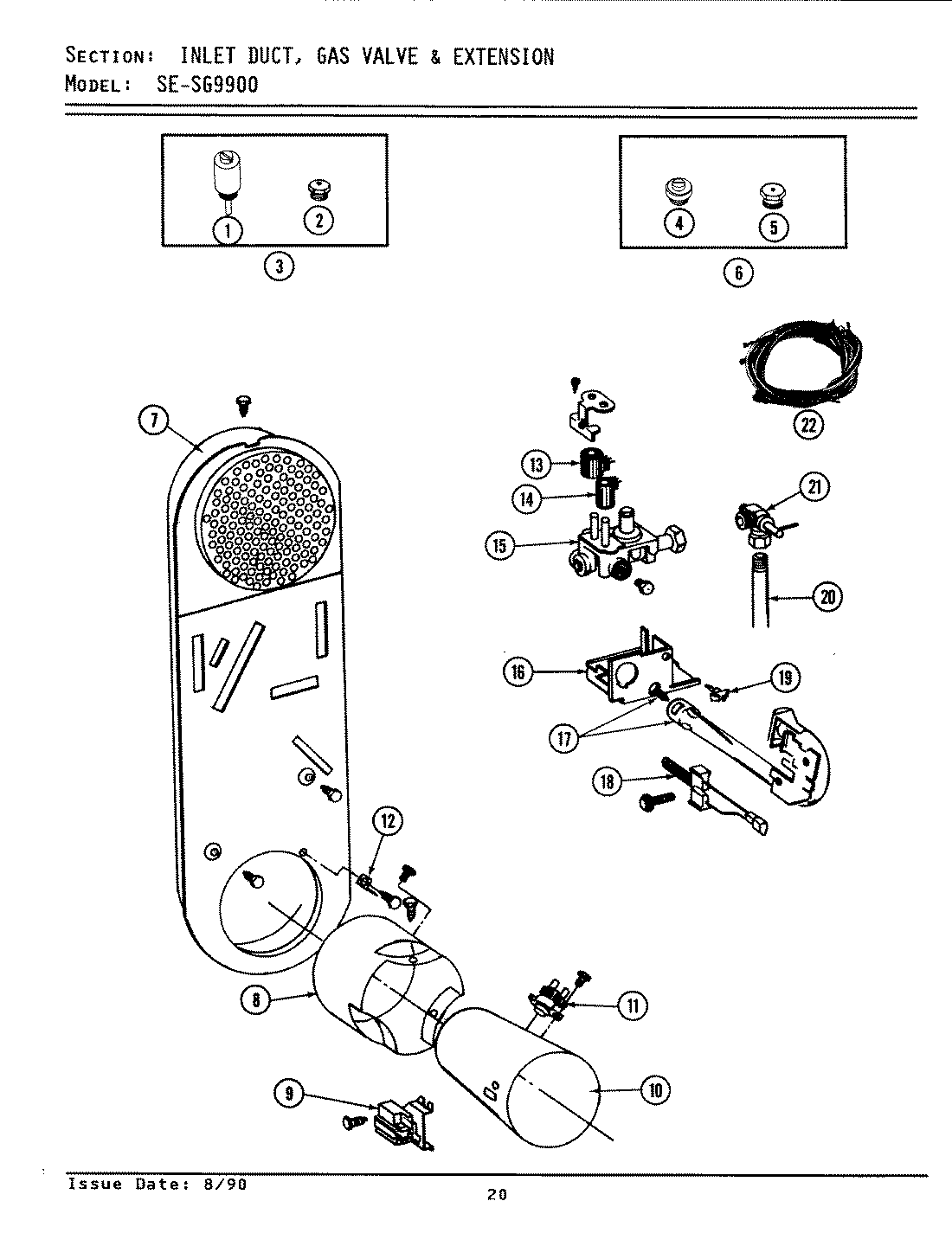

SG9900 10 – INLET DUCT, GAS VALVE & EXT. (SG9900)

SG9900 10 – INLET DUCT, GAS VALVE & EXT. (SG9900)

Written by

in

SG9900 10 – INLET DUCT, GAS VALVE & EXT. (SG9900)

Products

PositionProduct
1MAY 306184
2MAY 311640
3MAY 306205
4WP694424 Whirlpool Limiter
5MAY 314603
6MAY 306206
7MAY Y303369
8MAY 314509
9WP338906 Whirlpool Dryer Gas Sensor
10MAY Y303368
11WP303395 Whirlpool Thermostat
12MAY Y312890
12WP90767 Whirlpool Screw
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15MAY 306084
15MAY 314082
16MAY 314508
17WP3177991 Whirlpool Screw
17MAY 306162
184391996 Whirlpool Dryer Flat Igniter
18MAY 304971
19MAY Y313262
20MAY 310454
21MAY 306086
22MAY 306090
