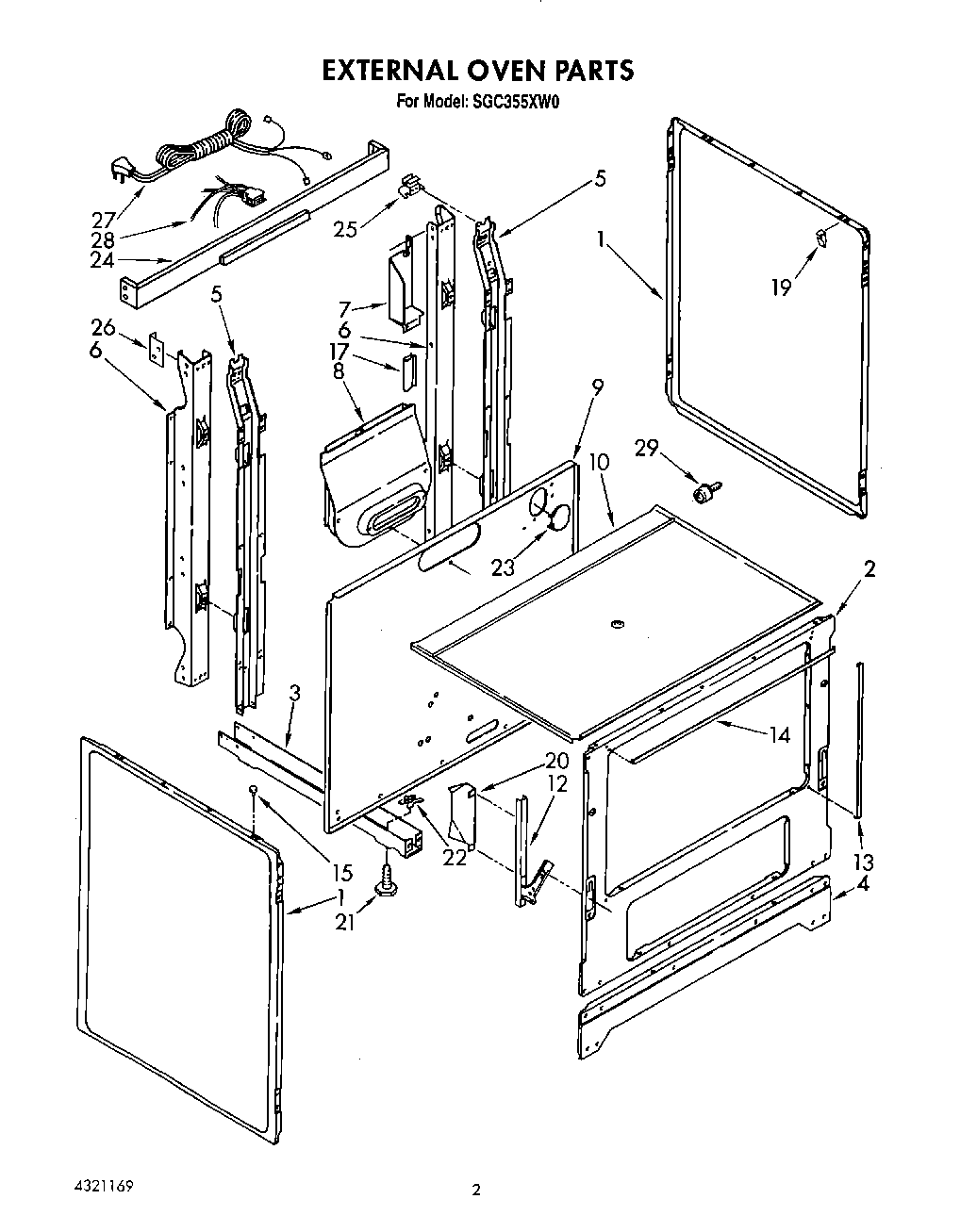

SGC355XW0 02 – EXTERNAL OVEN, LIT/OPTIONAL
Written by
in
SGC355XW0 02 – EXTERNAL OVEN, LIT/OPTIONAL
Products
Position
Product
List, Repair Parts
Instuctions, Installation
Guide, Use & Care
1
Panel, Side (2)
2
Frame, Front
3
Rail, Base (2)
4
Screw, 10-12 X 1/2 (4)
4
Base, Front
5
Support, Main (2)
5
Screw, 10-32 X 1/2 (1)
6
Support, Rear (2)
7
Cover, Wire
7
Screw, 10-12 X 3/8 (2)
8
SCREW
8
Flue, Box
9
Panel, Rear
10
Burner Box
10
WP308685 Whirlpool Microwave Screw
12
Hinge. Door (2)
12
Screw, 10-24 X 3/8 (2)
13
Seal, Door (2) (Side)
14
Seal, Door (Top)
15
Bumper, Cooktop (2)
17
Safe Edge
19
Wire, Tie
20
Shield, Insulation
21
Leg, Leveler (4)
22
Nut (4)
23
Plug, Hole
24
Rail, Backguard
25
Bracket, Support (2)
26
Bracket, Mounting (L.H.)
26
Bracket, Mounting (R.H.)
27
WP9757891 Whirlpool Power Cord
28
Block, Disconnect
29
Locator Stud (2)
29
FOIL, ALUMINUM OVEN (18“ X 25 )
29
WPW10208653 Whirlpool Insulation
←
