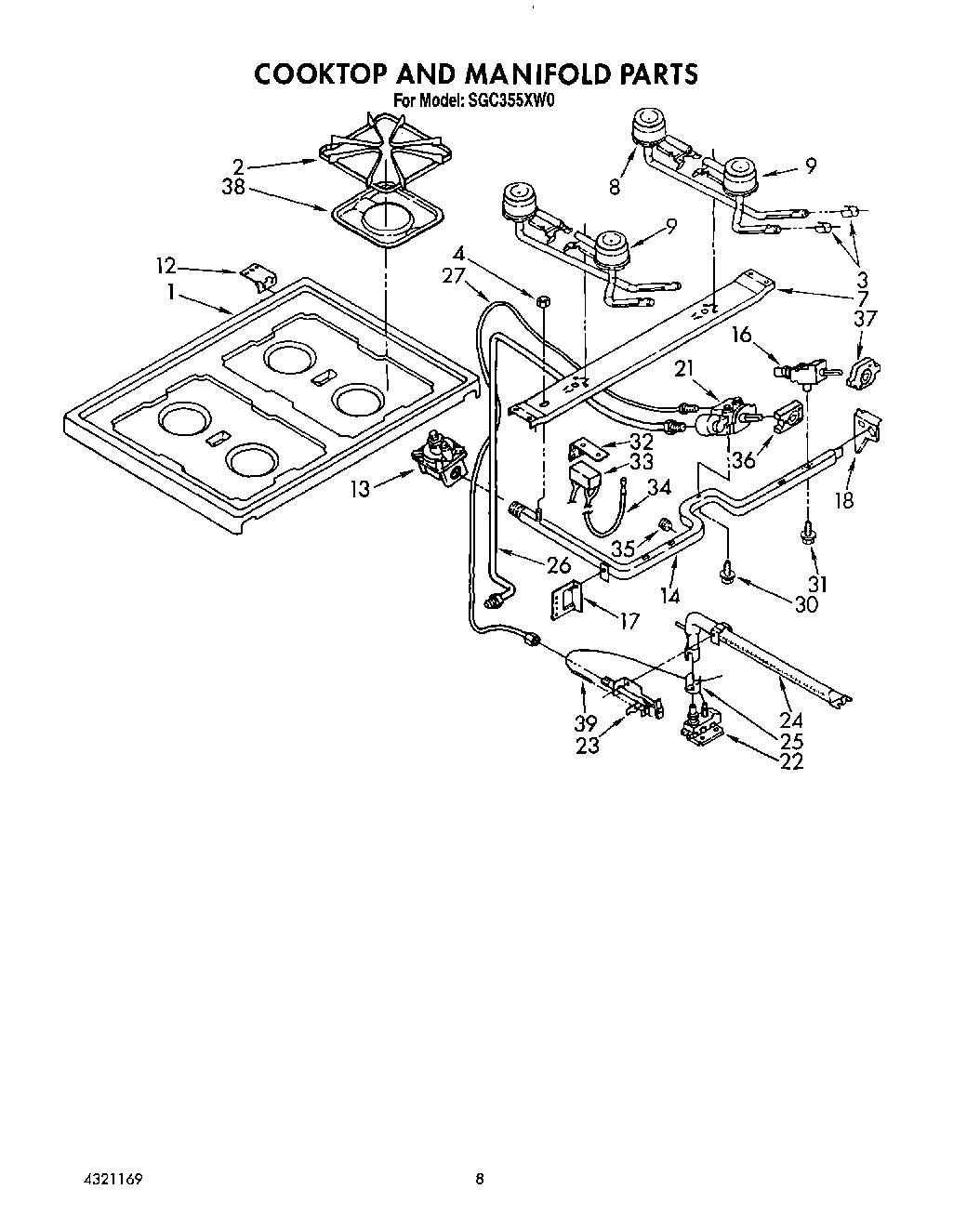

SGC355XW0 06 – COOKTOP AND MANIFOLD
Written by
in
SGC355XW0 06 – COOKTOP AND MANIFOLD
Products
Position
Product
1
Cooktop, Chrome
2
Grate (4)
3
Shutter, Air (4)
4
Nut, Hex
7
Support, Burner
8
Burner, Rear (2)
9
Screw, 10-12 X 3/8 (2)
9
Burner, Front (2)
12
WP693304 Whirlpool Screw
12
Bracket, Support (2)
13
Regulator, Pressure
14
Pipe, Manifold
16
Valve, 90~ (4) (Includes Ill. No. 33)
17
Support, Manifold (L.H.)
18
WP308685 Whirlpool Microwave Screw
18
Support, Manifold (R.H.)
21
Thermostat (Includes Ill. No. 30)
22
Valve, Safety
22
WP3387230 Whirlpool Screw
23
Pilot
23
Screw, 10-24 X 1/4 (1)
24
Burner, Oven
25
Shutter, Burner
26
Tubing 3/8“ (Thermostat To Safety Valve)
27
Tubing 3/16“ (Thermostat To Pilot)
30
Bolt, Thermostat Mounting (2)
31
Bolt, Valve Mounting
32
Plate, Spark Module
33
Module, Spark
34
Ignitor (L.H.)
34
Ignitor (R.H.)
35
W10295523 Whirlpool Plug
36
WP878009 Whirlpool Igniter Switch
37
WP4157180 Whirlpool Surface Burner Ignition Switch
38
Chrome Bowl (4)
39
Ignitor, Oven
←
