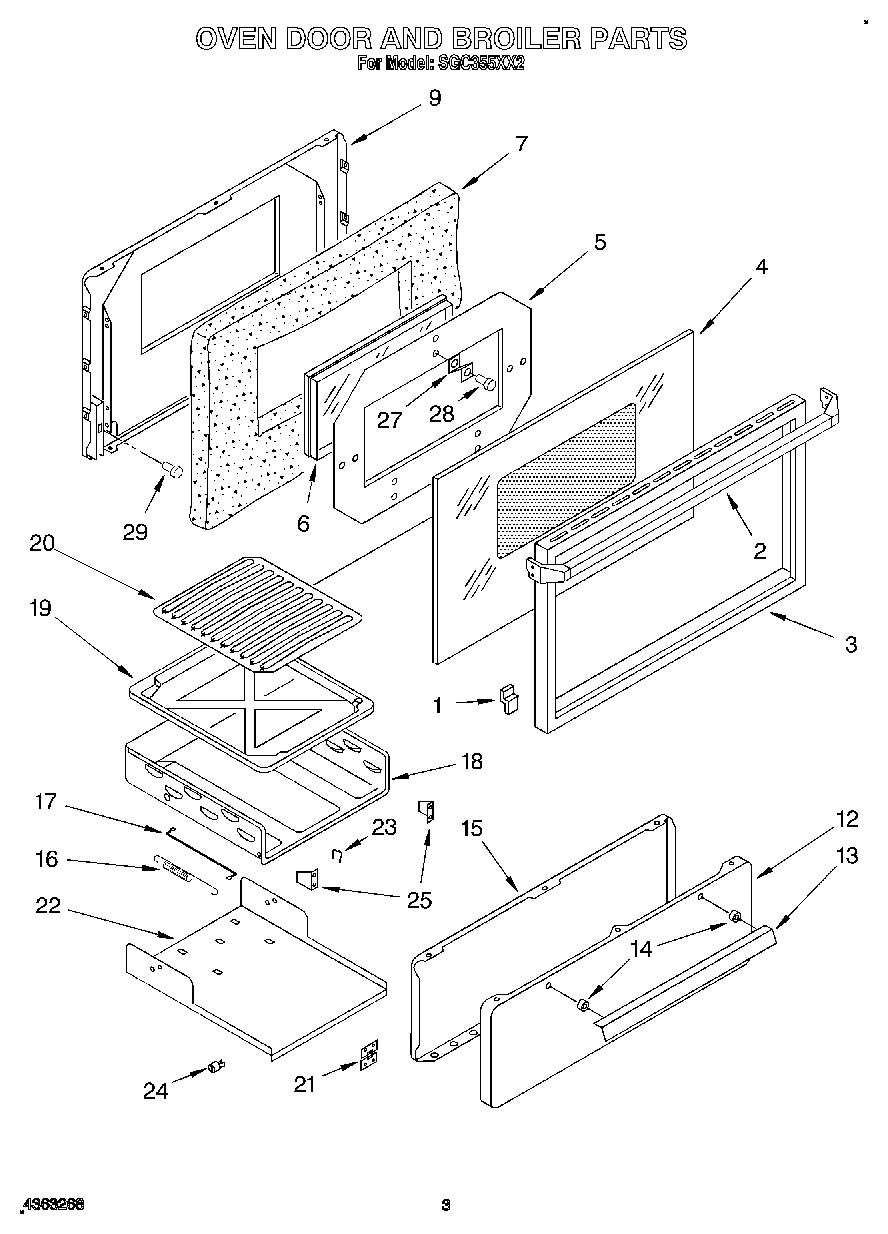

SGC355XX2 03 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper (4)
2	Handle
2	Screw, Door Handle
3	Frame, Door
4	Glass, Outer
5	Ring, Hold Down
6	Window
7	SCREW
7	Insulation
9	Liner, Door
12	WP308685 Whirlpool Microwave Screw
12	Panel, Broiler (White)
13	Screw
13	Handle
14	Spacer (2)
15	Liner, Broiler Door
16	Spring (2)
17	Rod, Push-Pull
18	Body, Brolier
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door
22	Carriage Broiler
23	Clip, Broiler
24	W10709871 Whirlpool Drawer Glide
25	Bracket
27	Bracket “Z“ (8)
28	Bumper, Rubber (2)
29	Bumper, Rubber (6)
