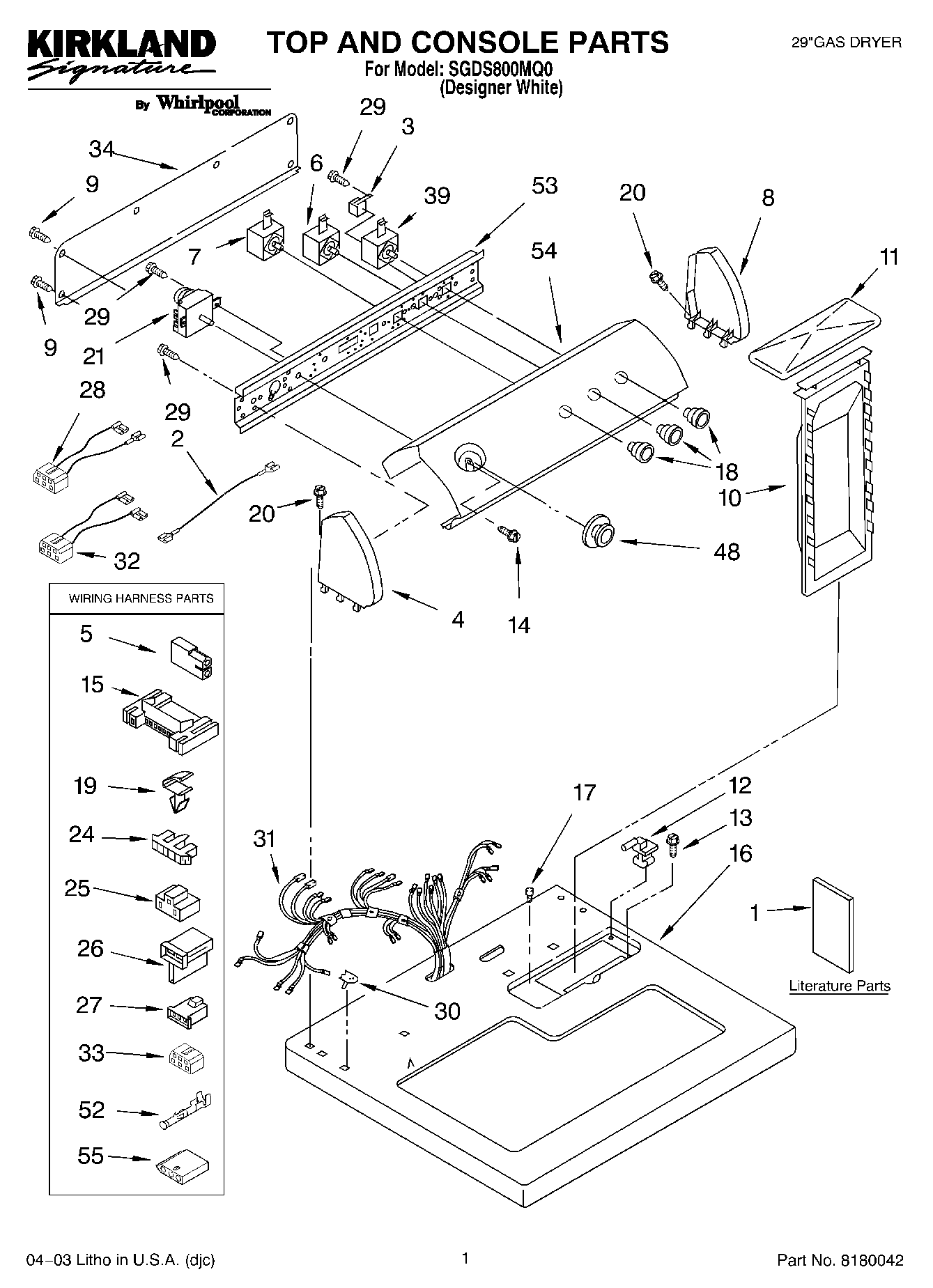

SGDS800MQ0 01 – TOP AND CONSOLE PARTS – OPTIONAL PARTS (NOT INCLUD

SGDS800MQ0 01 – TOP AND CONSOLE PARTS – OPTIONAL PARTS (NOT INCLUD

Written by

in

SGDS800MQ0 01 – TOP AND CONSOLE PARTS – OPTIONAL PARTS (NOT INCLUD

Products

PositionProduct
1Dryer
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Guide, Use & Care)
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
2Wire, Jumper (Tan)
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6WP3405156 Whirlpool Switch
7WP3399640 Whirlpool Switch
8279960 Whirlpool Endcap Assembly
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17Bumper, Lint Lid
18WP3957796 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
283397695 Whirlpool Wire Harness
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
32Wire-Jumper Assembly
33Block, Disconnect
34W10103406 Whirlpool Rear Panel
39Relay, Push To Start
48WP3957746 Whirlpool Knob Assembly
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
553936144 Whirlpool Connector
55350938 Whirlpool Spray Gun
5572017 Whirlpool Appliance Touch-Up Paint White
55799344 Whirlpool Refrigerator Paint
55KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
554392065 Whirlpool Dryer Maintenance Kit
55350930 Whirlpool White Spray Paint
55W11224254 Whirlpool Test Kit
55WPL ARI164107A
