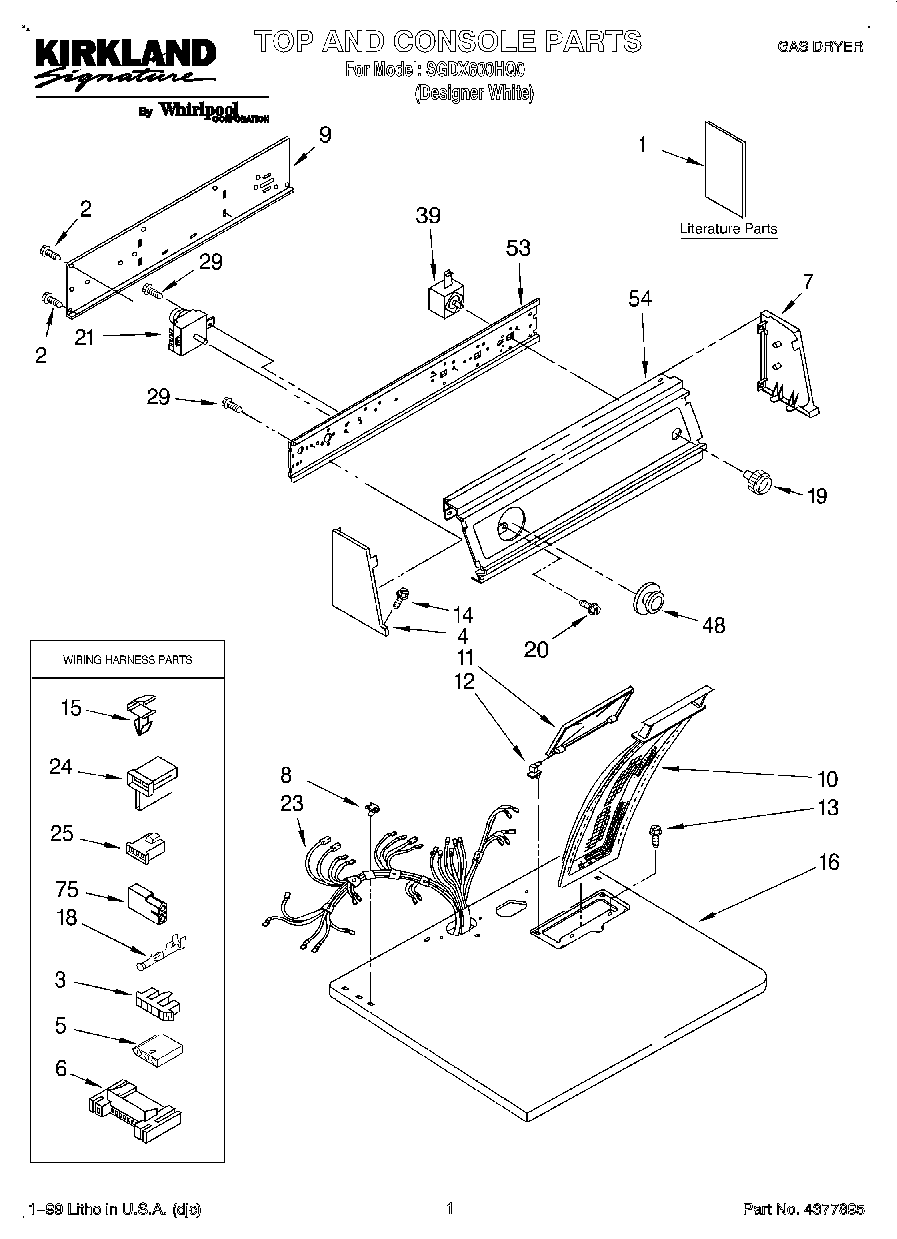

SGDX600HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

SGDX600HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

SGDX600HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Guide, Use & Care)
1Literature Parts (Wiring Diagram)
2WP693995 Whirlpool Screw
3Connector, Timer
4Cap, End (L.H.) (White)
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
9Panel, Rear Console
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top (White)
18WP94614 Whirlpool Terminal
19WP3957800 Whirlpool Knob
203400859 Whirlpool Screw
21Timer, 60 Hz.
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
39WP3395382 Whirlpool Push To Start Switch
48Timer Knob Assembly (White)
53Bracket, Control
54Panel, Control
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
75Almond (Uncut)
75WP72107 Whirlpool Touchup
75799344 Whirlpool Refrigerator Paint
7572017 Whirlpool Appliance Touch-Up Paint White
75350956 Whirlpool Spray Assembly
75350938 Whirlpool Spray Gun
75350930 Whirlpool White Spray Paint
