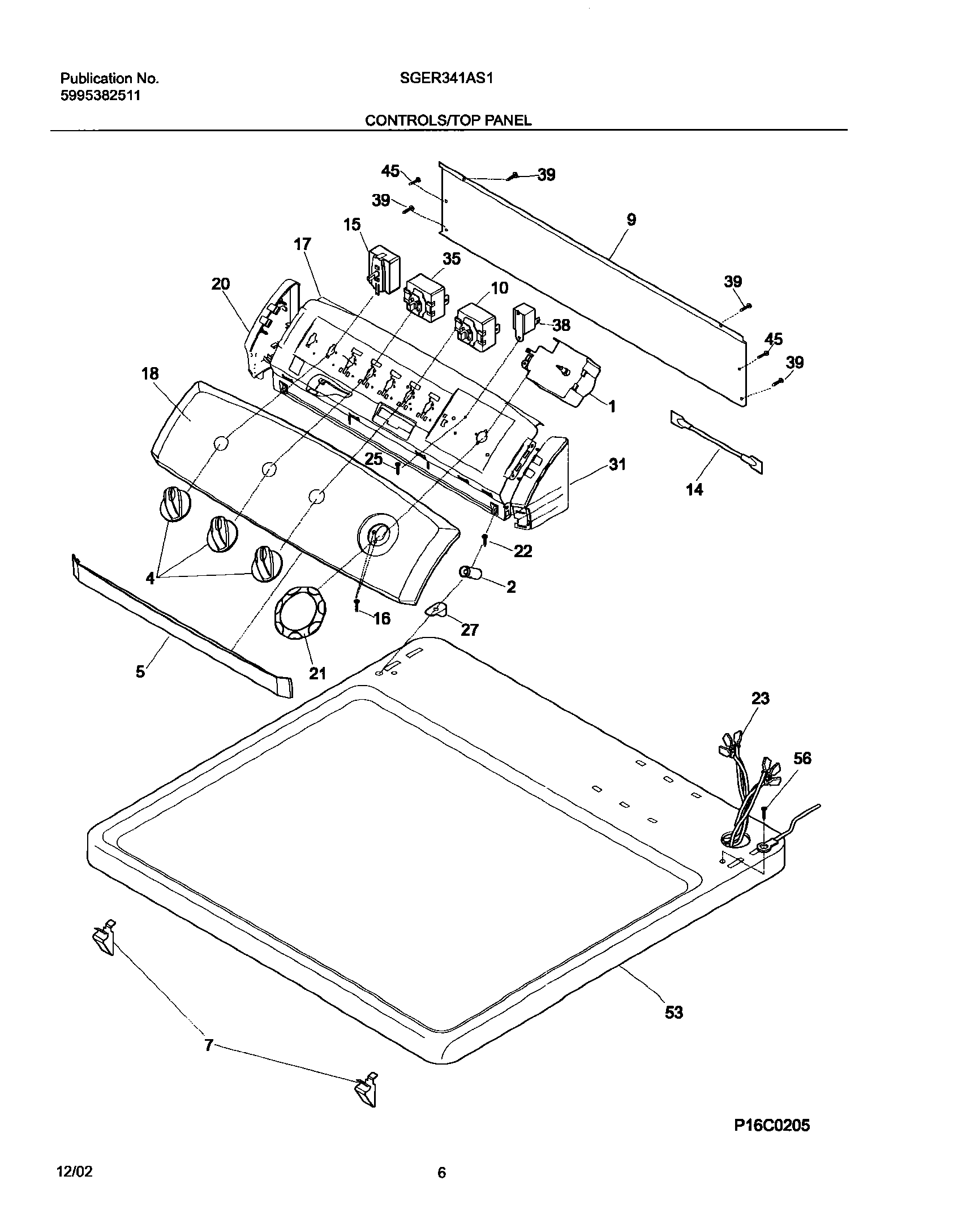

SGER341AS1 07 – CONTROLS/TOP PANEL

SGER341AS1 07 – CONTROLS/TOP PANEL

Written by

in

SGER341AS1 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NIWCI 131629600
1131719100 Frigidaire Timer Assembly
2WCI 134096100
4WCI 131786603
5WCI 134019900
73205821 Frigidaire Clip
9WCI 131992900
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
14RESISTOR-POWER, 4.4K
15WCI 131048100
16218359202 Frigidaire Refrigerator Screw
17Bracket,control mtg.
18WCI 134174300
20WCI 134019610
21WCI 131873203
22WCI 131266300
23Wiring Harness
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 134019600
35Switch,2 position
38WCI 131629400
39131168200 Frigidaire Dryer Screw
45131205100 Frigidaire Screw
53WCI 134086802
56131243800 Frigidaire Screw
