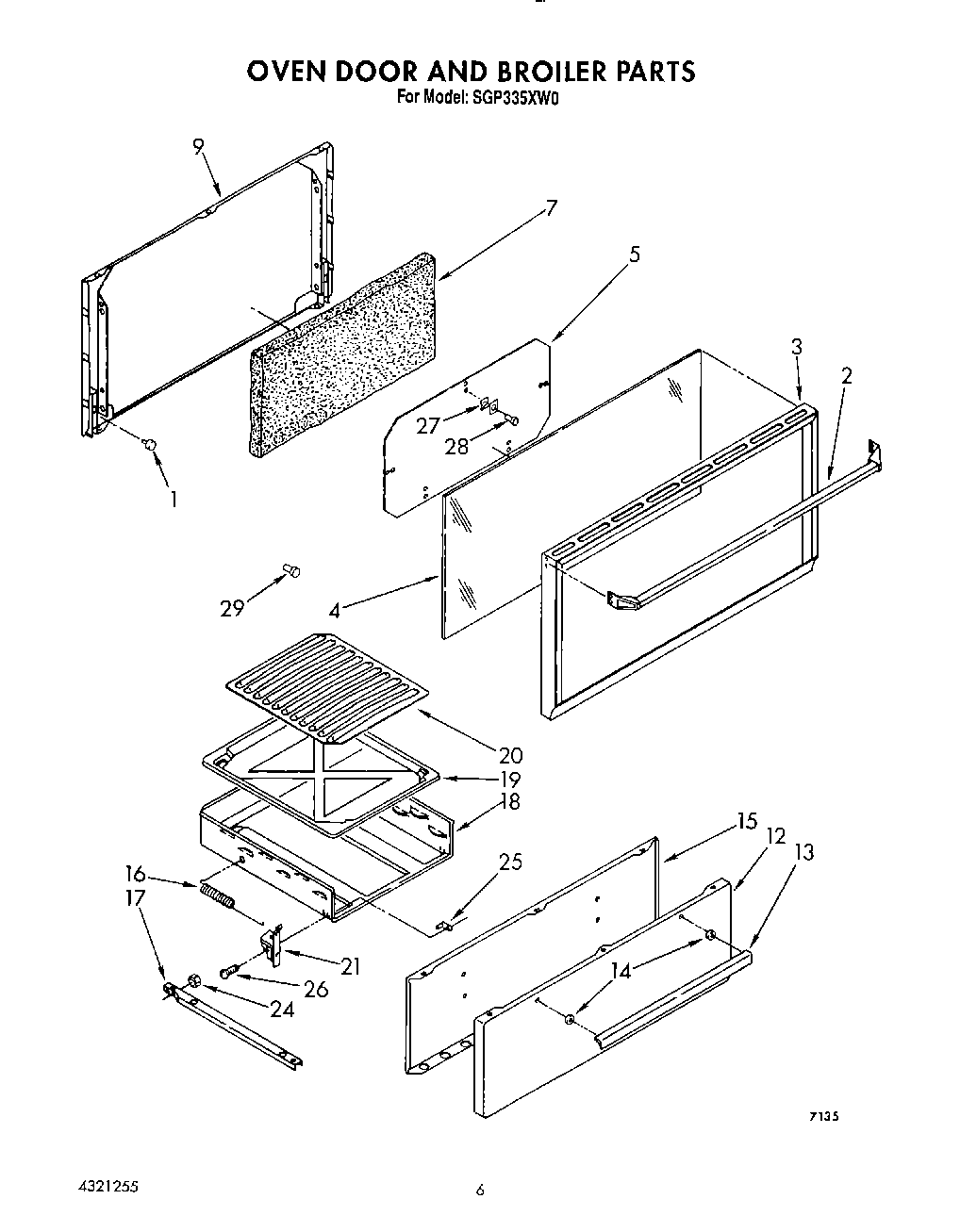

SGP335XW0 05 – OVEN DOOR AND BROILER

SGP335XW0 05 – OVEN DOOR AND BROILER

Written by

in

SGP335XW0 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bumper, Rubber (6)
2Screw, Door Handle
2Handle
3Frame, Door
4Glass
5Ring, Hold Down
7SCREW
7Insulation
9Liner, Door
13Handle
13Screw
14Spacer (2)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (Right Assy.)
17Track, Upper (Left Hand)
18Carriage, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21Hinge, Door (R.H.)
21Hinge, Door (L.H.)
21WP308685 Whirlpool Microwave Screw
24W10080180 Whirlpool Nut
25Plate (2)
26Screw (2)
27Bracket “Z“ (8)
28Bumper, Rubber (2)
29Bumper (4)
