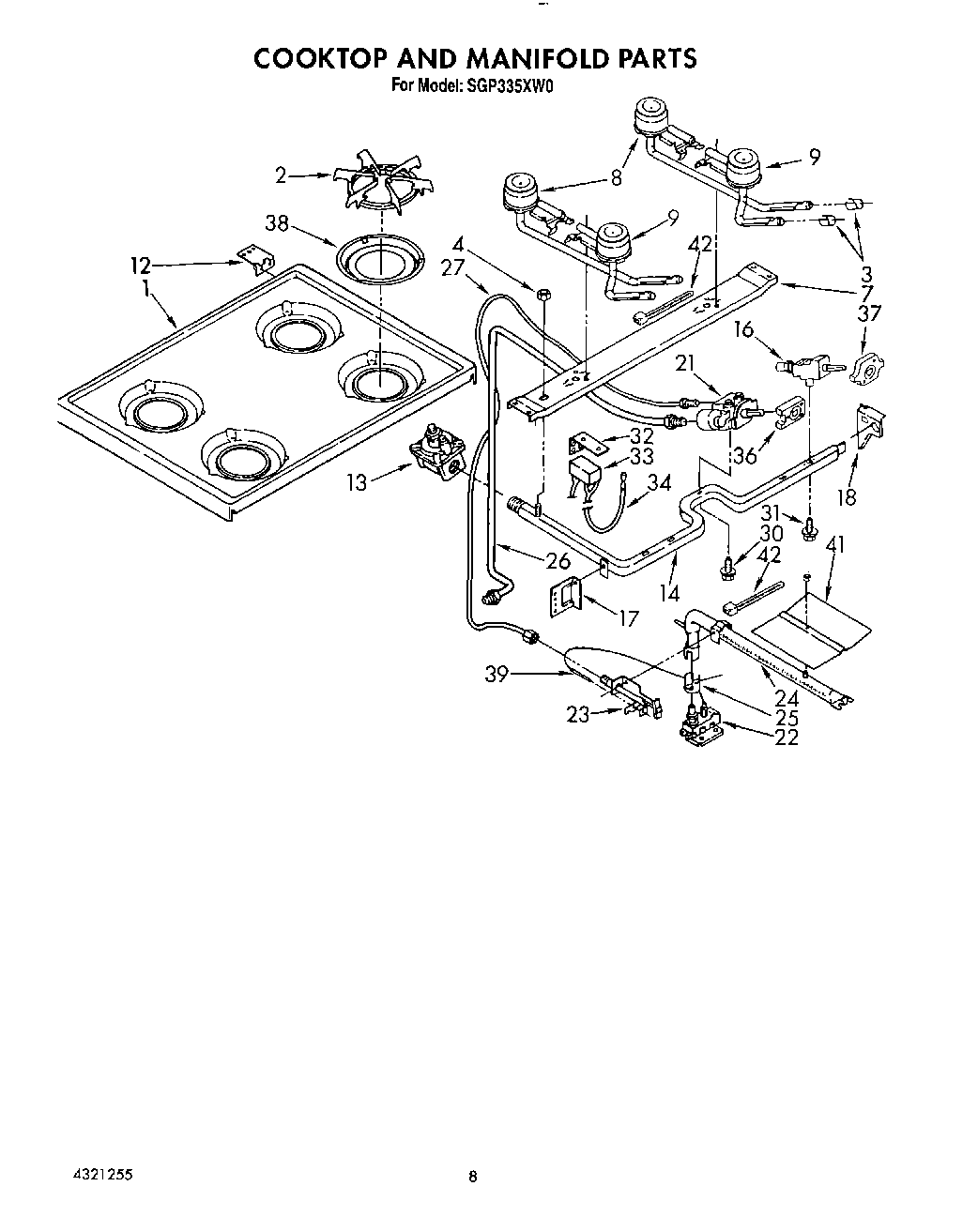

SGP335XW0 06 – COOKTOP AND MANIFOLD

Products

Position	Product
1	Cooktop, Chrome
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
12	Bracket, Support (2)
12	WP693304 Whirlpool Screw
13	Regulator, Pressure
14	Pipe, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
21	Thermostat (Includes Ill. No. 30)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
30	Bolt, Thermostat Mounting (2)
31	Bolt, Valve Mounting
32	Plate, Spark Module
33	Module, Spark
34	Ignitor (L.H.)
34	Ignitor (R.H.)
36	WP878009 Whirlpool Igniter Switch
37	WP4157180 Whirlpool Surface Burner Ignition Switch
38	Chrome Bowl (4)
39	Ignitor, Oven
41	Spreader, Flame
41	W10080180 Whirlpool Nut
42	Wire, Tie
