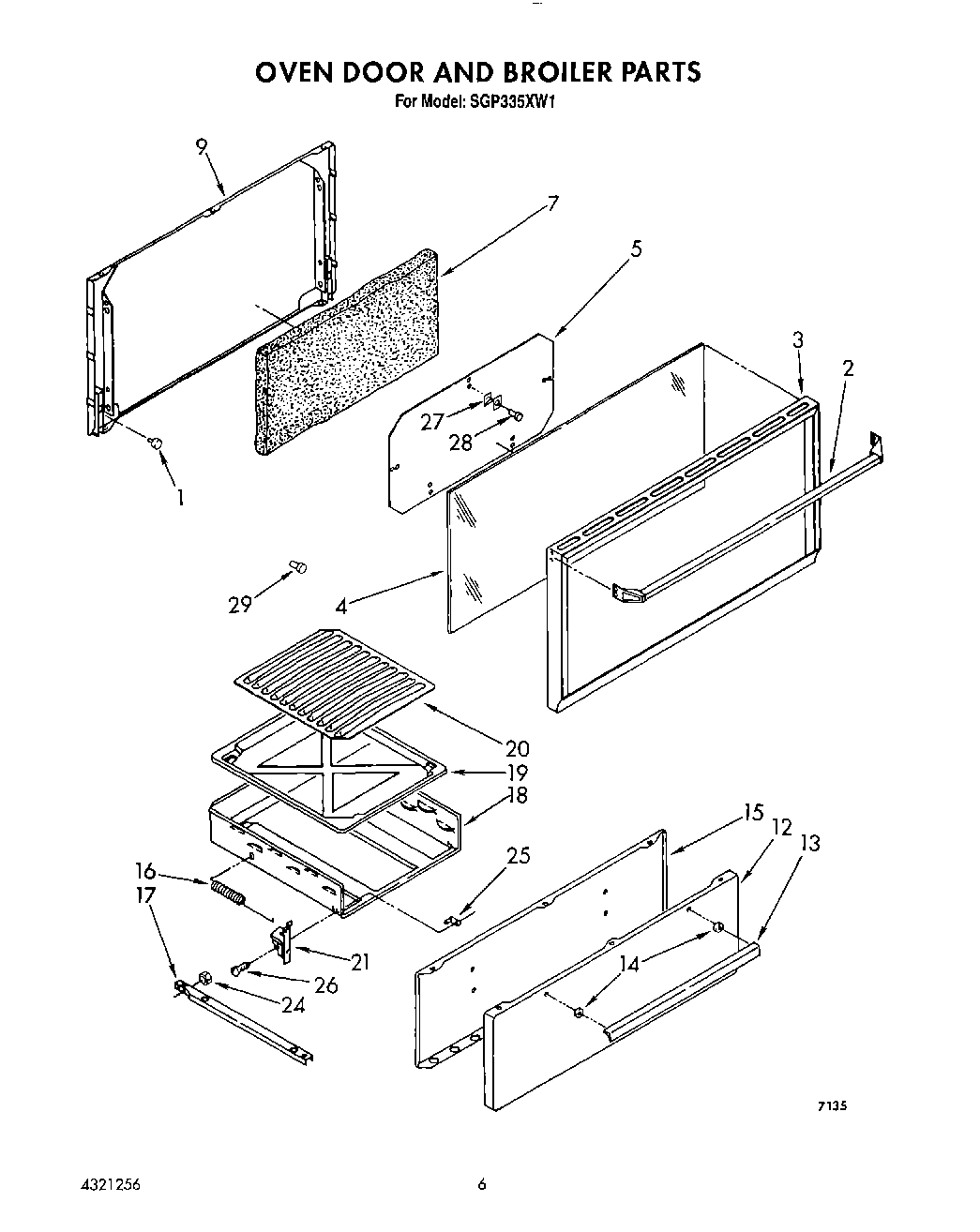

SGP335XW1 05 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Screw, Door Handle
2	Handle
3	Frame, Door
4	Glass
5	Ring, Hold Down
7	SCREW
7	Insulation
9	Liner, Door
13	Handle
13	Screw
14	Spacer (2)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (Right Assy.)
17	Track, Upper (Left Hand)
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door (R.H.)
21	Hinge, Door (L.H.)
21	WP308685 Whirlpool Microwave Screw
23	Pin, Roller (2)
24	W10080180 Whirlpool Nut
25	Plate (2)
26	Screw (2)
27	Bracket “Z“ (8)
28	Bumper, Rubber (2)
29	Bumper (4)
