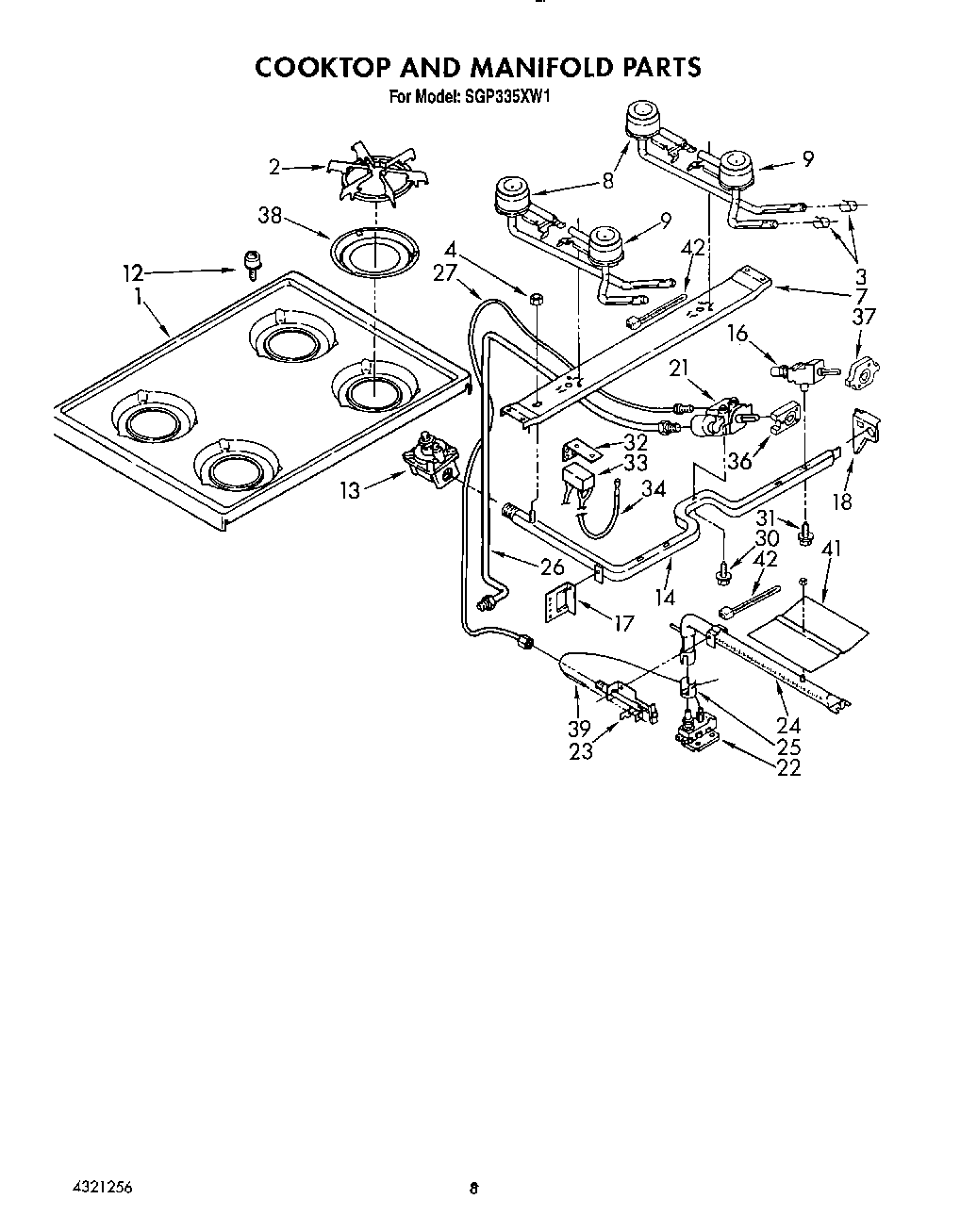

SGP335XW1 06 – COOKTOP AND MANIFOLD

Products

Position	Product
1	Cooktop, Chrome
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
12	Locator Stud (2)
13	Regulator, Pressure
14	Pipe, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
21	Thermostat (Includes Ill. No. 30)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
30	Bolt, Thermostat Mounting (2)
31	Bolt, Valve Mounting
32	Plate, Spark Module
33	Module, Spark
34	Ignitor (R.H.)
34	Ignitor (L.H.)
36	WP878009 Whirlpool Igniter Switch
37	WP4157180 Whirlpool Surface Burner Ignition Switch
38	Chrome Bowl (4)
39	Ignitor, Oven
41	W10080180 Whirlpool Nut
41	Spreader, Flame
42	Wire, Tie
