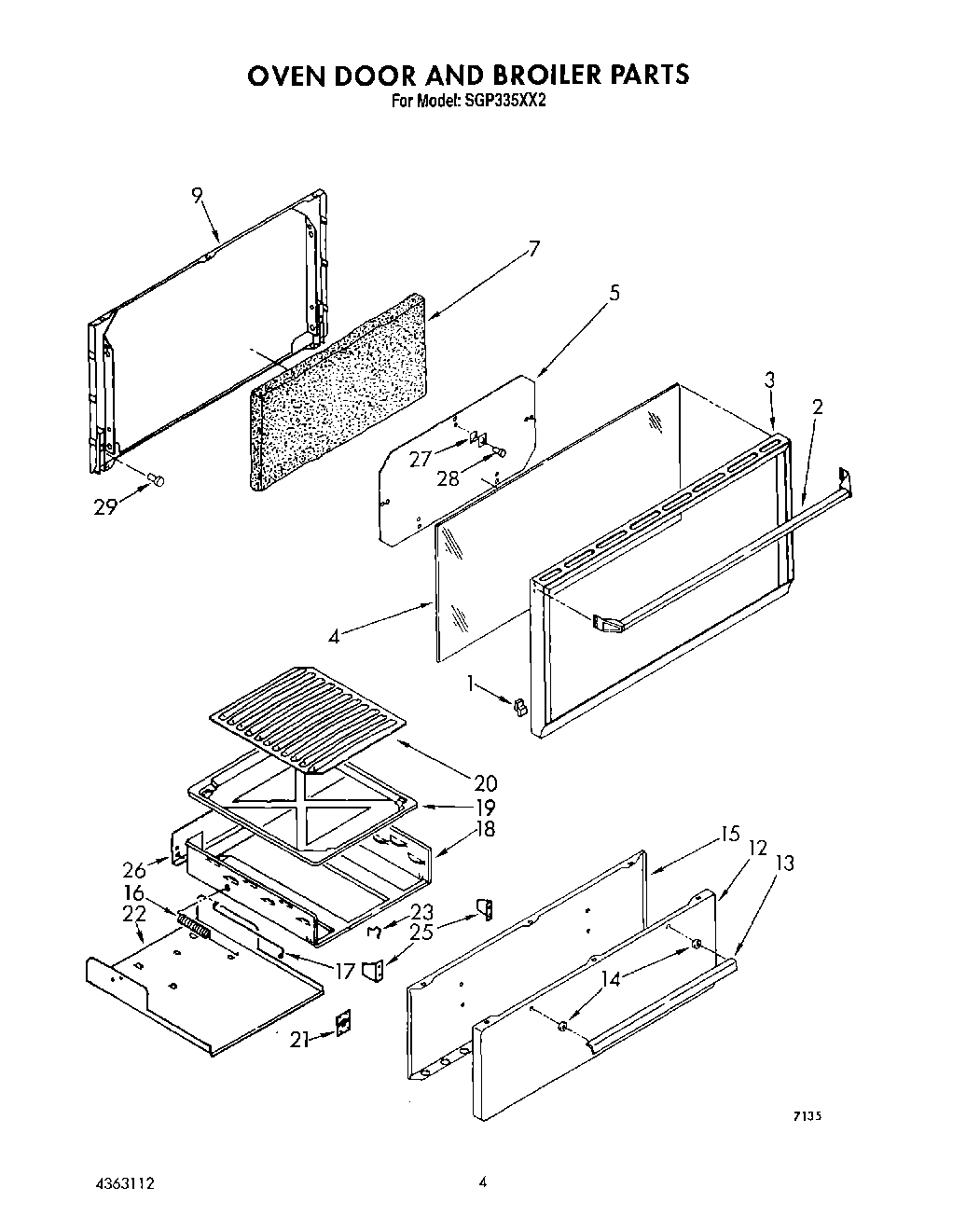

SGP335XX2 04 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bumper (4)
2Screw, Door Handle
2Handle
3Frame, Door
4Glass
5Ring, Hold Down
7SCREW
7Insulation
9Liner, Door
12Panel, Broiler (White)
13Screw
13Handle
14Spacer (2)
15Liner, Broiler Door
16Spring (2)
17Rod, Push-Pull
18WP308685 Whirlpool Microwave Screw
18Carriage, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21Hinge, Door
22Carriage Broiler
23Clip, Broiler
25Bracket
26Backer, Carriage
26Screws (3)
27Bracket “Z“ (8)
28Bumper, Rubber (2)
29Bumper, Rubber (6)
