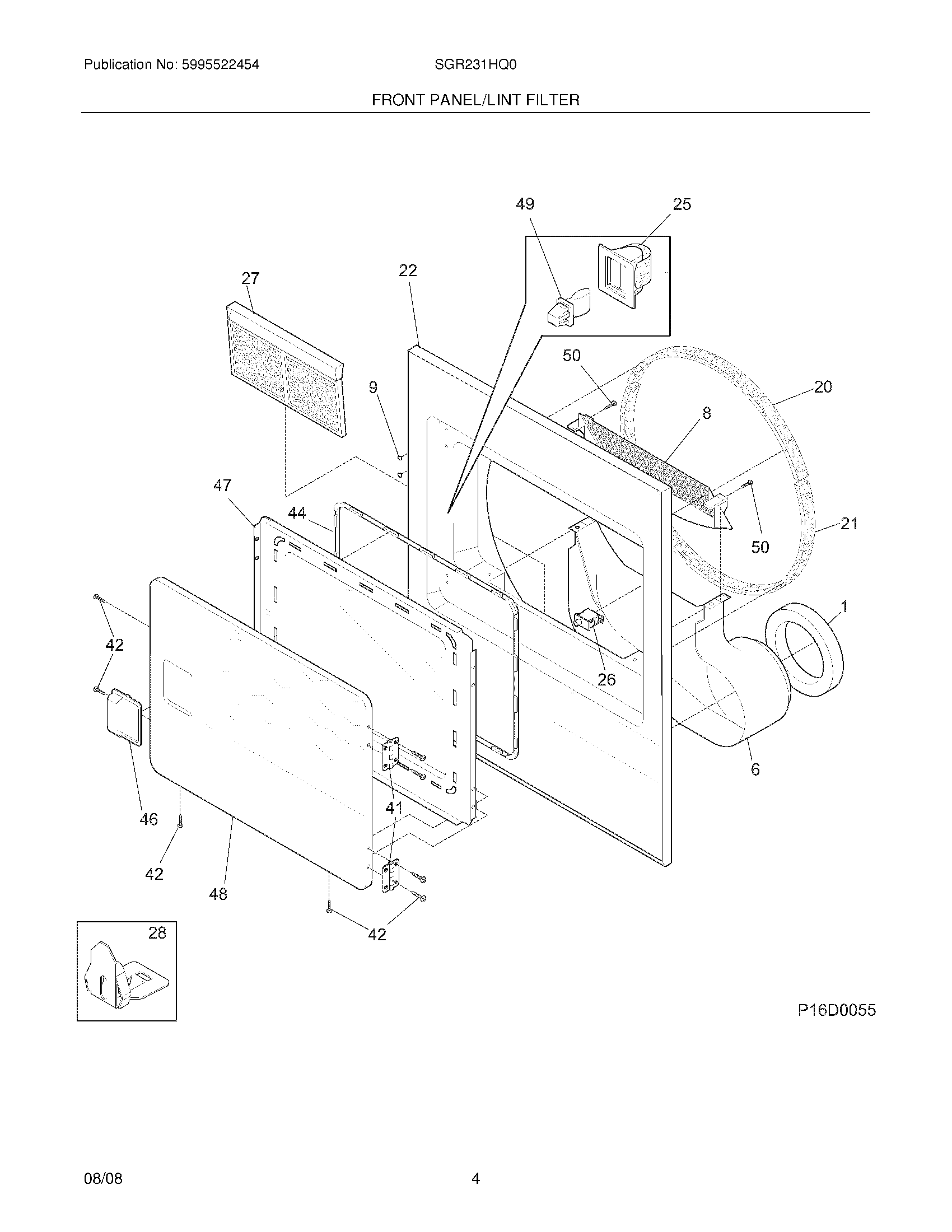

SGR231HQ0 05 – FRONT PANEL/LINT FILTER

Products

Position	Product
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
NI	WCI 131474700
NI	137576600 Frigidaire Dryer Hole Plug Light
NI	131168200 Frigidaire Dryer Screw
1	134417000 Frigidaire Seal
6	WCI 131621900
8	131622202 Frigidaire Dryer Lint Screen Housing Cover
9	WCI 131633202
20	134440200 Frigidaire Seal Felt Drum
21	5303937183 Frigidaire Dryer Lower Front Felt Seal
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813600 Frigidaire Dryer Door Switch
27	131450300 Frigidaire Dryer Lint Screen Filter
28	WCI 134440000
41	134222900 Frigidaire Dryer Door Hinge
42	134156200 Frigidaire Screw
44	137551901 Frigidaire Gasket
46	WCI 131644702
47	WCI 131844104
48	Door-outer bsq dryer & LC
49	5303207102 Frigidaire Door Strike
50	131302800 Frigidaire Drum Vane Screw
