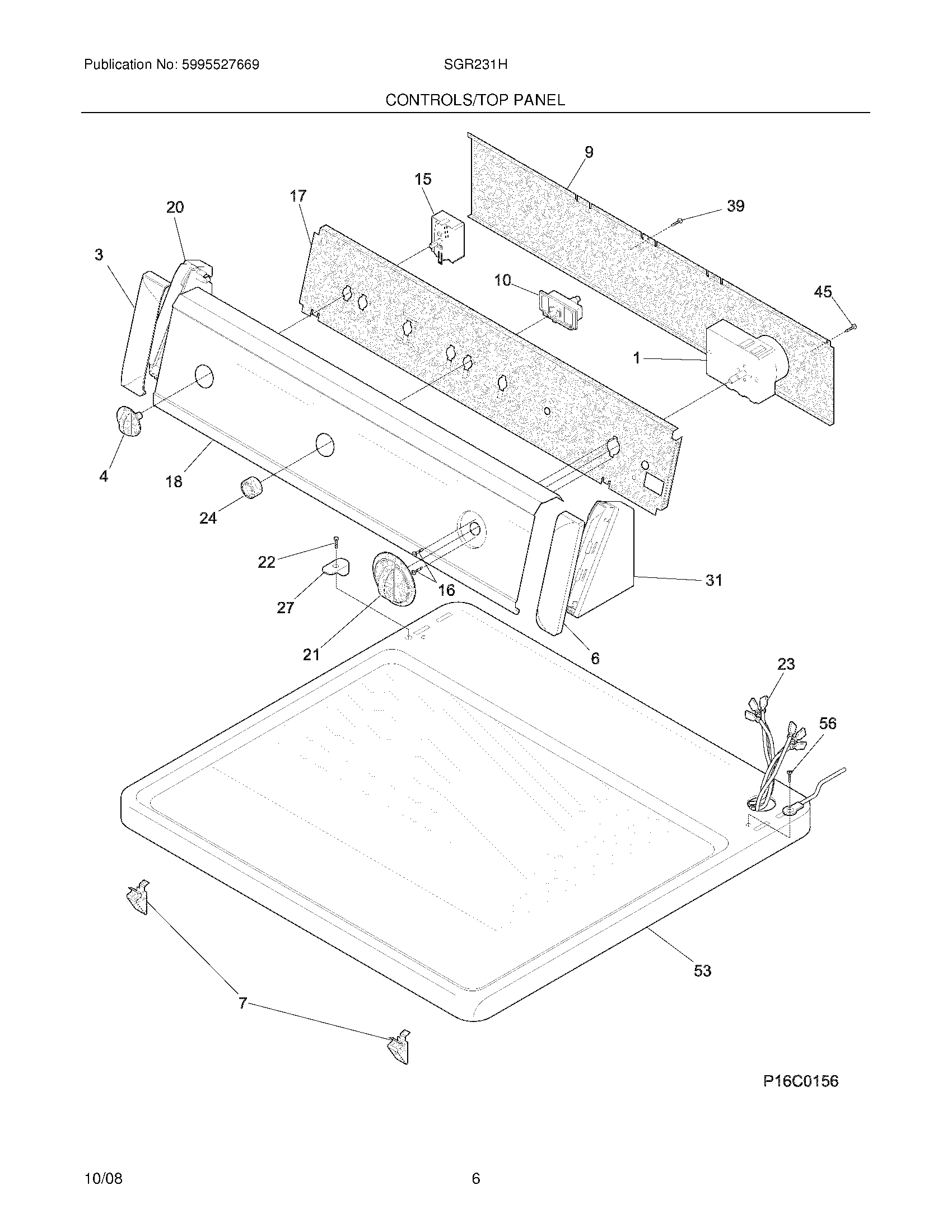

SGR231HQ1 07 – CONTROLS/TOP PANEL

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
1	TIMER
3	WCI 131122613
4	131858004 Frigidaire Control Knob, White
6	WCI 131122603
7	3205821 Frigidaire Clip
9	WCI 134088700
10	131469000 Frigidaire Switch-Push/Start P1
15	WCI 134398400
16	218359202 Frigidaire Refrigerator Screw
17	WCI 134487900
18	WCI 137001900
20	WCI 131122713
21	WCI 134011704
22	WCI 131266330
23	Wiring Harness
24	Button,start switch ,bisque ,push type
27	CLIP-CONSOLE MTG
31	WCI 131122703
39	131243700 Frigidaire Screw
45	131205100 Frigidaire Screw
53	Panel,dryer top ,bisque ,console mtg
56	131243800 Frigidaire Screw
