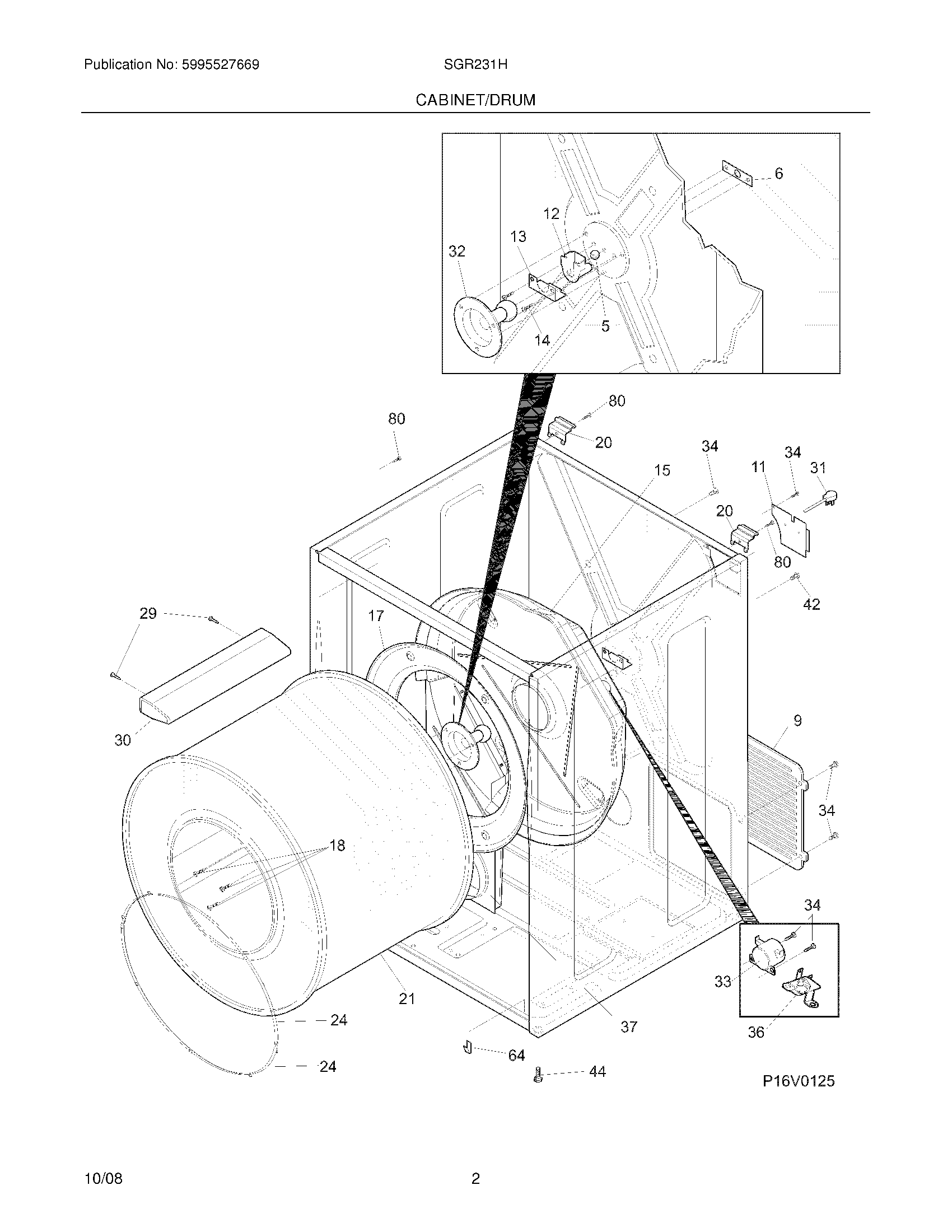

SGR231HS1 03 – CABINET/DRUM

Products

Position	Product
NI	WCI 5303281153]
NI	5303307893 Frigidaire HI TEMP Rear Bearing Lubricant Kit
NI	WCI 137061900
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	WCI 131793200
11	WCI 131363200
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	WCI 137137200
17	3204254 Frigidaire Baffle Assembly
18	131168200 Frigidaire Dryer Screw
20	WCI 131469100
21	134122532 Frigidaire P-1 Assembly Drum Galv + O/S3 Xxx
24	137513300 Frigidaire Dryer Drum Glide
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	WCI 134501200
32	131777700 Frigidaire Dryer Bearing Drum
33	5308015399 Frigidaire P-1 THERMSTAT-Safety
34	131243700 Frigidaire Screw
36	THERMAL LIMITER - GAS
37	WCI 131952100
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
44	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
64	CLIP
