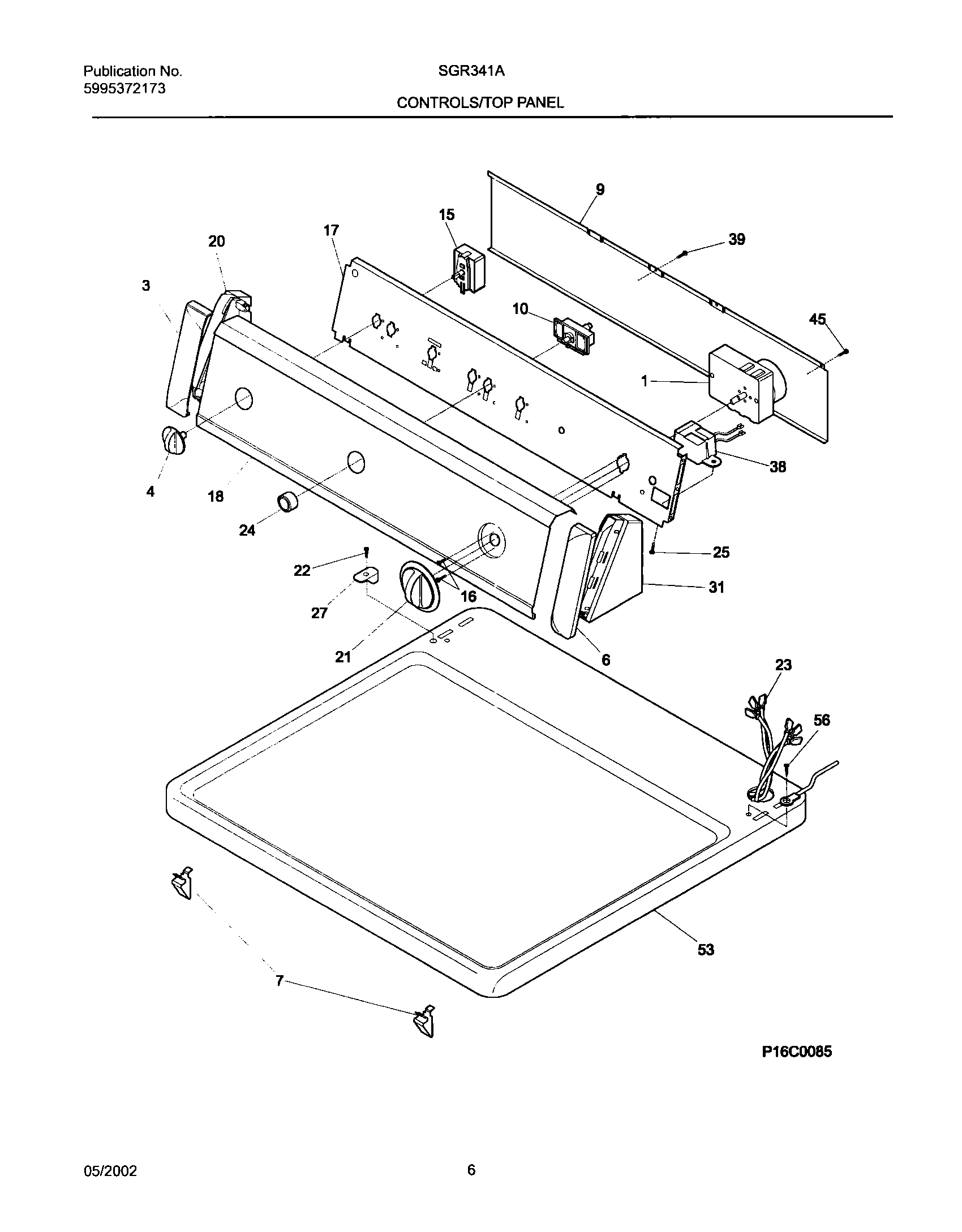

SGR341AQ1 07 – CONTROL PANEL

Products

Position	Product
1	131583801 Frigidaire Dryer P-1 Timer
3	WCI 131122613
4	131858004 Frigidaire Control Knob, White
6	WCI 131122603
7	3205821 Frigidaire Clip
9	WCI 134088700
10	131469000 Frigidaire Switch-Push/Start P1
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	Panel,console ,bisque
20	WCI 131122713
21	Knob,timer ,bisque/brown
22	WCI 131266300
23	Wiring Harness
24	Button,start switch ,bisque ,push type
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 131122703
38	WCI 5303210285
39	131243700 Frigidaire Screw
45	131205100 Frigidaire Screw
53	Panel,dryer top ,bisque ,console mtg
56	131243800 Frigidaire Screw
