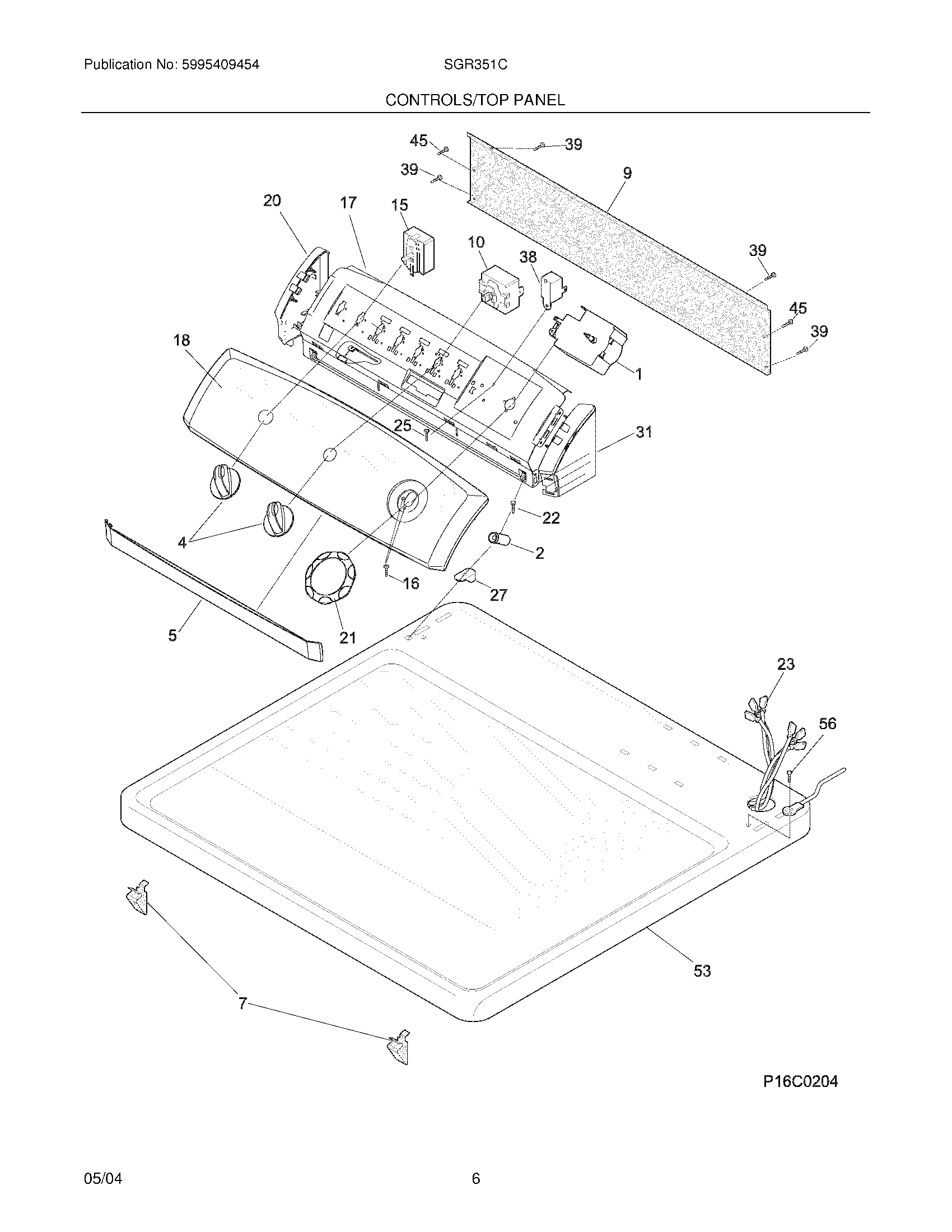

SGR351CQ0 07 – CONTROLS/TOP PANELadmin2025-04-26T10:24:32+00:00SGR351CQ0 07 – CONTROLS/TOP PANEL
Products
| Position | Product |
|---|
| NI | 134101400 Frigidaire Dryer Kit Terminal Block |
| 1 | 131583801 Frigidaire Dryer P-1 Timer |
| 2 | WCI 134096100 |
| 4 | Knob,rotary ,bisque |
| 5 | Closure,console trim ,bisque ,front |
| 7 | 3205821 Frigidaire Clip |
| 9 | WCI 131992900 |
| 10 | 134398300 Frigidaire Washer Dryer Turn-to-Start Switch |
| 15 | WCI 131048100 |
| 16 | 218359202 Frigidaire Refrigerator Screw |
| 17 | Bracket,control mtg. |
| 18 | WCI 134327100 |
| 20 | End Cap,bisque ,LH |
| 21 | Knob,timer ,bisque/brown |
| 22 | WCI 131266330 |
| 23 | WCI 134005300 |
| 25 | 5303015671 Frigidaire Bracket Termination Screw |
| 27 | CLIP-CONSOLE MTG |
| 31 | End Cap,bisque ,RH |
| 34 | 131243700 Frigidaire Screw |
| 38 | WCI 5303210285 |
| 39 | 131168200 Frigidaire Dryer Screw |
| 45 | 131205100 Frigidaire Screw |
| 53 | Panel,dryer top ,bisque ,console mtg |
| 56 | 131243800 Frigidaire Screw |
