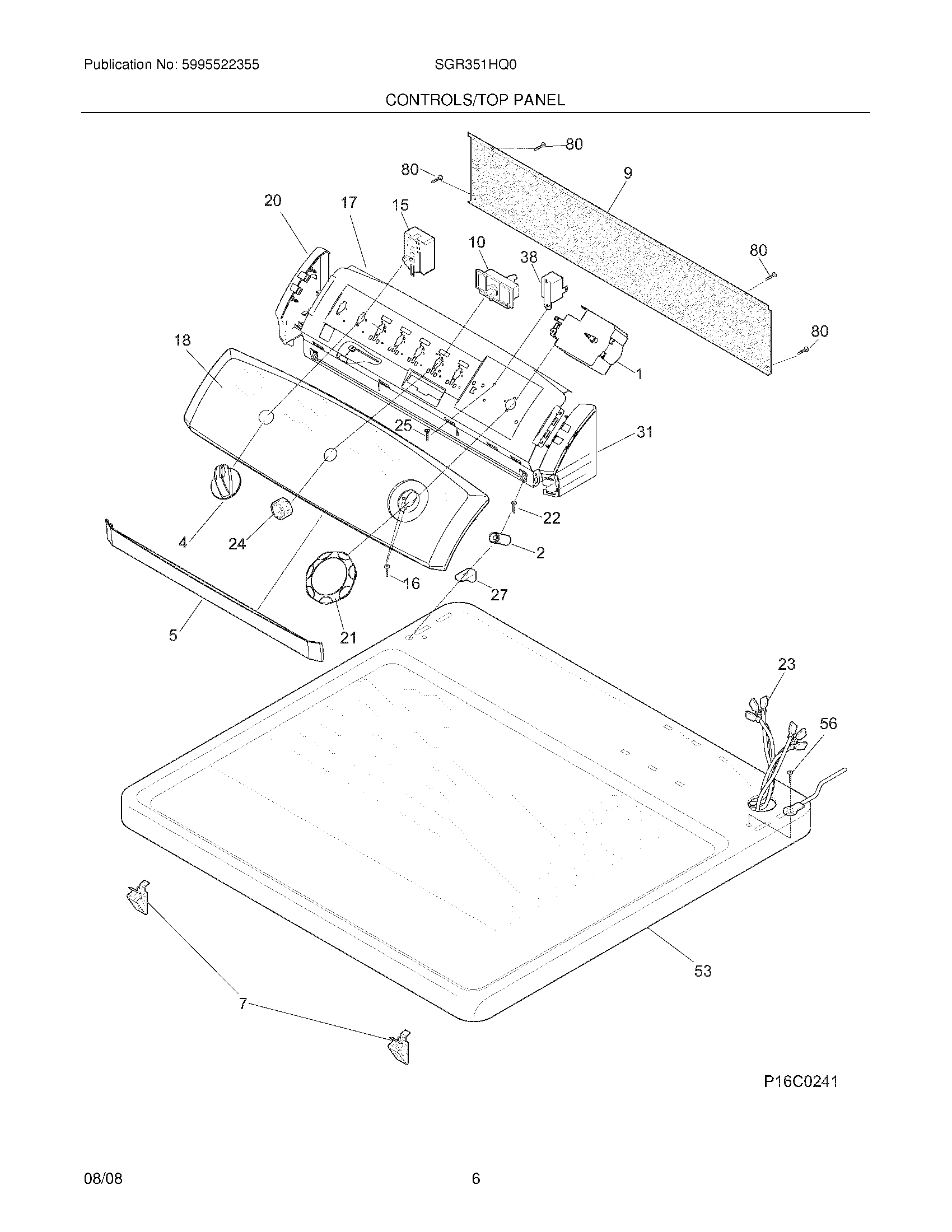

SGR351HQ0 07 – CONTROLS/TOP PANELadmin2025-04-26T10:24:29+00:00SGR351HQ0 07 – CONTROLS/TOP PANEL
Products
| Position | Product |
|---|
| 1 | 131583801 Frigidaire Dryer P-1 Timer |
| 2 | WCI 134096100 |
| 4 | WCI 134844411 |
| 5 | Closure,console trim ,bisque ,front |
| 7 | 3205821 Frigidaire Clip |
| 9 | WCI 131992900 |
| 10 | 131469000 Frigidaire Switch-Push/Start P1 |
| 15 | WCI 134398500 |
| 16 | 218359202 Frigidaire Refrigerator Screw |
| 17 | WCI 131993040 |
| 18 | WCI 137002300 |
| 20 | End Cap,bisque ,LH |
| 21 | Knob,timer ,bisque/brown |
| 22 | WCI 131266330 |
| 23 | WCI 134005300 |
| 24 | Button,start switch ,bisque ,push type |
| 25 | 5303015671 Frigidaire Bracket Termination Screw |
| 27 | CLIP-CONSOLE MTG |
| 31 | End Cap,bisque ,RH |
| 38 | WCI 5303210285 |
| 53 | Panel,dryer top ,bisque ,console mtg |
| 56 | 131243800 Frigidaire Screw |
| 80 | 131168200 Frigidaire Dryer Screw |
