SGS395XX0 03 – EXTERNAL OVEN
Written by
in

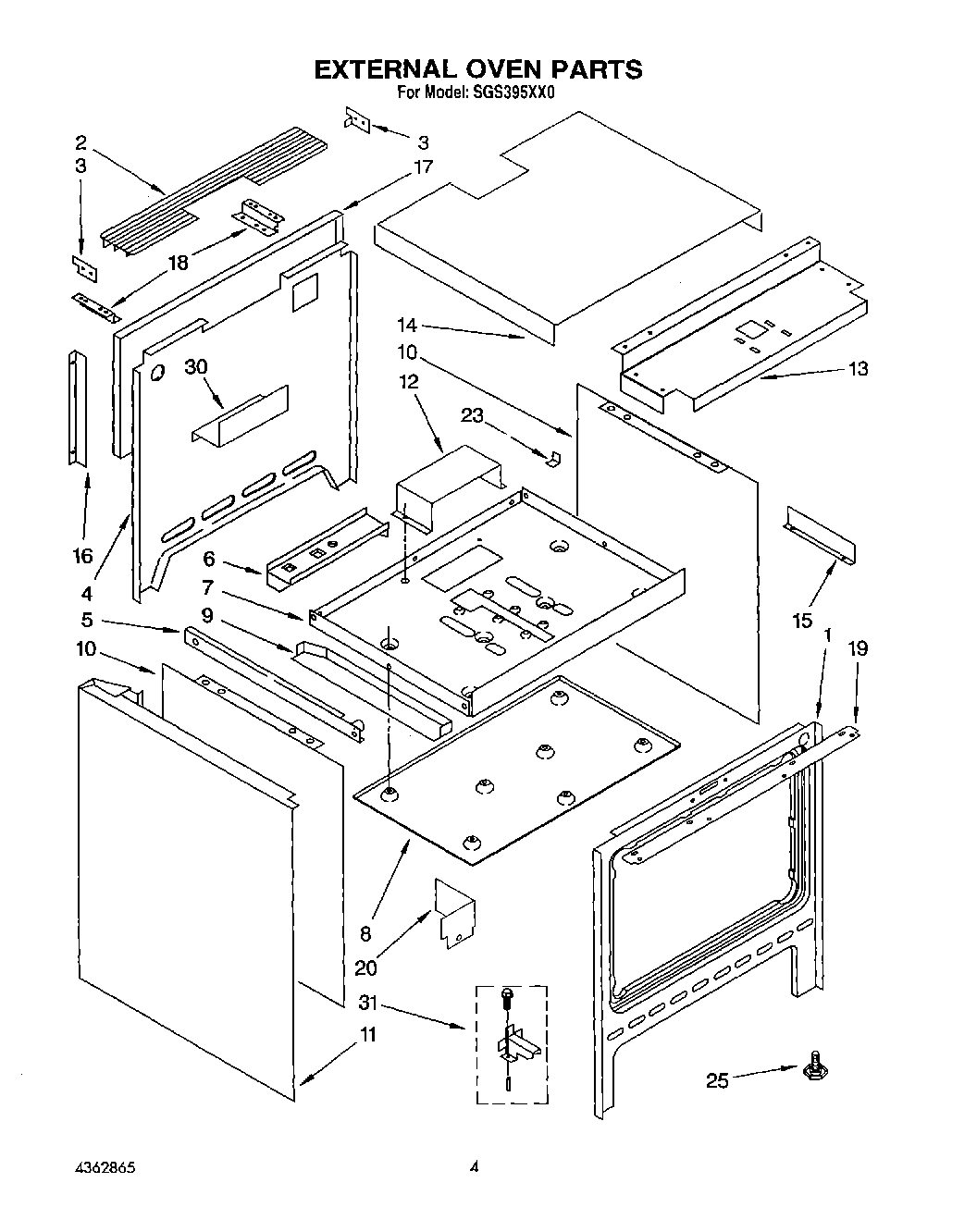

SGS395XX0 03 – EXTERNAL OVEN
Products
Position
Product
1
Frame, Front Not Serviceable
2
Backrail, Low
3
End Cap (Right Hand)
3
End Cap (Left Hand)
4
Retainer, Rear Insulation
5
track, storage drawer (right side)
5
track, storage drawer (left side)
6
shelf, gas valve
6
Nut, 6-32 (6)
6
WP486754 Whirlpool Compactor Screw
7
retainer, bottom insulation
8
Heat Shield,
9
brace, bottom (l.h.)
9
Brace, Bottom (R.H.)
10
Retainer, Insulation (2)
11
Panel, End (2) Front
12
Retainer, Ignitor
13
Retainer, Top Front Insulation
14
Retainer, Top Back
15
Heat Shield, Clock
16
Shield, Heat Clock
17
Heat Shield
18
Support, Low Rail (Right Hand)
18
Support, Low Rail (Left Hand)
19
Filler, Front Frame
20
Plate, Cover
23
WP965173 Whirlpool Dishwasher Screw
23
Bracket, Gas Valve (2)
23
WP488130 Whirlpool Air Conditioner Nut
25
leg, leveling (4)
30
cover, electrical
31
Anti-Tip Kit
←
