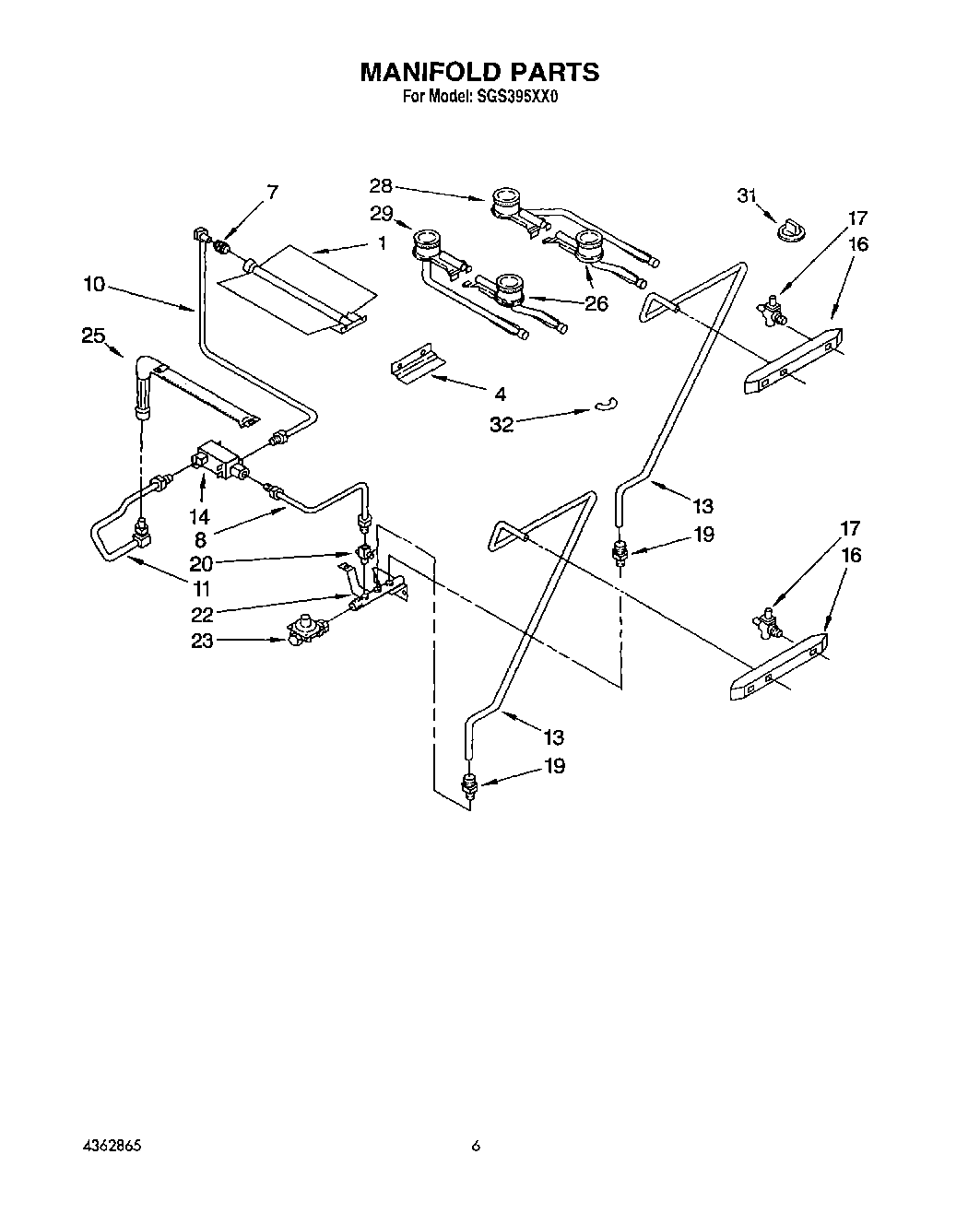

SGS395XX0 04 – MANIFOLD

Products

PositionProduct
1Burner, Broiler
1Nut, 6-32 (6)
4Support, Burner Mounting
4Screw (3)
7Burner, Front (2)
7Natural Gas No. 51.
7LP Gas No. 58
8Tubing, (Inlet To Gas Valve)
10Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11Nut, Lock
11hood & tubing assembly (gas valve to lower oven burner)
13Tubing (Inlet To Manifold) (Left Hand)
13Valve, Top Burner (4)
14Valve, Dual Gas Valve
16Manifold
17Valve, Top Burner (4)
19Fitting
20Valve, Shut Off
22Inlet, Gas
23Regulator, Pressure
25Oven Burner, Lower
26Top Burner, Front (2)
28Top Burner, R.R.
29Top Burner, L.R.
31Knob, Top Burner (4)
32Elbow, Manifold
